DIODESDatasheet (PDF)

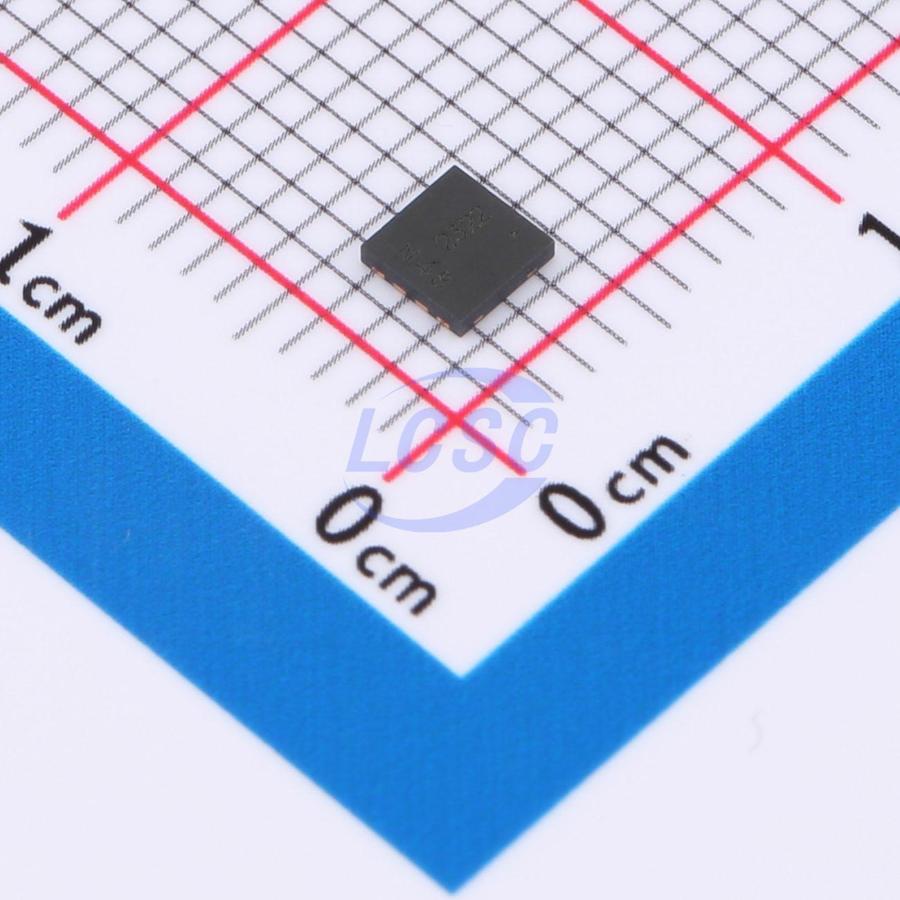

DMG4800LFG-7
N-Channel 30V 7.44A 0.94W Surface Mount UDFN3030-8
UDFN3030-8ROHS3 CompliantActive
MOSFET N-CH 30V 7.44A UDFN3030-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMG4800LFG-7
- Store part #
- C5157766
- Package / case
- UDFN3030-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C5157766
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.95 | ₹50.95 |
| 10+ | ₹50.30 | ₹503.00 |
| 30+ | ₹49.88 | ₹1,496.40 |
| 100+ | ₹49.44 | ₹4,944.00 |
1 × ₹50.95
₹50.95
excl. GST
₹60.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMG4800LFG-7
₹50.95 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 128pF
- Ciss-Input Capacitance
- 798pF
- Pd - Power Dissipation
- 940mW
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 7.44A
- Reverse Transfer Capacitance (Crss)
- 122pF
- RDS(on)
- 24mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.47nC@5V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
D3R6N30 is an N-channel enhancement-mode MOSFET. Advanced technology and cell structure give this product low on-resistance, excellent switching performance, and high avalanche breakdown voltage. It is well-suited for power management applications in UPS and inverter systems.
Key features
- Low On-Resistance
- Low Input Capacitance Fast Switching Speed
- Low Input/Output Leakage
- Lead Free By Design/RoHS Compliant
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
