DIODESDatasheet (PDF)

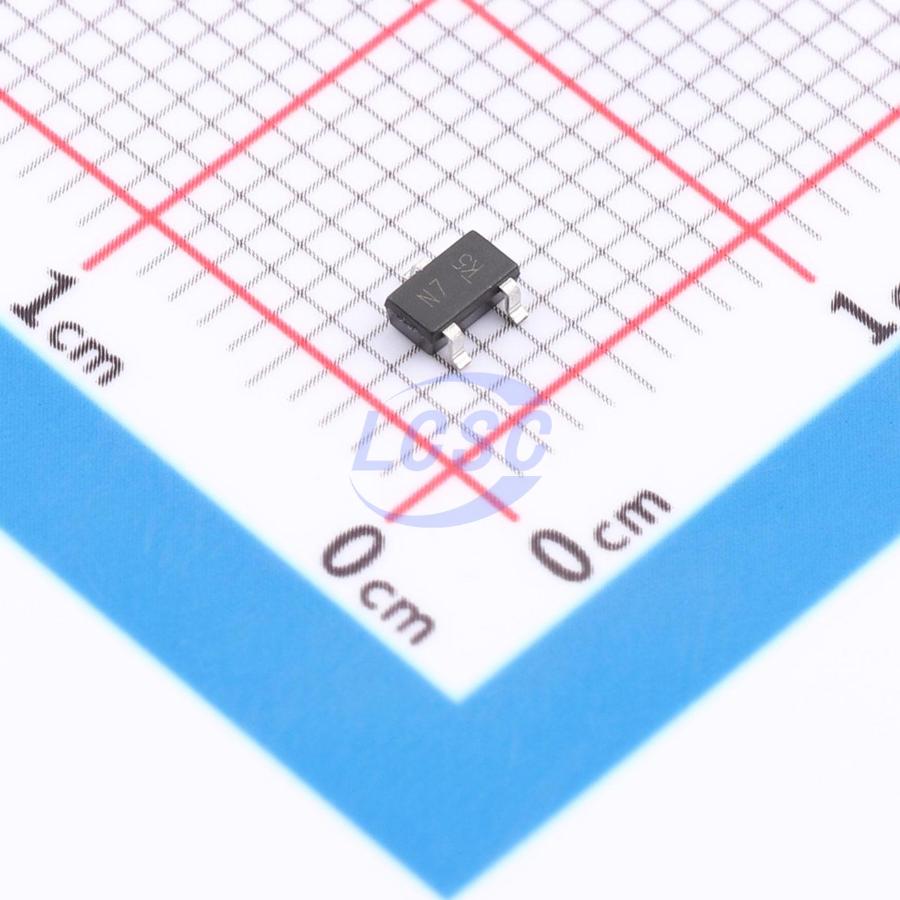

DMN1019USNQ-7
12V 9.3A 1.2W 41mΩ@1.2V N-Channel SC-59-3 Single FETs, MOSFETs RoHS
SC-59-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN1019USNQ-7
- Store part #
- C19949297
- Package / case
- SC-59-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C19949297
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.89 | ₹59.89 |
| 10+ | ₹58.37 | ₹583.70 |
| 30+ | ₹57.29 | ₹1,718.70 |
| 100+ | ₹56.20 | ₹5,620.00 |
1 × ₹59.89
₹59.89
excl. GST
₹70.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN1019USNQ-7
₹59.89 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Output Capacitance(Coss)
- 396pF
- Current - Continuous Drain(Id)
- 9.3A
- Ciss-Input Capacitance
- 2.426nF
- Pd - Power Dissipation
- 1.2W
- RDS(on)
- 41mΩ@1.2V
- Gate Charge(Qg)
- 50.6nC@8V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.062 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 qualified with Production Part Approval Process (PPAP) support, making it ideal for: - Load switching - DC-DC converters - Power management functions
Applications
- Load Switch - DC-DC Converter - Power Management Function
Key features
- Low on-resistance
- ESD-protected gate
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "green" device
