DIODESDatasheet (PDF)

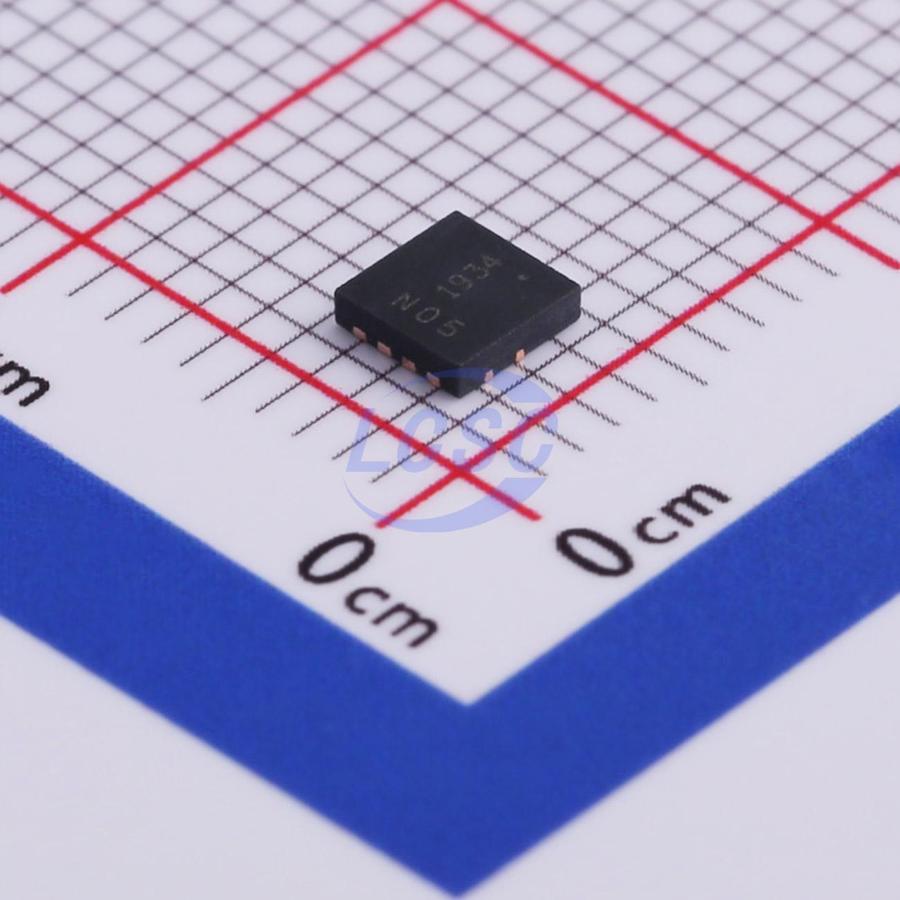

DMN2005UFG-13
N-Channel 20V 50A 2.27W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET N-CH 20V 50A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2005UFG-13
- Store part #
- C460993
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
129 in stock
#C460993
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.76 | ₹91.76 |
| 10+ | ₹74.48 | ₹744.80 |
| 30+ | ₹65.85 | ₹1,975.50 |
| 100+ | ₹57.22 | ₹5,722.00 |
| 500+ | ₹52.03 | ₹26,015.00 |
| 1,000+ | ₹49.44 | ₹49,440.00 |
1 × ₹91.76
₹91.76
excl. GST
₹108.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2005UFG-13
₹91.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 546pF
- Ciss-Input Capacitance
- 6.495nF
- Pd - Power Dissipation
- 2.27W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 477pF
- RDS(on)
- 4.6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68.8nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.172 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power Management Functions
- DC-DC Converters
Key features
- Low RDS(ON) – ensures on state losses are minimized
- Small form factor thermally efficient package enables higher density end products
- Occupies just 33% of the board area occupied by SO-8 enabling smaller end product
- 100% UIS & Rg tested
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (DMN2005UFGQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN3008SFG-13#C7264636DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 35 | ₹297.70 · 35 in stock | View |
 | DMN3008SFGQ-7#C5248857DIODES · PowerDI-3333-8 | DIODES | PowerDI-3333-8 | 5 | ₹75.85 · 5 in stock | View |
 | CSD17309Q3#C485528TI · VSON-CLIP-8(3.3x3.3) | TI | VSON-CLIP-8(3.3x3.3) | 100 | ₹119.85 · 100 in stock | View |
 | DMN3008SFG-7#C384563DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 18,330 | ₹42.81 · 18,330 in stock | View |
 | WSD3070DN33#C148387Winsok Semicon · DFN-8(3.3x3.3) | Winsok Semicon | DFN-8(3.3x3.3) | 1,917 | ₹55.59 · 1,917 in stock | View |
