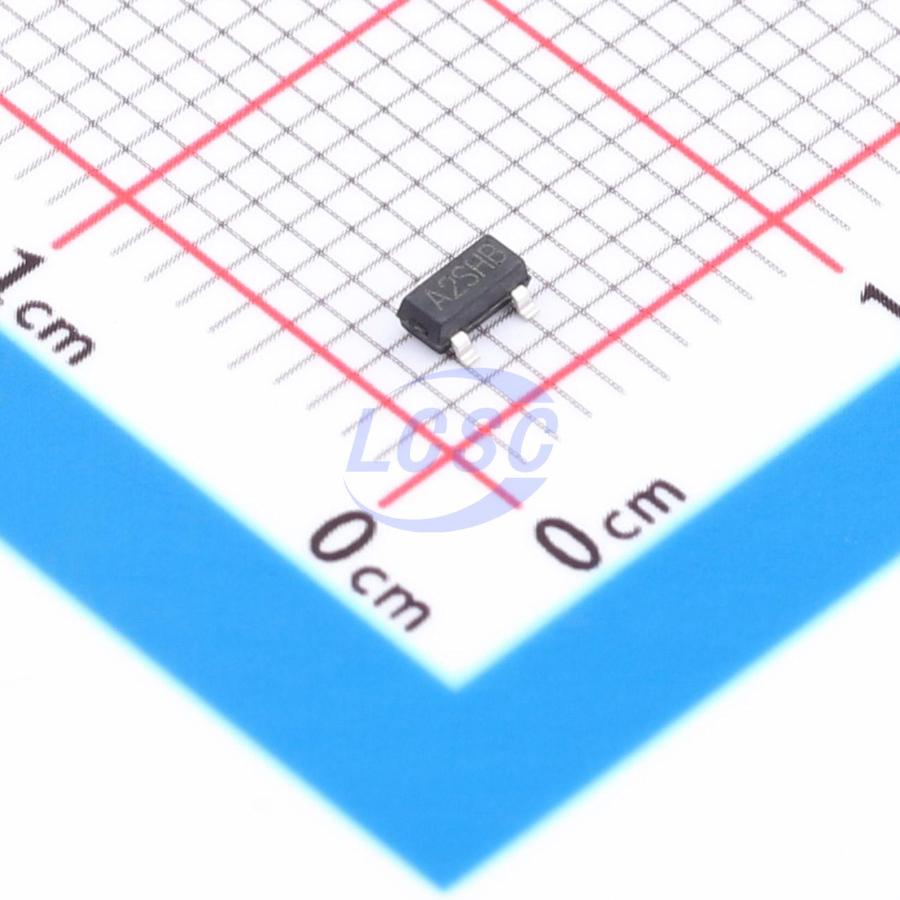

HXY MOSFETDatasheet (PDF)
DMN2050LQ-7-HXY
20V 3A 900mW 23mΩ@4.5V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMN2050LQ-7-HXY
- Store part #
- C54582407
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C54582407
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.19 | ₹195.95 |
| 50+ | ₹31.38 | ₹1,569.00 |
| 150+ | ₹28.03 | ₹4,204.50 |
| 500+ | ₹23.87 | ₹11,935.00 |
| 3,000+ | ₹19.69 | ₹59,070.00 |
| 6,000+ | ₹18.57 | ₹1,11,420.00 |
5 × ₹39.19
₹195.95
excl. GST
₹231.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2050LQ-7-HXY
₹195.95 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3A
- Output Capacitance(Coss)
- 48pF
- Pd - Power Dissipation
- 900mW
- RDS(on)
- 23mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.9nC@4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
DMN2050LQ-7 utilizes advanced trench technology to deliver excellent on-resistance, low gate charge, and operation at gate voltages as low as 2.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage VDS = 20V, drain current ID = 3.0A
- Drain-source on-resistance RDS(ON) < 35Ω at gate-source voltage VGS = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | Si2312BDS-T1-E3-HXY#C22366687HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 3,800 | ₹8.67 · 3,800 in stock | View |
 | Si2312BDS-T1-GE3-HXY#C22366688HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 30 | ₹5.53 · 30 in stock | View |
 | Si2374DS-T1-GE3-HXY#C22366689HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 55 | ₹12.48 · 55 in stock | View |
 | HXY2302AI#C3033385HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 2,700 | ₹2.86 · 2,700 in stock | View |
 | SI2374DS-T1-BE3-HXY#C54582406HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 85 | ₹20.68 · 85 in stock | View |
