DIODESDatasheet (PDF)

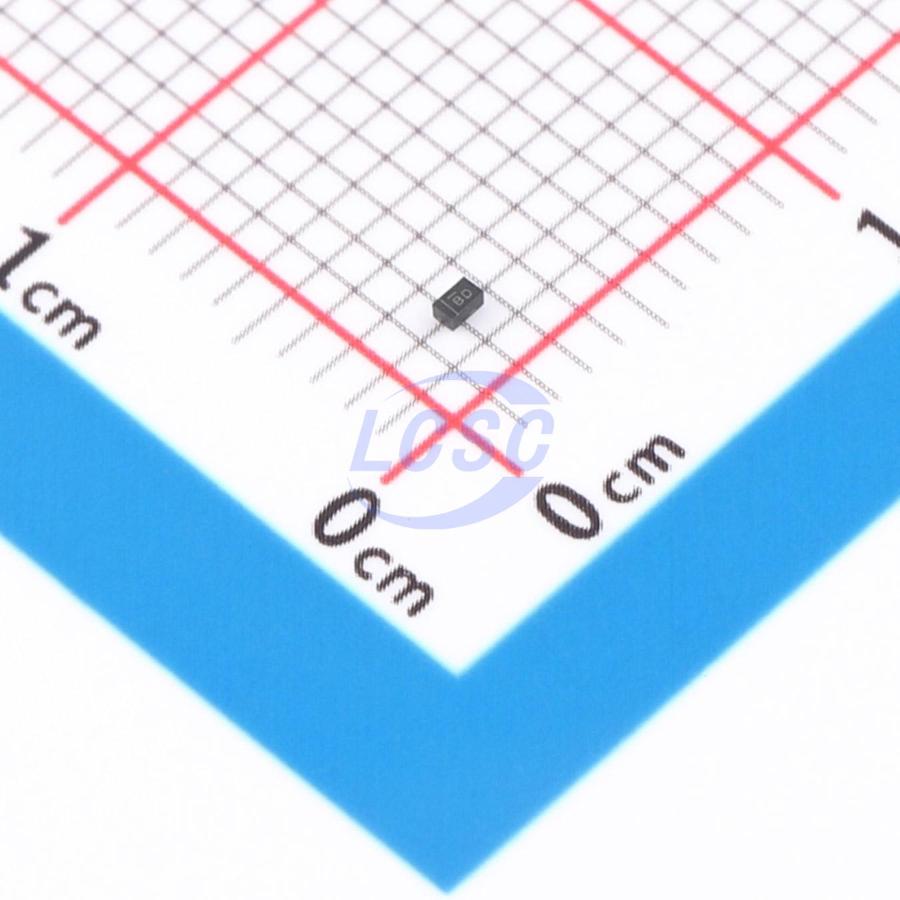

DMN2710UFBQ-7
720mW 20V 1.3A 130mΩ@4.5V 1 N-channel N-Channel X1-DFN1006-3 Single FETs, MOSFETs RoHS
X1-DFN1006-3ROHS CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN2710UFBQ-7
- Store part #
- C29339511
- Package / case
- X1-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
111 in stock
#C29339511
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.36 | ₹83.36 |
| 10+ | ₹67.05 | ₹670.50 |
| 30+ | ₹60.08 | ₹1,802.40 |
| 100+ | ₹51.37 | ₹5,137.00 |
| 500+ | ₹47.67 | ₹23,835.00 |
| 1,000+ | ₹45.27 | ₹45,270.00 |
1 × ₹83.36
₹83.36
excl. GST
₹98.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN2710UFBQ-7
₹83.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 13pF
- Ciss-Input Capacitance
- 42pF
- Pd - Power Dissipation
- 720mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.3A
- Reverse Transfer Capacitance (Crss)
- 6.5pF
- RDS(on)
- 130mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 600pC
- Vgs
- ±6V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
This MOSFET is designed to minimize on-resistance while maintaining excellent switching performance, making it an ideal choice for high-efficiency power management applications.
Applications
- Portable electronic devices
Key features
- Footprint of only 0.6mm², 13x smaller than SOT23 package
- Low gate threshold voltage
- Fast switching speed
- ESD-protected gate
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free "Green" device
- Suitable for automotive applications requiring specific change control: AEC-Q101 qualified, PPAP capable, manufactured in IATF 16949 certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN108N3T5G#C5273740LRC · SOT-883 | LRC | SOT-883 | 12,340 | ₹6.01 · 12,340 in stock | View |
 | SSM3K56ACT,L3F#C146308TOSHIBA · SOT-883-3 | TOSHIBA | SOT-883-3 | 8,080 | ₹24.75 · 8,080 in stock | View |
 | DMN2451UFB4Q-7B#C5248854DIODES · X2-DFN1006-3 | DIODES | X2-DFN1006-3 | 83 | ₹65.41 · 83 in stock | View |
 | WSD1614DN106#C2880520Winsok Semicon · DFN1006-3L | Winsok Semicon | DFN1006-3L | 10,000 | ₹9.75 · 10,000 in stock | View |
 | PMZ390UN,315#C458236Nexperia · SOT-883 | Nexperia | SOT-883 | 9,455 | ₹19.49 · 9,455 in stock | View |
