DIODESDatasheet (PDF)

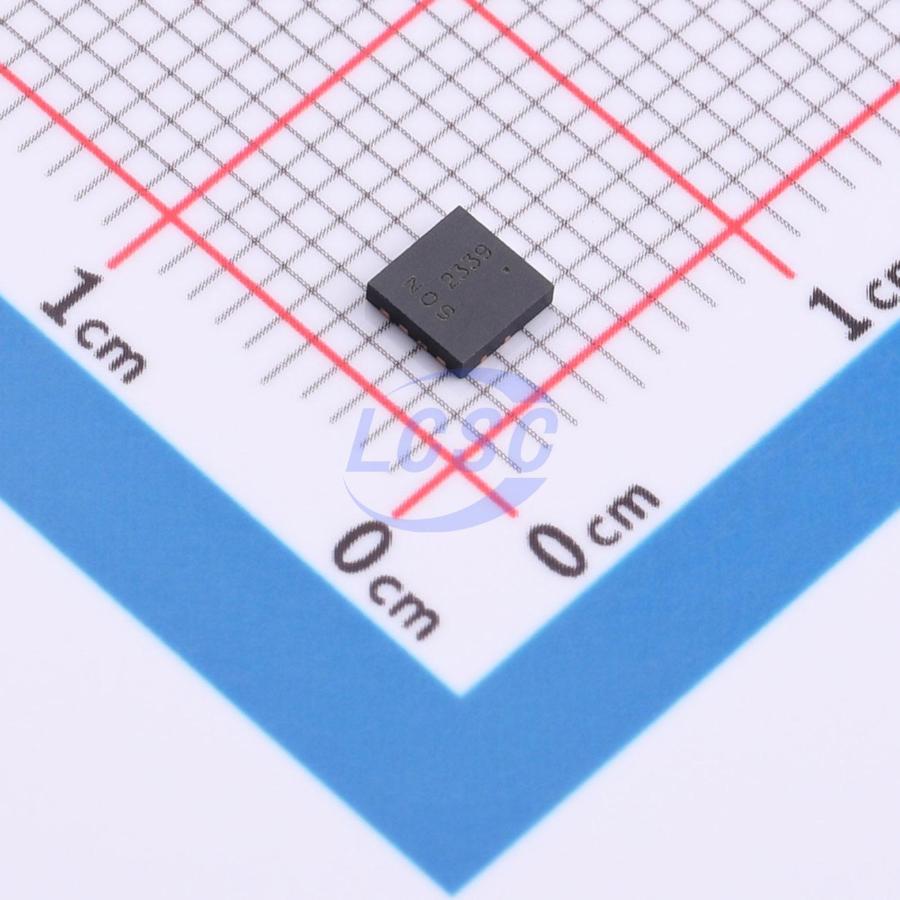

DMN3009SFGQ-7
900mW 30V 45A 4mΩ@10V 1 N-channel N-Channel PowerDI-3333-8 Single FETs, MOSFETs
PowerDI-3333-8RoHSActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3009SFGQ-7
- Store part #
- C5248858
- Package / case
- PowerDI-3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
72 in stock
#C5248858
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹324.56 | ₹324.56 |
| 10+ | ₹277.23 | ₹2,772.30 |
| 30+ | ₹247.71 | ₹7,431.30 |
| 100+ | ₹217.53 | ₹21,753.00 |
| 500+ | ₹203.85 | ₹1,01,925.00 |
| 1,000+ | ₹197.99 | ₹1,97,990.00 |
1 × ₹324.56
₹324.56
excl. GST
₹382.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMN3009SFGQ-7
₹324.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 315pF
- Ciss-Input Capacitance
- 2nF
- Pd - Power Dissipation
- 900mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 45A
- Reverse Transfer Capacitance (Crss)
- 248pF
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.216 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with the AEC-Q101 standard with PPAP support, making it ideal for: power management functions, DC-DC converters, and battery
Applications
- Power management functions
- DC-DC converter
- Battery
Key features
- Low on-resistance
- Low input capacitance
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free "green" device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, manufactured in IATF 16949 certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN3009LFVWQ-7#C6832202DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 3 | ₹82.97 · 3 in stock | View |
 | YJQ50N03B#C919567YANGJIE · DFN3333-8L | YANGJIE | DFN3333-8L | 1,080 | ₹30.06 · 1,080 in stock | View |
 | FH3060G6#C2929018XIN FEI HONG · DFN-8-EP(3.3x3.3) | XIN FEI HONG | DFN-8-EP(3.3x3.3) | 3,655 | ₹16.10 · 3,655 in stock | View |
 | HKTQ80N03#C5364303Guangdong Hottech · PDFN3333-8 | Guangdong Hottech | PDFN3333-8 | 4,250 | ₹16.05 · 4,250 in stock | View |
 | WNM3057-8/TR#C2939851WILLSEMI · PDFN3333-8L | WILLSEMI | PDFN3333-8L | 2,088 | ₹72.42 · 2,088 in stock | View |
