HXY MOSFETDatasheet (PDF)

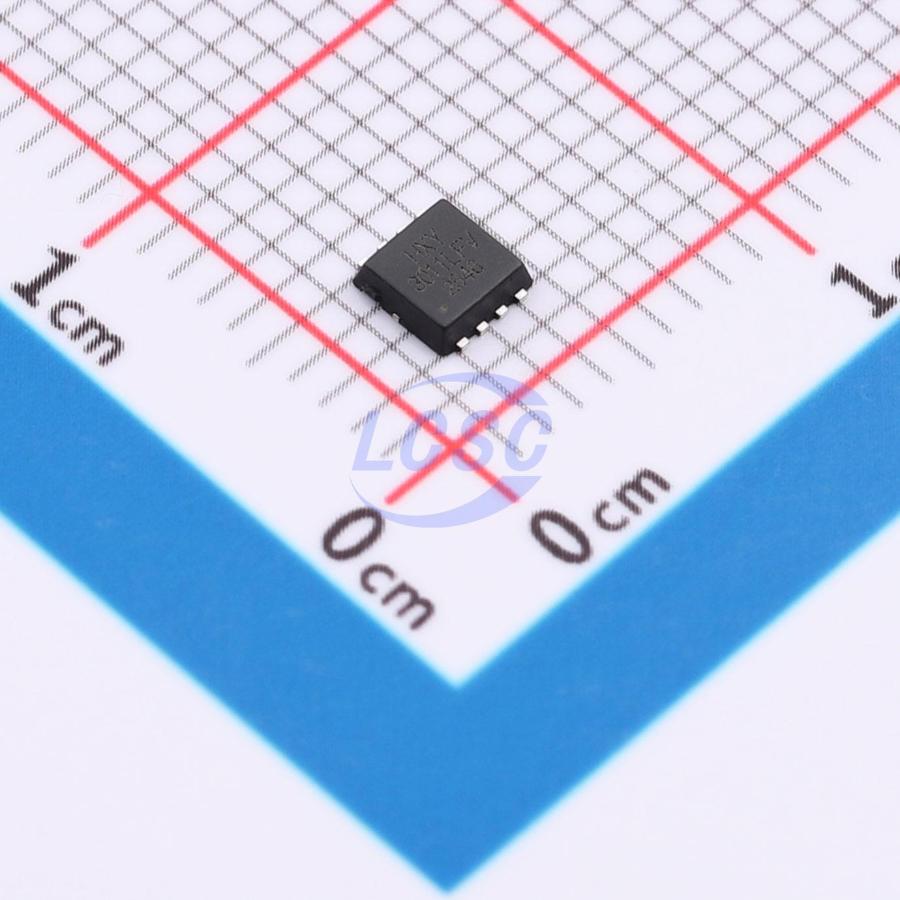

DMN3011LFVWQ-7-HXY
37.5W 30V 35A 7.5mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMN3011LFVWQ-7-HXY
- Store part #
- C53263186
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C53263186
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.56 | ₹272.80 |
| 50+ | ₹43.61 | ₹2,180.50 |
| 150+ | ₹39.09 | ₹5,863.50 |
| 500+ | ₹33.30 | ₹16,650.00 |
| 2,500+ | ₹30.72 | ₹76,800.00 |
| 5,000+ | ₹29.00 | ₹1,45,000.00 |
5 × ₹54.56
₹272.80
excl. GST
₹321.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMN3011LFVWQ-7-HXY
₹272.80 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 131pF
- Ciss-Input Capacitance
- 940pF
- Pd - Power Dissipation
- 37.5W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 109pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.068 g
