DIODESDatasheet (PDF)

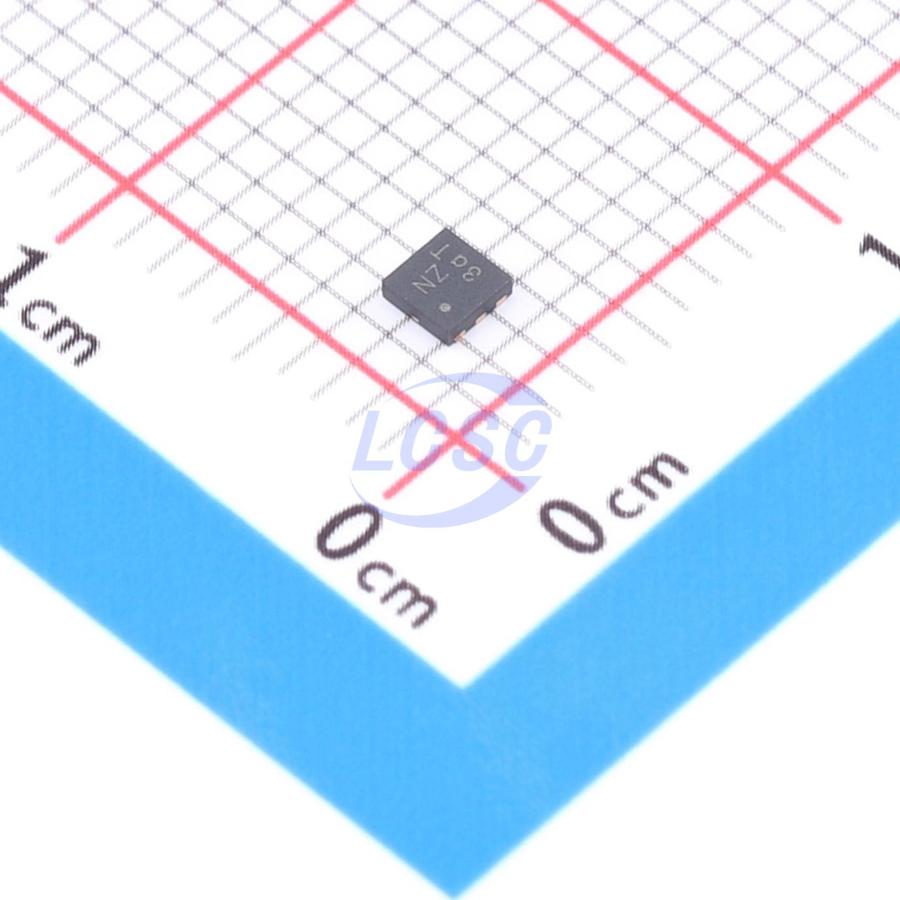

DMN3016LFDFQ-7
30V 10A 730mW 16mΩ@4.5V 1 N-channel UDFN2020-6 Single FETs, MOSFETs
UDFN2020-6RoHSActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3016LFDFQ-7
- Store part #
- C5248859
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5248859
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.29 | ₹119.29 |
| 10+ | ₹117.15 | ₹1,171.50 |
| 30+ | ₹115.86 | ₹3,475.80 |
| 100+ | ₹114.35 | ₹11,435.00 |
1 × ₹119.29
₹119.29
excl. GST
₹140.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3016LFDFQ-7
₹119.29 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 15pF
- Pd - Power Dissipation
- 730mW
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 16mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.108 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with AEC-Q101 and is supported by PPAP, making it ideal for the following applications: - Battery management - Power management - DC-DC converters
Applications
- Battery management applications
- Power management functions
- DC-DC converters
Key features
- 0.6mm height — suitable for slim applications
- 4mm2 PCB footprint
- Low gate threshold voltage
- Low on-resistance
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "Green" device
- Suitable for automotive applications requiring specific change control; product is AEC-Q101 qualified, PPAP capable, and manufactured in an IATF 16949 certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN3016LFDE-13#C5245301DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 410 | ₹32.53 · 410 in stock | View |
 | DMN3016LFDF-7#C5245302DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 500 | ₹75.50 · 500 in stock | View |
 | CJMN3010#C19267752JSCJ · DFNWB2x2-6L | JSCJ | DFNWB2x2-6L | 5,810 | ₹18.43 · 5,810 in stock | View |
 | LN3424DT2AG#C976212LRC · DFN2020-6S | LRC | DFN2020-6S | 10 | ₹17.21 · 10 in stock | View |
 | DMN3020UFDF-7#C5125763DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 1,189 | ₹74.38 · 1,189 in stock | View |
