HXY MOSFETDatasheet (PDF)

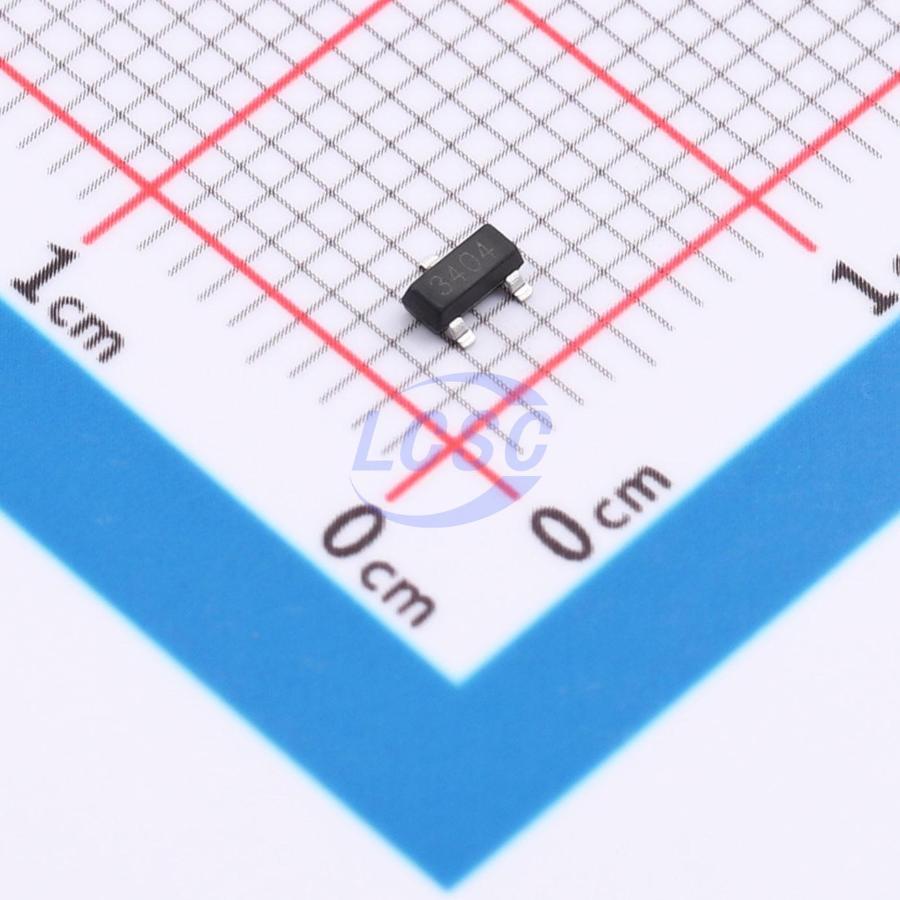

DMN3023L-13-HXY
30V 5.8A 1W 22mΩ@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMN3023L-13-HXY
- Store part #
- C53263161
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C53263161
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.64 | ₹113.20 |
| 50+ | ₹18.69 | ₹934.50 |
| 150+ | ₹16.72 | ₹2,508.00 |
| 500+ | ₹15.25 | ₹7,625.00 |
| 3,000+ | ₹12.58 | ₹37,740.00 |
| 6,000+ | ₹12.00 | ₹72,000.00 |
5 × ₹22.64
₹113.20
excl. GST
₹133.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3023L-13-HXY
₹113.20 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 5.8A
- Pd - Power Dissipation
- 1W
- RDS(on)
- 22mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5nC
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | Si2338DS-T1-GE3-HXY#C22366716HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 50 | ₹7.99 · 50 in stock | View |
 | DMN3023L-7-HXY#C53262970HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 40 | ₹13.11 · 40 in stock | View |
 | DMN3033LSN-7-HXY#C53262976HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 125 | ₹14.30 · 125 in stock | View |
 | DMN3032L-13-HXY#C53263157HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 185 | ₹12.18 · 185 in stock | View |
 | DMN3032LQ-13-HXY#C53263158HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 185 | ₹19.08 · 185 in stock | View |
