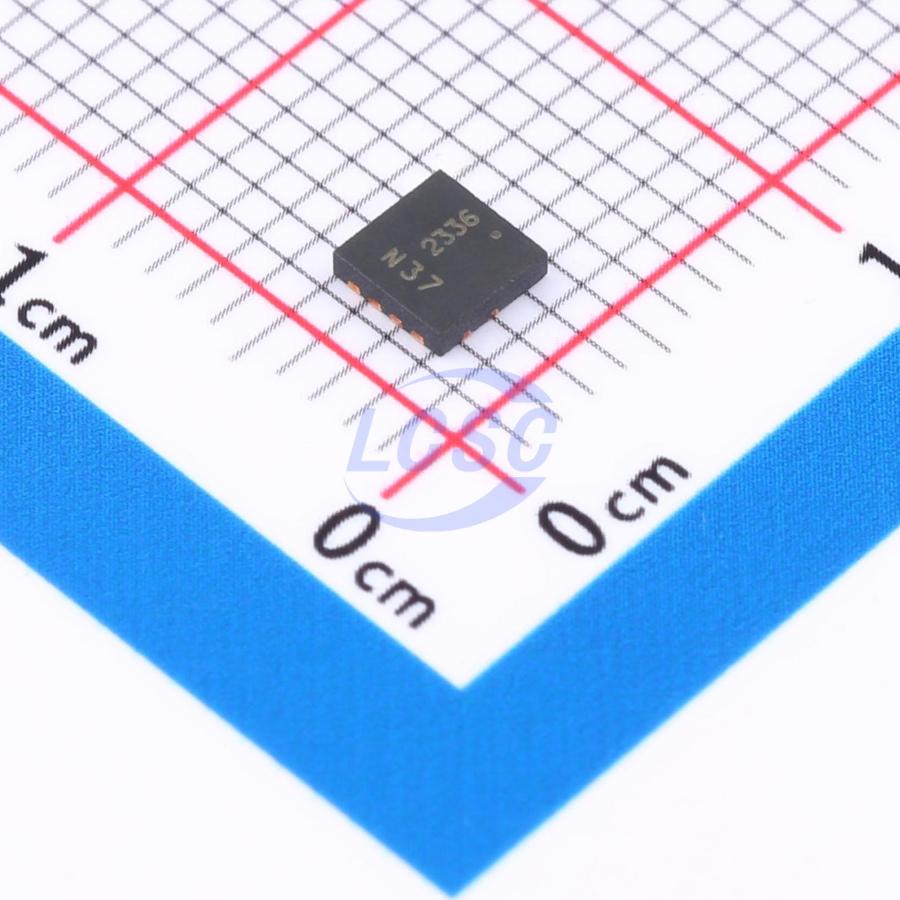

DMN3027LFG-7
30V 5.3A 1W 18.6mΩ 1 N-channel PowerDI3333-8 Single FETs, MOSFETs RoHS
PowerDI3333-8ROHS3 CompliantActive
MOSFET N-CH 30V 5.3A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3027LFG-7
- Store part #
- C5245312
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94 in stock
#C5245312
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.69 | ₹121.69 |
| 10+ | ₹97.80 | ₹978.00 |
| 30+ | ₹85.84 | ₹2,575.20 |
| 100+ | ₹73.89 | ₹7,389.00 |
| 500+ | ₹66.72 | ₹33,360.00 |
| 1,000+ | ₹63.03 | ₹63,030.00 |
1 × ₹121.69
₹121.69
excl. GST
₹143.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMN3027LFG-7
₹121.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.3A
- Ciss-Input Capacitance
- 580pF
- Pd - Power Dissipation
- 1W
- RDS(on)
- 18.6mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.103 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight illumination
- DC-DC converter
- Power management function
Key features
- Low RDS(ON) — minimizes on-state losses
- Compact, thermally efficient package for higher-density end products
- Occupies only 33% of SO-8 package PCB footprint, enabling smaller end products
- 100% UIS (avalanche) rated tested
- 100% Rg tested
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
- AEC-Q101 qualified for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN3029LFG-13#C397944DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 20 | ₹37.14 · 20 in stock | View |
 | SI7326DN-T1-GE3#C727506VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 1,245 | ₹42.57 · 1,245 in stock | View |
 | AGM18N10AP#C7509649AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 17,900 | ₹31.39 · 17,900 in stock | View |
| DMN3025LFG-7#C5245310DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 5 | ₹33.99 · 5 in stock | View | |
