HXY MOSFETDatasheet (PDF)

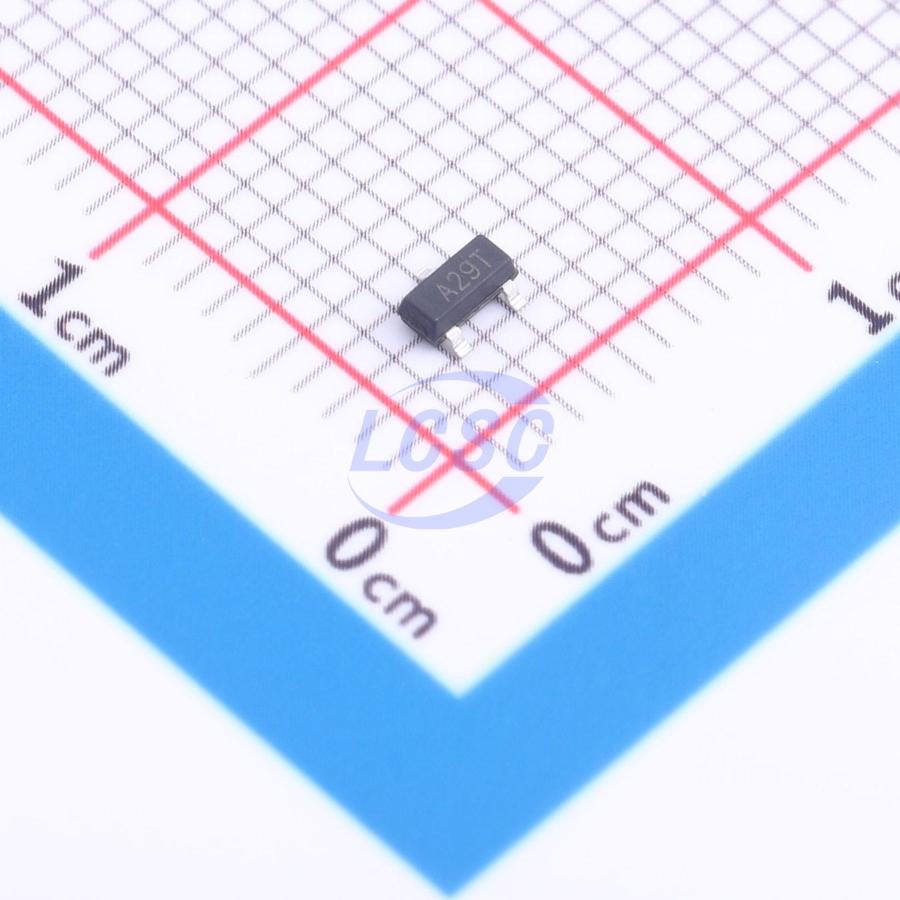

DMN3053L-13-HXY
30V 5A 1W 33mΩ@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMN3053L-13-HXY
- Store part #
- C54582808
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C54582808
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.72 | ₹163.60 |
| 50+ | ₹26.21 | ₹1,310.50 |
| 150+ | ₹23.42 | ₹3,513.00 |
| 500+ | ₹19.94 | ₹9,970.00 |
| 3,000+ | ₹16.44 | ₹49,320.00 |
| 6,000+ | ₹15.51 | ₹93,060.00 |
5 × ₹32.72
₹163.60
excl. GST
₹193.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3053L-13-HXY
₹163.60 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5A
- Output Capacitance(Coss)
- 49pF
- Pd - Power Dissipation
- 1W
- RDS(on)
- 33mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.6nC@4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
DMN3053L - 13 utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 2.5V. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage V<sub>DS</sub> = 30V, drain current I<sub>D</sub> = 5A
- On-resistance R<sub>DS(ON)</sub> < 42mΩ at gate-source voltage V<sub>GS</sub> = 10V
