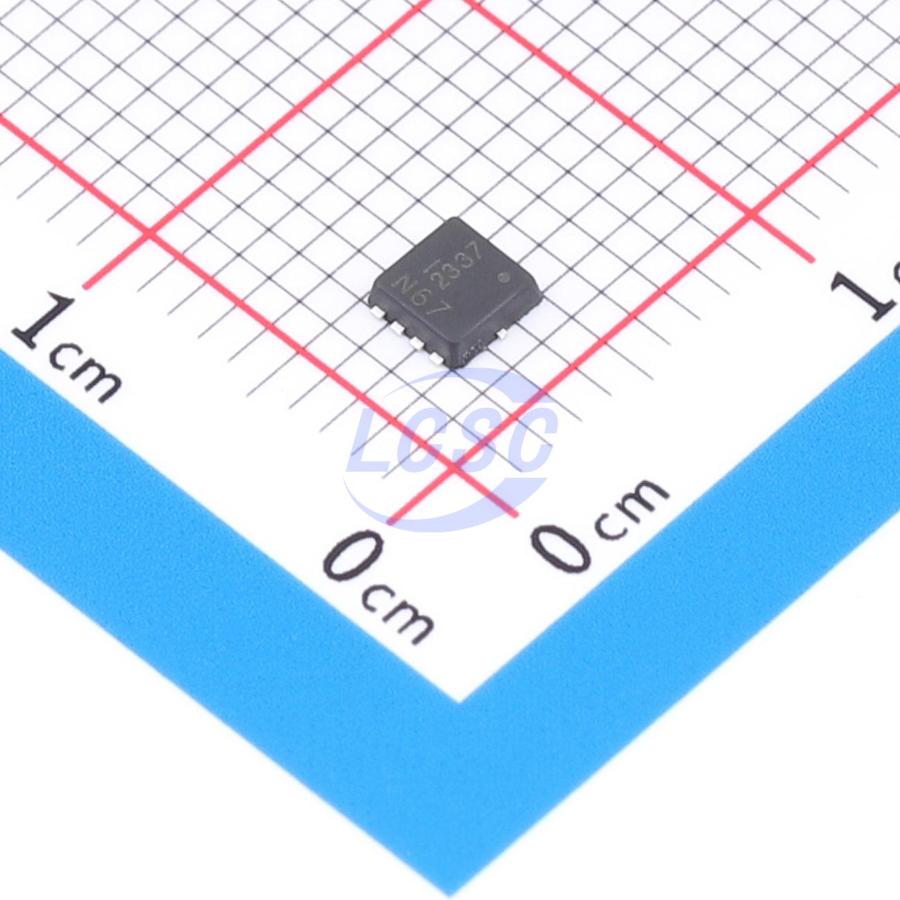

DMN6017SFV-7
60V 35A 2W 18mΩ@10V 1 N-channel PowerDI3333-8 Single FETs, MOSFETs RoHS
PowerDI3333-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN6017SFV-7
- Store part #
- C5673568
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77 in stock
#C5673568
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹130.69 | ₹130.69 |
| 10+ | ₹128.33 | ₹1,283.30 |
| 30+ | ₹126.82 | ₹3,804.60 |
| 100+ | ₹125.10 | ₹12,510.00 |
1 × ₹130.69
₹130.69
excl. GST
₹154.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMN6017SFV-7
₹130.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 2.711nF
- Pd - Power Dissipation
- 2W
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 55nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.121 g
Overview
This MOSFET is designed to minimize on-resistance RDS(ON) while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight Illumination - Power Management Function - DC-DC Converter
Key features
- Low R<sub>DS(ON)</sub> — minimizes conduction losses
- Compact, thermally efficient package enables higher-density end products
- Occupies only 33% of the board area of an SO-8 package, enabling smaller end products
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPNVTFS5824NLTWG#C49230912TECH PUBLIC · PDFN-8(3x3) | TECH PUBLIC | PDFN-8(3x3) | 500 | ₹40.93 · 500 in stock | View |
 | BSZ039N06NS#C534657Infineon · TSDSON-8(3.3x3.3) | Infineon | TSDSON-8(3.3x3.3) | 90 | ₹345.41 · 90 in stock | View |
 | JMTQ35N06A#C2890411Jiangsu JieJie Microelectronics · PDFN3.3x3.3-8L | Jiangsu JieJie Microelectronics | PDFN3.3x3.3-8L | 610 | ₹27.88 · 610 in stock | View |
 | XR40N06D#C42456820XNRUSEMI · PDFN3333-8L | XNRUSEMI | PDFN3333-8L | 1,860 | ₹16.42 · 1,860 in stock | View |
 | CMSC130N10#C45385349Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 450 | ₹34.48 · 450 in stock | View |
