DIODESDatasheet (PDF)

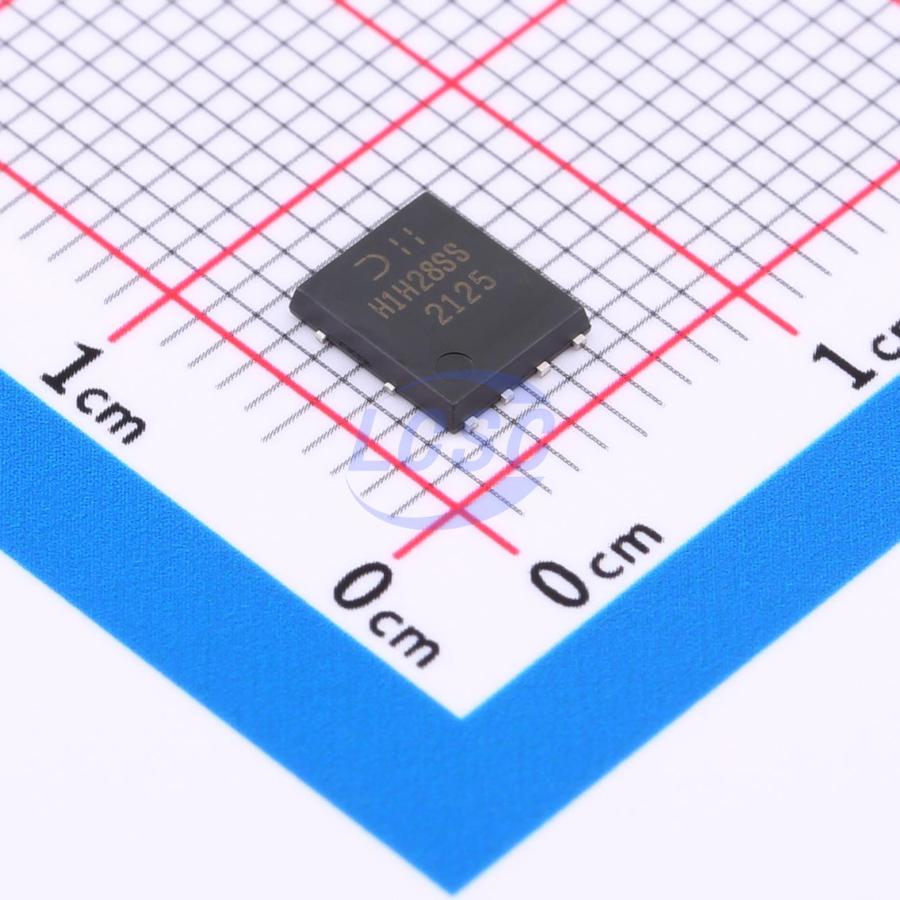

DMNH10H028SPSQ-13
N-Channel 100V 40A 2.9W Surface Mount PowerDI-5060-8
PowerDI-5060-8ROHS3 CompliantActive
MOSFET N-CH 100V 40A PowerDI-5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMNH10H028SPSQ-13
- Store part #
- C575597
- Package / case
- PowerDI-5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C575597
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹283.59 | ₹283.59 |
| 10+ | ₹240.77 | ₹2,407.70 |
| 30+ | ₹213.82 | ₹6,414.60 |
| 100+ | ₹186.45 | ₹18,645.00 |
| 500+ | ₹174.07 | ₹87,035.00 |
| 1,000+ | ₹168.63 | ₹1,68,630.00 |
1 × ₹283.59
₹283.59
excl. GST
₹334.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMNH10H028SPSQ-13
₹283.59 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 173pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 2.245nF
- Pd - Power Dissipation
- 2.9W
- Reverse Transfer Capacitance (Crss)
- 68pF
- RDS(on)
- 19mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.138 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 qualified and supported by PPAP documentation.
Applications
- Engine Management Systems - Body Control Electronics - DC-DC Converters
Key features
- Rated temperature up to +175°C, suitable for high ambient temperature environments
- 100% unclamped inductive switching tested, ensuring greater reliability and durability in end applications
- Thermally efficient package for cooler operation
- High conversion efficiency
- Low on-resistance RDS(ON) minimizes conduction losses
- Low input capacitance
- Fast switching speed
- Package height less than 1.1mm for slim and lightweight applications
- Lead-free finish, RoHS compliant
- Halogen- and antimony-free, environmentally friendly device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MS0001Y#C47361200MIRACLE POWER · PDFN-8(5x6) | MIRACLE POWER | PDFN-8(5x6) | 2,945 | ₹49.22 · 2,945 in stock | View |
 | BSC159N10LSF G#C534420Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 1 | ₹696.31 · 1 in stock | View |
 | TSM160N10LCR RLG#C3288725Taiwan Semiconductor · PDFN-8(5x6) | Taiwan Semiconductor | PDFN-8(5x6) | 25 | ₹1,516.61 · 25 in stock | View |
 | LM5D40N10#C3647066Leiditech · DFN-8(5x6) | Leiditech | DFN-8(5x6) | 123 | ₹97.41 · 123 in stock | View |
 | BSC034N10LS5#C534326Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 427 | ₹402.67 · 427 in stock | View |
