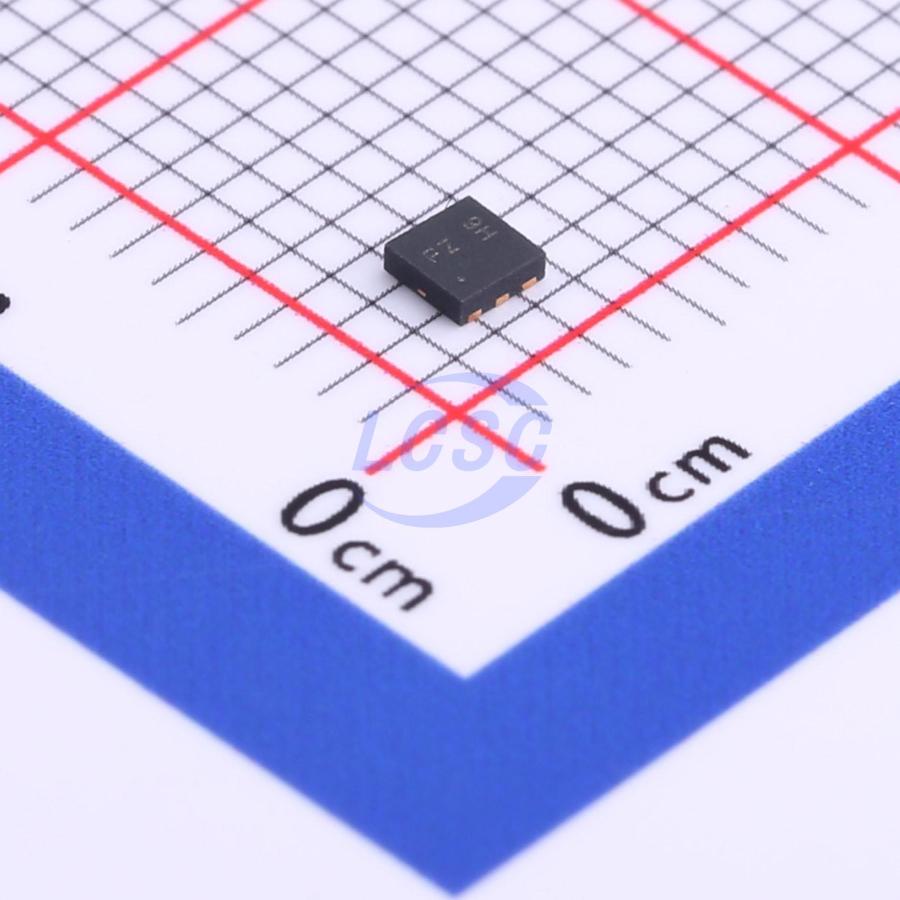

DMP1009UFDF-7
P-Channel 12V 11A 2W Surface Mount UDFN2020-6
UDFN2020-6ROHS3 CompliantActive
MOSFET P-CH 12V 11A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMP1009UFDF-7
- Store part #
- C493499
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
72 in stock
#C493499
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.43 | ₹88.43 |
| 10+ | ₹71.05 | ₹710.50 |
| 30+ | ₹62.35 | ₹1,870.50 |
| 100+ | ₹53.89 | ₹5,389.00 |
| 500+ | ₹48.67 | ₹24,335.00 |
| 1,000+ | ₹46.07 | ₹46,070.00 |
1 × ₹88.43
₹88.43
excl. GST
₹104.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP1009UFDF-7
₹88.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 1.86nF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 416pF
- RDS(on)
- 30mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 26nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
This new generation MOSFET is designed to minimize the on - state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Battery Management Application
- Power Management Functions
- DC - DC Converters
Key features
- U - DFN2020 - 6 (Type F)
- 0.6mm Profile – Ideal for Low Profile Applications
- PCB Footprint of 4mm2
- Low On - Resistance
- Fast Switching Speed
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
