DIODESDatasheet (PDF)

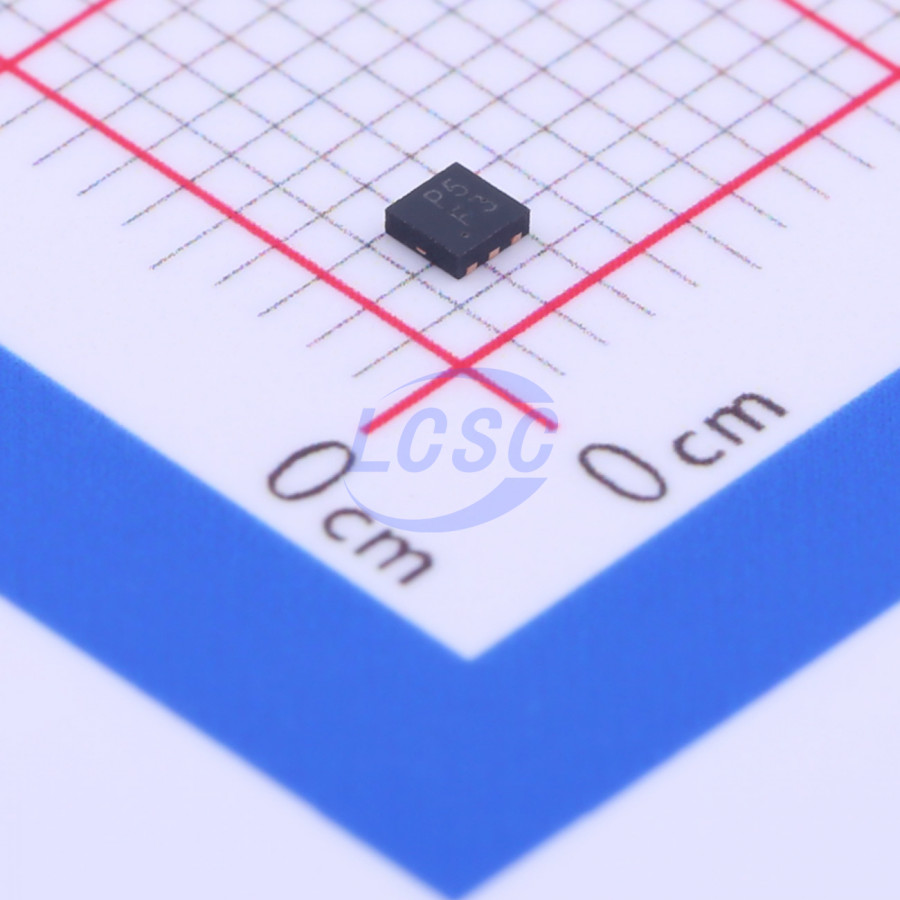

DMP1245UFCL-7
P-Channel 12V 6.6A 1.7W Surface Mount X1-DFN1616-6
X1-DFN1616-6ROHS3 CompliantActive
MOSFET P-CH 12V 6.6A X1-DFN1616-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMP1245UFCL-7
- Store part #
- C332301
- Package / case
- X1-DFN1616-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
96 in stock
#C332301
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.19 | ₹75.19 |
| 10+ | ₹62.63 | ₹626.30 |
| 30+ | ₹56.35 | ₹1,690.50 |
| 100+ | ₹50.27 | ₹5,027.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.64 | ₹44,640.00 |
1 × ₹75.19
₹75.19
excl. GST
₹88.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP1245UFCL-7
₹75.19 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 499pF
- Ciss-Input Capacitance
- 1.3574nF
- Pd - Power Dissipation
- 1.7W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 6.6A
- Reverse Transfer Capacitance (Crss)
- 273.6pF
- RDS(on)
- 100mΩ@1.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 16.1nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 950mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.029 g
Overview
Applications
- Battery Disconnect Switch
- Load Switch for Power Management Functions
Key features
- Typical off board profile of 0.5mm ideally suited for thin applications
- Low RDS(ON) minimizes conduction losses
- PCB footprint of 2.56mm2
- 3kV ESD Protected Gate – protection against human borne ESD
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
