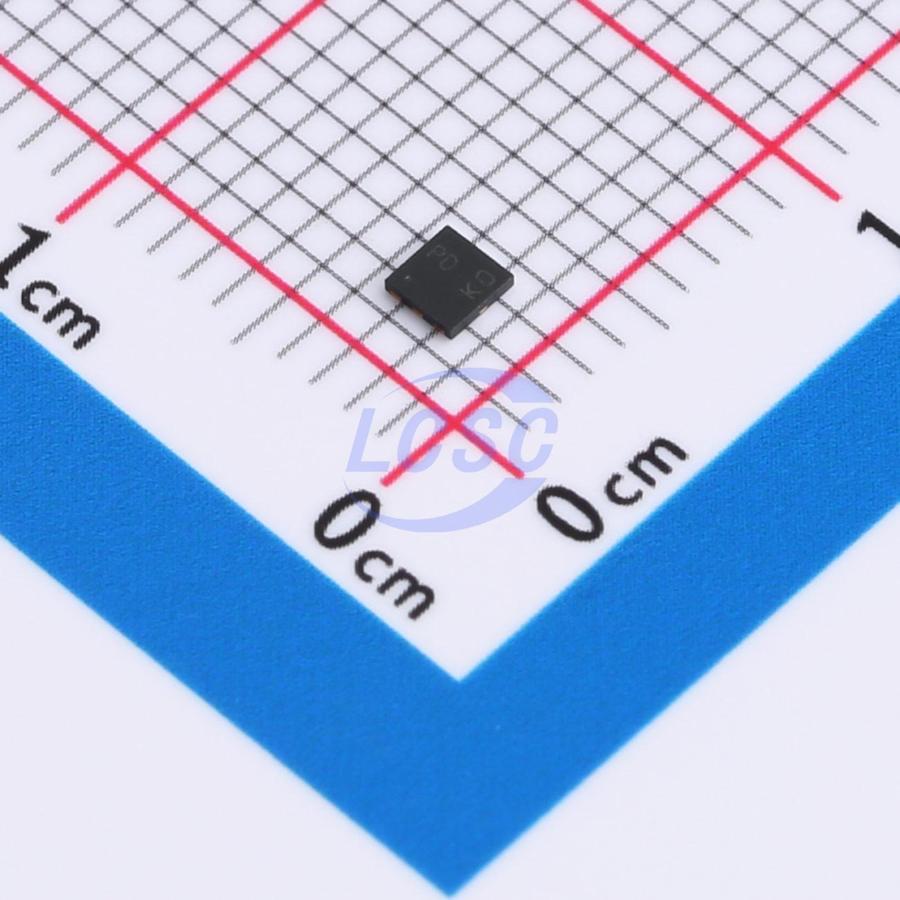

DMP2039UFDE4-7
P-Channel 25V 6.7A 0.8W Surface Mount X2-DFN2020-6
X2-DFN2020-6ROHS3 CompliantActive
MOSFET P-CH 25V 6.7A X2-DFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2039UFDE4-7
- Store part #
- C5248893
- Package / case
- X2-DFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C5248893
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.02 | ₹98.02 |
| 10+ | ₹82.75 | ₹827.50 |
| 30+ | ₹75.24 | ₹2,257.20 |
| 100+ | ₹67.71 | ₹6,771.00 |
| 500+ | ₹63.20 | ₹31,600.00 |
| 1,000+ | ₹60.83 | ₹60,830.00 |
1 × ₹98.02
₹98.02
excl. GST
₹115.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2039UFDE4-7
₹98.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Output Capacitance(Coss)
- 203pF
- Current - Continuous Drain(Id)
- 6.7A
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 800mW
- Reverse Transfer Capacitance (Crss)
- 177pF
- RDS(on)
- 27mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 28.2nC
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Load Switch
- Battery Management Applications
- Power Management Functions
Key features
- Low RDS(ON) — minimizes conduction losses
- 0.4mm profile — ideal for slim applications
- 4mm^2 PCB footprint
- Low input capacitance
- ESD-protected gate
- Pb-free, halogen-free, antimony-free, RoHS compliant
- "Green" device
- AEC-Q101 qualified for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJMP3009#C504124JSCJ · DFNWB2x2-6L | JSCJ | DFNWB2x2-6L | 5 | ₹19.29 · 5 in stock | View |
 | DMP3028LFDE-13#C150441DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 50 | ₹29.83 · 50 in stock | View |
 | DMP3026SFDF-7#C461076DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 145 | ₹261.05 · 145 in stock | View |
| PMPB27EP,115-VB#C52191113VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 3 | ₹89.04 · 3 in stock | View | |
 | LWP3020AD2#C54740924Lewa Micro · DFN-6L(2x2) | Lewa Micro | DFN-6L(2x2) | 2,470 | ₹17.32 · 2,470 in stock | View |
