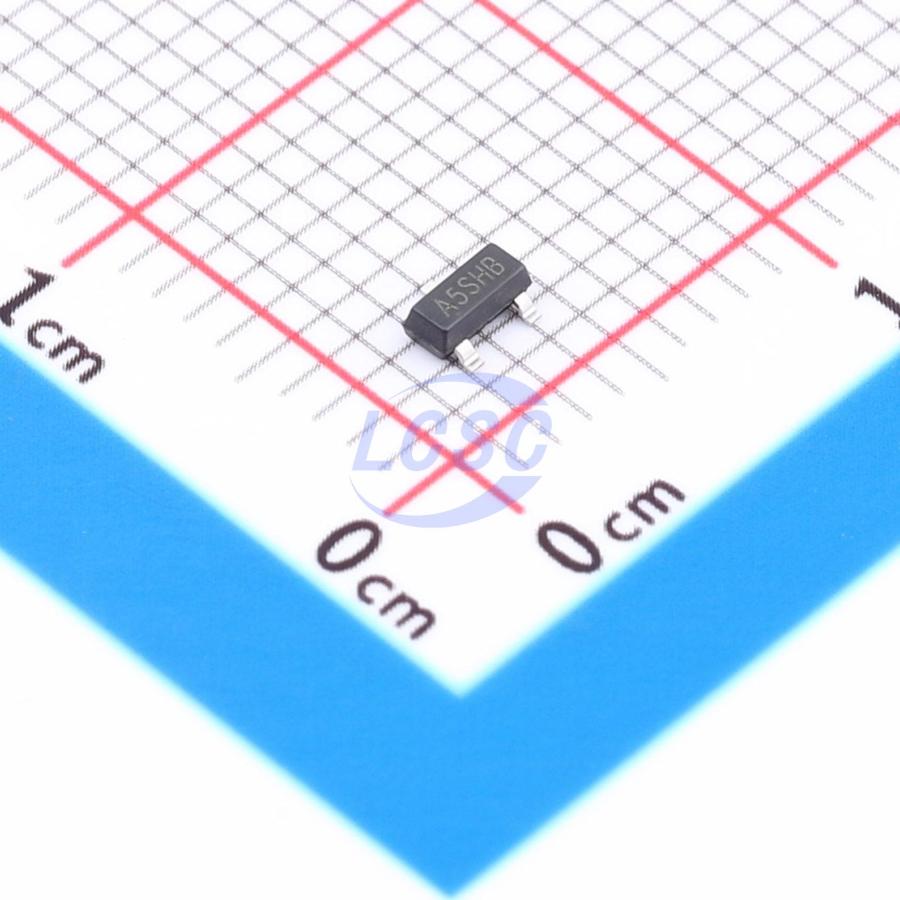

HXY MOSFETDatasheet (PDF)
DMP2070UQ-13-HXY
20V 5A 1.31W 35mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMP2070UQ-13-HXY
- Store part #
- C54582701
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C54582701
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.13 | ₹130.65 |
| 50+ | ₹20.93 | ₹1,046.50 |
| 150+ | ₹18.69 | ₹2,803.50 |
| 500+ | ₹15.92 | ₹7,960.00 |
| 3,000+ | ₹13.12 | ₹39,360.00 |
| 6,000+ | ₹12.38 | ₹74,280.00 |
5 × ₹26.13
₹130.65
excl. GST
₹154.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2070UQ-13-HXY
₹130.65 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 5A
- Output Capacitance(Coss)
- 114pF
- Pd - Power Dissipation
- 1.31W
- RDS(on)
- 35mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10.2nC@4.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
DMP2070UQ - 13 utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 2.5V. This device is suitable for battery protection or other switching applications.
Applications
- High power and current handling capability
- Lead-free product
- SMT package
- PWM applications
- Load switch
- Power management
- SOT-23 package
- P-channel MOSFET
Key features
- VDS = -20V, ID = -5A
- RDS(ON) < 45mΩ (at VGS = 4.5V)
