DIODESDatasheet (PDF)

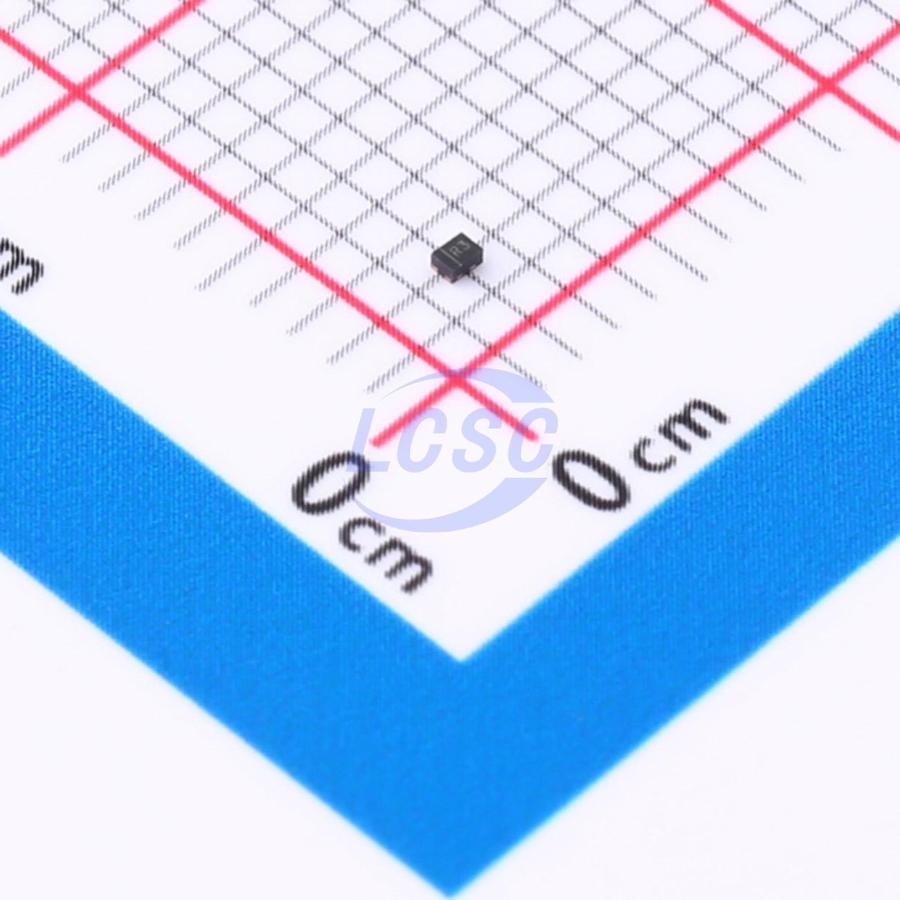

DMP21D2UFA-7B
20V 330mA 360mW 1.6Ω@1.8V 1 P-Channel X2-DFN0806-3 Single FETs, MOSFETs RoHS
X2-DFN0806-3ROHS3 CompliantActive
MOSFET P-CH 20V 330mA X2-DFN0806-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP21D2UFA-7B
- Store part #
- C5245365
- Package / case
- X2-DFN0806-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5245365
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.67 | ₹133.35 |
| 50+ | ₹21.18 | ₹1,059.00 |
| 150+ | ₹18.83 | ₹2,824.50 |
| 500+ | ₹15.89 | ₹7,945.00 |
| 2,500+ | ₹14.58 | ₹36,450.00 |
| 5,000+ | ₹13.79 | ₹68,950.00 |
5 × ₹26.67
₹133.35
excl. GST
₹157.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP21D2UFA-7B
₹133.35 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 330mA
- Ciss-Input Capacitance
- 49pF
- Pd - Power Dissipation
- 360mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.6Ω@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 800pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- General-purpose interface switch
- Power management function
- Analog switch
Key features
- Low profile, maximum package height 0.4mm
- Package size 0.48\;mm^2, 16x smaller than SOT23
- Low on-resistance
- Ultra-low gate threshold voltage, max 1.0V
- Gate ESD protection
- Fully lead-free and fully RoHS compliant
- Halogen and antimony-free, "green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP22D4UFA-7B#C2983692DIODES · X2-DFN0806-3 | DIODES | X2-DFN0806-3 | 710 | ₹20.20 · 710 in stock | View |
