VBsemi ElecDatasheet (PDF)

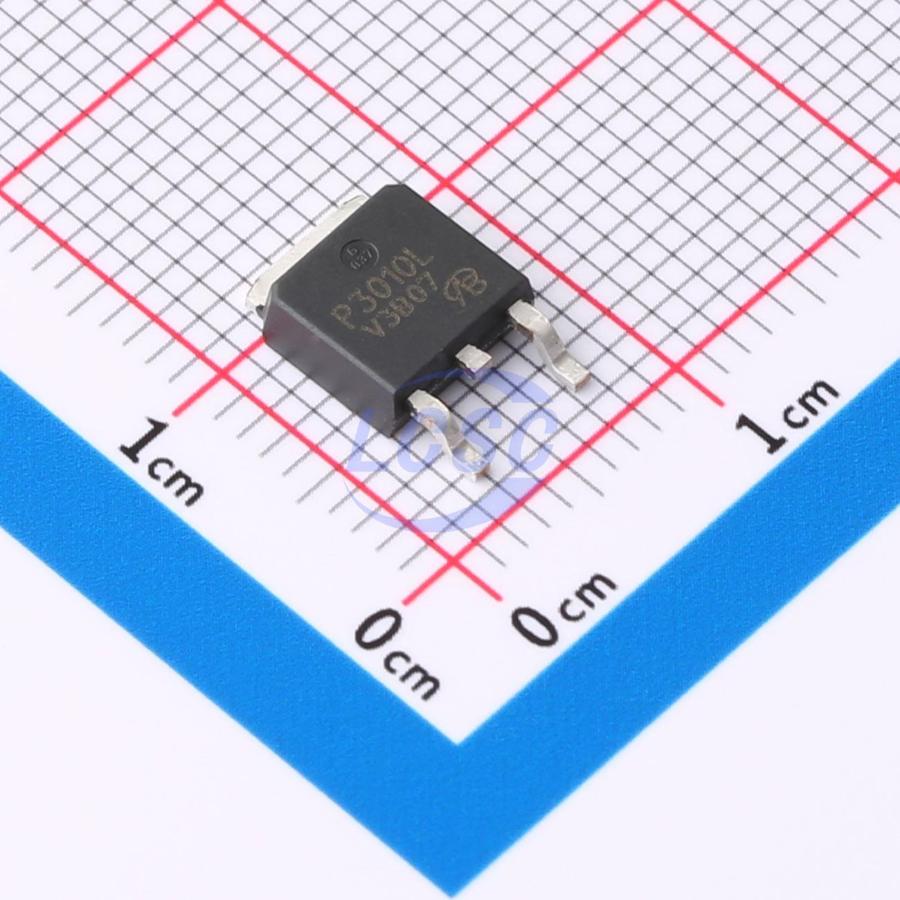

DMP3010LK3-VB
P-Channel 30V 58A 78W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET P-CH 30V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- DMP3010LK3-VB
- Store part #
- C7525024
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C7525024
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.52 | ₹73.52 |
| 10+ | ₹58.82 | ₹588.20 |
| 30+ | ₹51.46 | ₹1,543.80 |
| 100+ | ₹44.12 | ₹4,412.00 |
| 500+ | ₹41.81 | ₹20,905.00 |
| 1,000+ | ₹39.49 | ₹39,490.00 |
1 × ₹73.52
₹73.52
excl. GST
₹86.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP3010LK3-VB
₹73.52 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.565nF
- Current - Continuous Drain(Id)
- 58A
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 78W
- Reverse Transfer Capacitance (Crss)
- 715pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 240nC@15V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.403 g
Overview
Applications
- DC/DC converter
- Load switch for portable applications
Key features
- Compliant to RoHS Directive2002/95/EC
- P-Channel MOSFET
