DIODESDatasheet (PDF)

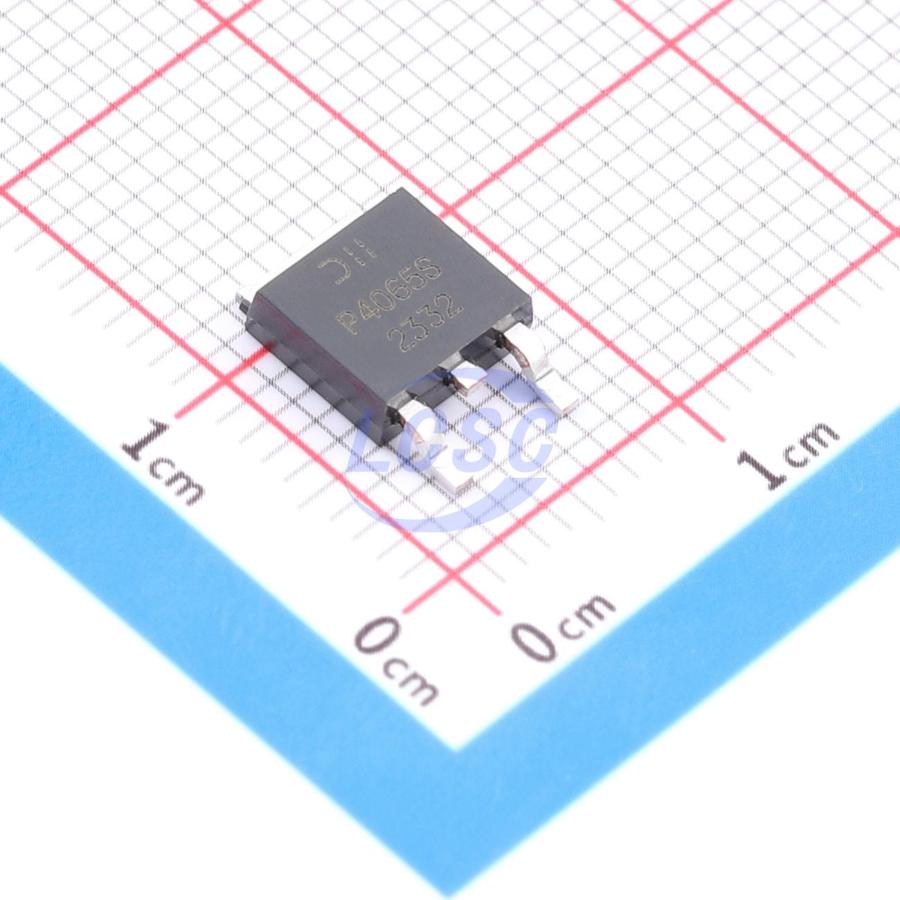

DMP4065SK3-13
40V 15A 3W 70mΩ@10V 1 P-Channel TO-252(DPAK) Single FETs, MOSFETs RoHS
TO-252(DPAK)ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMP4065SK3-13
- Store part #
- C6601851
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C6601851
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.95 | ₹52.95 |
| 10+ | ₹51.64 | ₹516.40 |
| 30+ | ₹50.78 | ₹1,523.40 |
| 100+ | ₹49.69 | ₹4,969.00 |
1 × ₹52.95
₹52.95
excl. GST
₹62.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP4065SK3-13
₹52.95 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 650pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 43pF
- RDS(on)
- 70mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.755 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Battery Charging - Power Management Functions - DC-DC Converter - Portable Power Adapter
Key features
- 100% UIS tested in production
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TM15P06D#C7422821Tritech-MOS · TO-252-3L | Tritech-MOS | TO-252-3L | 3,195 | ₹17.71 · 3,195 in stock | View |
 | DMPH6023SK3-13#C2682492DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 246 | ₹212.86 · 246 in stock | View |
 | 2SJ668-VB#C557925VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 39 | ₹87.42 · 39 in stock | View |
 | 2SJ529S-VB#C709611VBsemi Elec · TO-252-2 | VBsemi Elec | TO-252-2 | 20 | ₹82.97 · 20 in stock | View |
 | 2SJ598-Z-E1-AZ-VB#C7463695VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 110 | ₹77.73 · 110 in stock | View |
