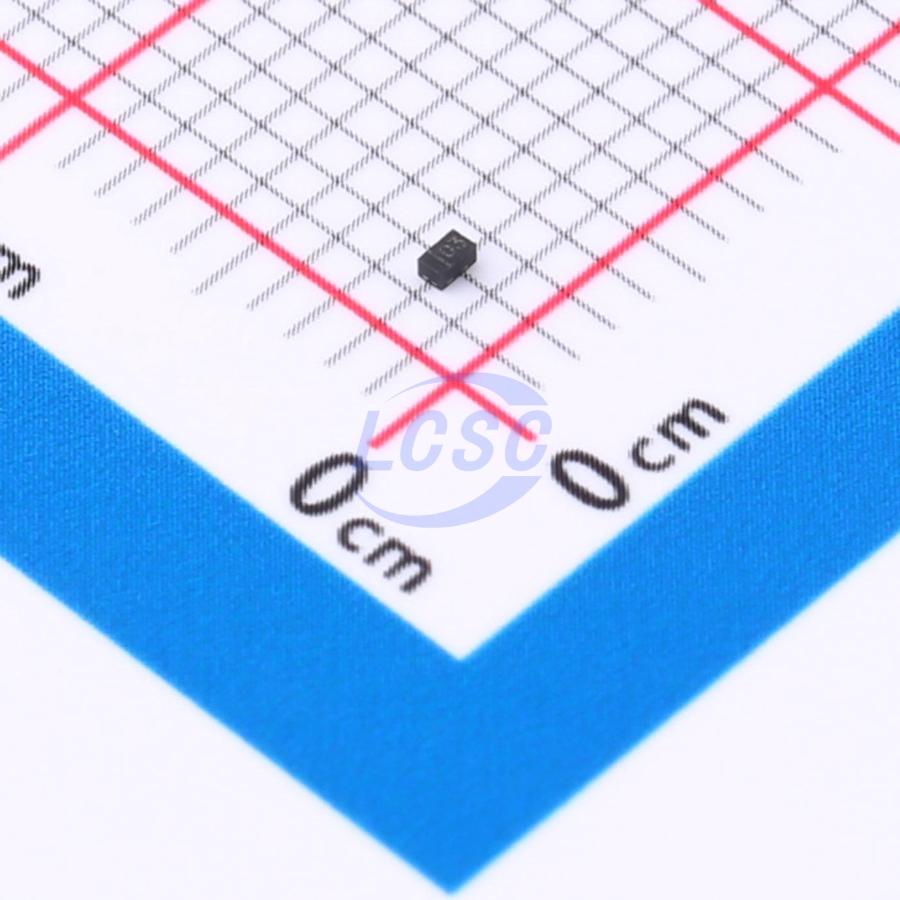

DMP56D0UFB-7B
P-Channel 50V 200mA 425mW Surface Mount X1-DFN1006-3
X1-DFN1006-3ROHS CompliantSold out at source
MOSFET P-CH 50V 200mA X1-DFN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP56D0UFB-7B
- Store part #
- C5245394
- Package / case
- X1-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5245394
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.36 | ₹76.80 |
| 50+ | ₹15.03 | ₹751.50 |
| 150+ | ₹14.82 | ₹2,223.00 |
| 500+ | ₹14.59 | ₹7,295.00 |
5 × ₹15.36
₹76.80
excl. GST
₹90.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP56D0UFB-7B
₹76.80 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 50V
- Current - Continuous Drain(Id)
- 200mA
- Ciss-Input Capacitance
- 50.54pF
- Pd - Power Dissipation
- 425mW
- RDS(on)
- 6Ω@4V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 580pC@4V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.007 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Battery Operated Systems
- Solid-State Relays
Key features
- Low On-Resistance
- ESD Protected Gate
- Low Input/Output Leakage
- Fast Switching Speed
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM6003P3#C42394020TECH PUBLIC · DFN1006-3 | TECH PUBLIC | DFN1006-3 | 195 | ₹6.91 · 195 in stock | View |
 | BSS84AKM,315#C549761Nexperia · SOT-883 | Nexperia | SOT-883 | 1,73,860 | ₹5.74 · 1,73,860 in stock | View |
 | DMP56D0UFB-TP#C42394021TECH PUBLIC · DFN1006-3 | TECH PUBLIC | DFN1006-3 | 140 | ₹3.18 · 140 in stock | View |
 | BSS84AKM-TP#C42394022TECH PUBLIC · DFN1006-3 | TECH PUBLIC | DFN1006-3 | 7,360 | ₹5.34 · 7,360 in stock | View |
 | TPM7002BKM#C970039TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 9,810 | ₹5.23 · 9,810 in stock | View |
