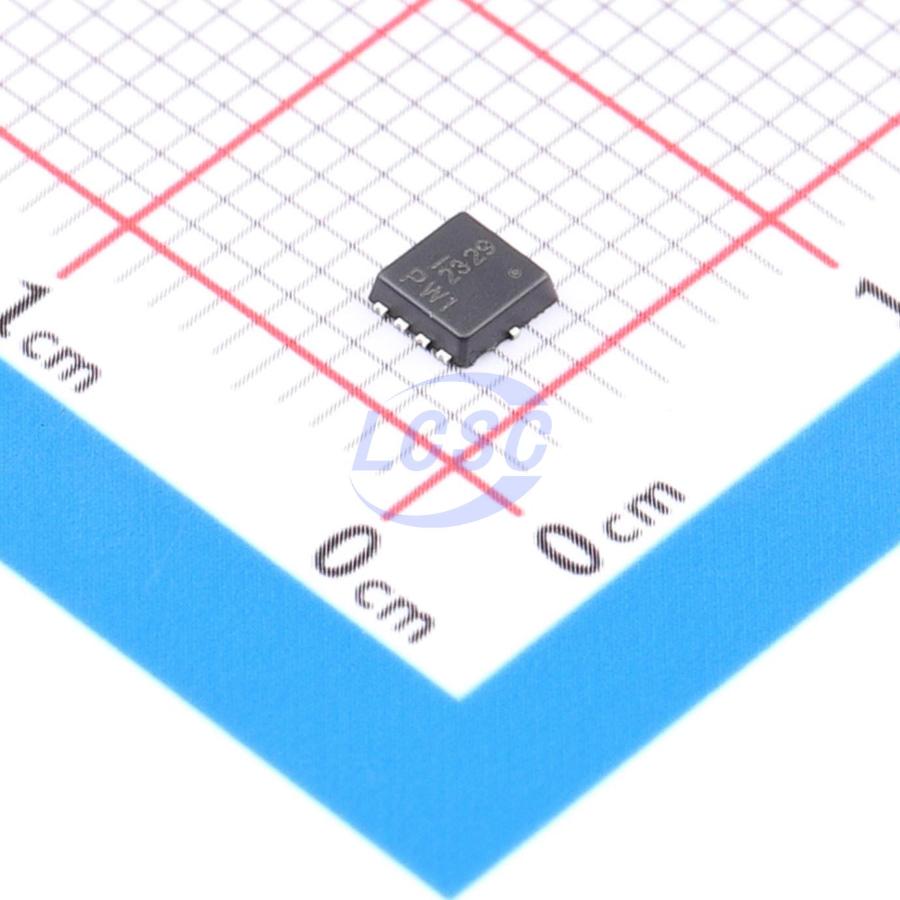

DMPH4025SFVWQ-13
P-Channel 40V 8.7A 40A 2.3W 60W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 40V 8.7A 40A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMPH4025SFVWQ-13
- Store part #
- C6832250
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6832250
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.72 | ₹139.72 |
| 10+ | ₹137.78 | ₹1,377.80 |
| 30+ | ₹136.49 | ₹4,094.70 |
| 100+ | ₹135.20 | ₹13,520.00 |
1 × ₹139.72
₹139.72
excl. GST
₹164.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMPH4025SFVWQ-13
₹139.72 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 8.7A;40A
- Ciss-Input Capacitance
- 1.918nF
- Pd - Power Dissipation
- 2.3W;60W
- RDS(on)
- 25mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP, and is ideal for use in reverse-polarity protections, power-management functions, and DC-DC converters.
Applications
- Reverse-polarity protections
- Power-management functions
- DC-DC converters
Key features
- Rated to +175°C — Ideal for High Ambient Temperature Environments
- Low RDS(ON) — Ensures Minimal On-State Losses
- Small Form Factor
- Thermally Efficient Package Enables Higher Density End Products
- Occupies Just 33% of the Board Area Occupied by SO - 8 Enabling Smaller End Products
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control; AEC - Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XRS40P06D#C49328949XNRUSEMI · PDFN-8L(3.3x3.3) | XNRUSEMI | PDFN-8L(3.3x3.3) | 3,150 | ₹30.50 · 3,150 in stock | View |
 | AGM40P35AP#C18221399AGMSEMI · PDFN3.3x3.3-8 | AGMSEMI | PDFN3.3x3.3-8 | 5,055 | ₹36.51 · 5,055 in stock | View |
 | HSCE4117#C51025846HUASHUO · DFN-8(3.3x3.3) | HUASHUO | DFN-8(3.3x3.3) | 2,385 | ₹52.27 · 2,385 in stock | View |
 | AGM40P55AP#C5340112AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | On request | ₹42.36 · 0 in stock | View |
 | AGM60P14AP#C17701059AGMSEMI · PDFN3.3x3.3-8 | AGMSEMI | PDFN3.3x3.3-8 | 1,415 | ₹50.46 · 1,415 in stock | View |
