DIODESDatasheet (PDF)

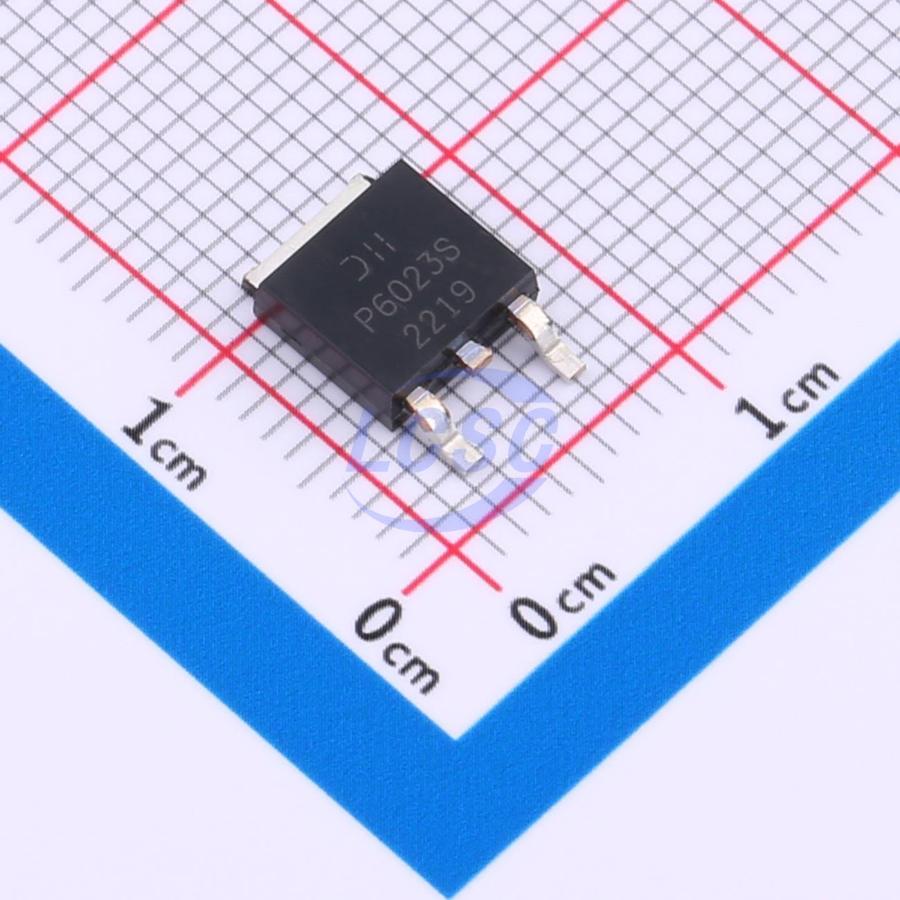

DMPH6023SK3Q-13
P-Channel 60V 35A 3.2W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET P-CH 60V 35A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMPH6023SK3Q-13
- Store part #
- C5381673
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C5381673
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.76 | ₹91.76 |
| 10+ | ₹74.92 | ₹749.20 |
| 30+ | ₹66.49 | ₹1,994.70 |
| 100+ | ₹58.08 | ₹5,808.00 |
| 500+ | ₹53.12 | ₹26,560.00 |
| 1,000+ | ₹50.53 | ₹50,530.00 |
1 × ₹91.76
₹91.76
excl. GST
₹108.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMPH6023SK3Q-13
₹91.76 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 179pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 2.569nF
- Pd - Power Dissipation
- 3.2W
- Reverse Transfer Capacitance (Crss)
- 143pF
- RDS(on)
- 33mΩ@10V;40mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 26.5nC@4.5V;53.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.538 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with the AEC-Q101 standard and offers PPAP support, making it ideal for the following applications: - Engine management systems - Body control electronics - DC-DC converters
Applications
- Engine management systems
- Body control electronics
- DC-DC converters
Key features
- Rated temperature up to +175°C, suitable for high ambient temperature environments
- 100% unclamped inductive switching for more reliable and durable end applications
- Low on-resistance
- Low input capacitance
- Lead-free finish, RoHS compliant
- Halogen- and antimony-free "green" device
- AEC-Q101 high reliability qualified
- PPAP capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60P23TH#C41355209Siliup · TO-252-2L | Siliup | TO-252-2L | 410 | ₹21.95 · 410 in stock | View |
 | TPM6052PK3#C42407112TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 2,604 | ₹57.58 · 2,604 in stock | View |
 | DMPH6023SK3-13#C2682492DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 246 | ₹212.86 · 246 in stock | View |
 | SUD50P06-15L-E3#C3290999VISHAY · DPAK(TO-252) | VISHAY | DPAK(TO-252) | On request | ₹578.61 · 0 in stock | View |
 | UTT25P06L-TN3-R-VB#C29778740VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹82.56 · 5 in stock | View |
