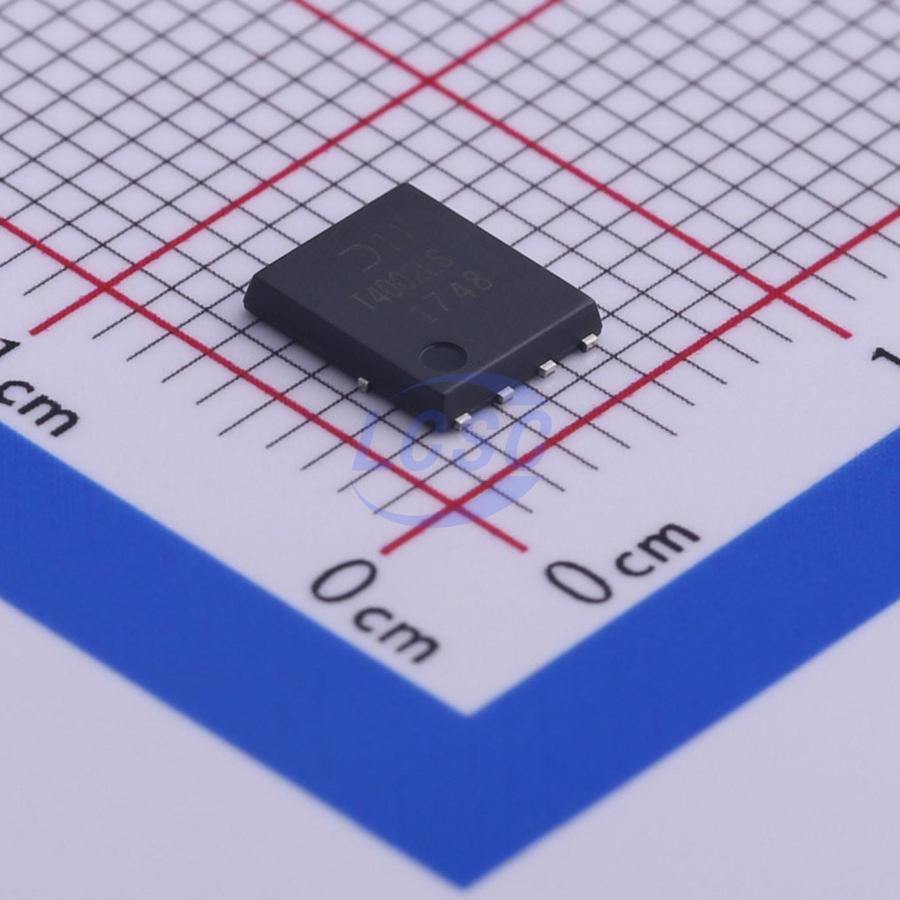

DMT4002LPS-13
104W 40V 100A 1.8mΩ@10V 1 N-channel N-Channel PowerDI5060-8 Single FETs, MOSFETs RoHS
PowerDI5060-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMT4002LPS-13
- Store part #
- C461792
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C461792
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹408.38 | ₹408.38 |
| 10+ | ₹363.47 | ₹3,634.70 |
| 30+ | ₹335.31 | ₹10,059.30 |
| 100+ | ₹306.29 | ₹30,629.00 |
| 500+ | ₹280.07 | ₹1,40,035.00 |
| 1,000+ | ₹274.48 | ₹2,74,480.00 |
1 × ₹408.38
₹408.38
excl. GST
₹481.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMT4002LPS-13
₹408.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.165nF
- Ciss-Input Capacitance
- 6.771nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 176pF
- RDS(on)
- 1.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 116.1nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Engine Management Systems
- Body Control Electronics
- DC-DC Converters
Key features
- 100% unclamped inductive switching tested — enhanced reliability and durability for end applications
- High thermal efficiency package — lower operating temperature
- High conversion efficiency
- Low RDS(ON) — minimized conduction losses
- Package height < 1.1mm — ideal for slim and compact applications
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP40N02BGNK#C22385418Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | On request | ₹37.56 · 0 in stock | View |
 | HSBA4048#C508827HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 98 | ₹74.47 · 98 in stock | View |
 | SP60N01BGHNK#C49257272Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 5,180 | ₹108.33 · 5,180 in stock | View |
 | APG022N06G#C2995347ALLPOWER · PDFN5x6-8 | ALLPOWER | PDFN5x6-8 | 2,010 | ₹222.97 · 2,010 in stock | View |
 | YJG130G04A#C2858574YANGJIE · PDFN-8(5.9x5.2) | YANGJIE | PDFN-8(5.9x5.2) | 3 | ₹129.18 · 3 in stock | View |
