DIODESDatasheet (PDF)

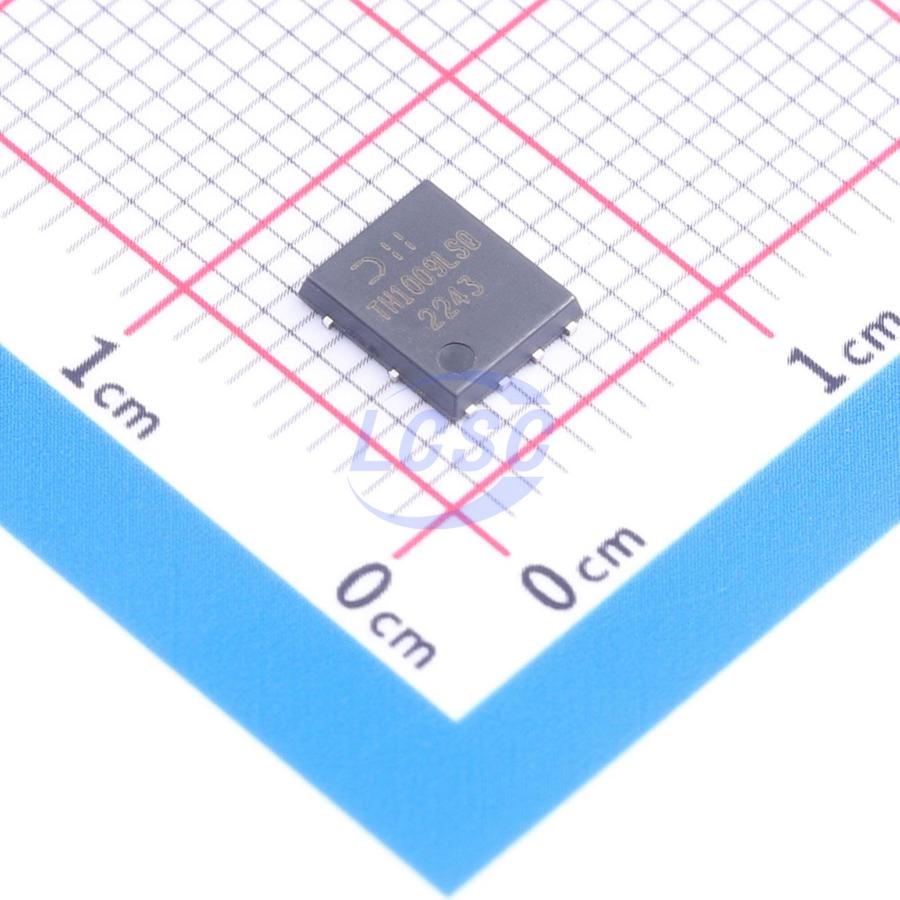

DMTH10H009LPSQ-13
N-Channel 100V 91A 100W Surface Mount PowerDI-5060-8
PowerDI-5060-8ROHS3 CompliantActive
MOSFET N-CH 100V 91A PowerDI-5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH10H009LPSQ-13
- Store part #
- C5248933
- Package / case
- PowerDI-5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C5248933
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.94 | ₹225.94 |
| 10+ | ₹187.60 | ₹1,876.00 |
| 30+ | ₹166.74 | ₹5,002.20 |
| 100+ | ₹142.88 | ₹14,288.00 |
| 500+ | ₹132.46 | ₹66,230.00 |
| 1,000+ | ₹127.56 | ₹1,27,560.00 |
1 × ₹225.94
₹225.94
excl. GST
₹266.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
DMTH10H009LPSQ-13
₹225.94 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 536pF
- Current - Continuous Drain(Id)
- 91A
- Ciss-Input Capacitance
- 2.309nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 13.7pF
- RDS(on)
- 6mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40.2nC@10V;20.2nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC- Q101, supported by a PPAP and is ideal for use in: Motor controls DC- DC converters Power managements
Applications
- Motor controls
- DC- DC converters
- Power managements
Key features
- Rated to +175℃
- Ideal for High Ambient Temperature Environments
- 100% Unclamped Inductive Switching (UIS) Test in Production - Ensures More Reliable and Robust End Application
- Thermally Efficient Package
- Cooler Running Applications
- High Conversion Efficiency
- Low RDS(ON) - Minimizes On- State Losses
- Low Input Capacitance
- Fast Switching Speed
- < 1.1mm Package Profile - Ideal for Thin Applications (PowerDI)
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
