HXY MOSFETDatasheet (PDF)

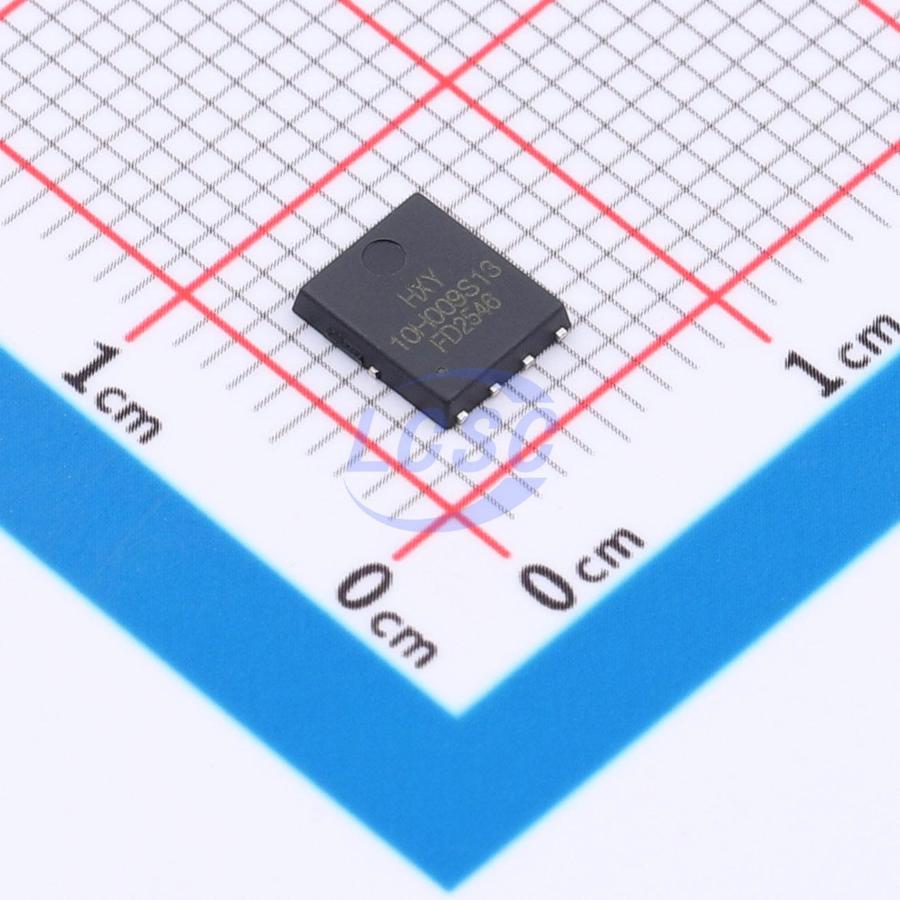

DMTH10H009SPSQ-13-HXY
97W 100V 75A 7.3mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH10H009SPSQ-13-HXY
- Store part #
- C53262927
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
198 in stock
#C53262927
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.63 | ₹123.63 |
| 10+ | ₹100.34 | ₹1,003.40 |
| 30+ | ₹88.59 | ₹2,657.70 |
| 100+ | ₹77.04 | ₹7,704.00 |
| 500+ | ₹70.12 | ₹35,060.00 |
| 1,000+ | ₹66.55 | ₹66,550.00 |
1 × ₹123.63
₹123.63
excl. GST
₹145.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMTH10H009SPSQ-13-HXY
₹123.63 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 865pF
- Ciss-Input Capacitance
- 2.046nF
- Pd - Power Dissipation
- 97W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 7.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.126 g
