HXY MOSFETDatasheet (PDF)

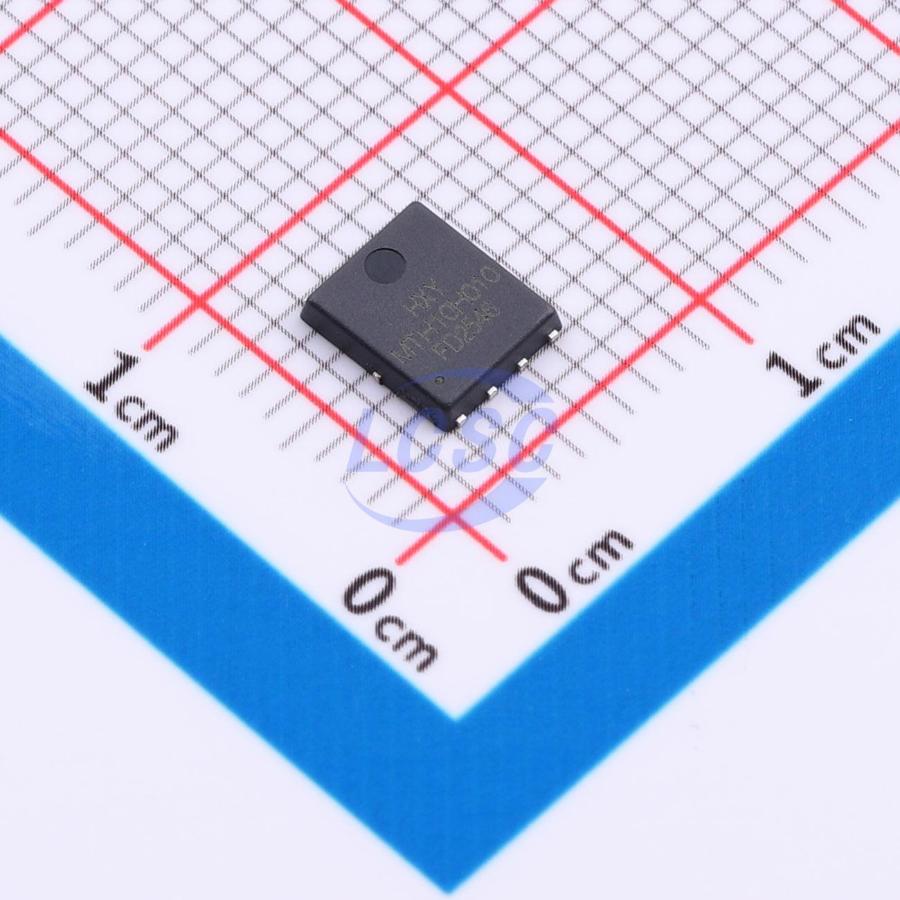

DMTH10H010LPSW-13-HXY
97W 100V 75A 7.3mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH10H010LPSW-13-HXY
- Store part #
- C53262931
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94 in stock
#C53262931
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.44 | ₹157.44 |
| 10+ | ₹132.51 | ₹1,325.10 |
| 30+ | ₹118.99 | ₹3,569.70 |
| 100+ | ₹103.52 | ₹10,352.00 |
| 500+ | ₹96.65 | ₹48,325.00 |
| 1,000+ | ₹93.43 | ₹93,430.00 |
1 × ₹157.44
₹157.44
excl. GST
₹185.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMTH10H010LPSW-13-HXY
₹157.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 865pF
- Ciss-Input Capacitance
- 2.046nF
- Pd - Power Dissipation
- 97W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 7.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.135 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ISC080N10NM6ATMA1-HXY#C53262890HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 521 | ₹182.56 · 521 in stock | View |
 | SIR882ADP-T1-GE3-HXY#C53262892HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 198 | ₹156.38 · 198 in stock | View |
 | BSC082N10LSGATMA1-HXY#C53262915HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 186 | ₹272.64 · 186 in stock | View |
 | DMT10H009SPSW-13-HXY#C53262924HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹111.69 · 98 in stock | View |
 | DMTH10H009SPSW-13-HXY#C53262925HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹111.69 · 98 in stock | View |
