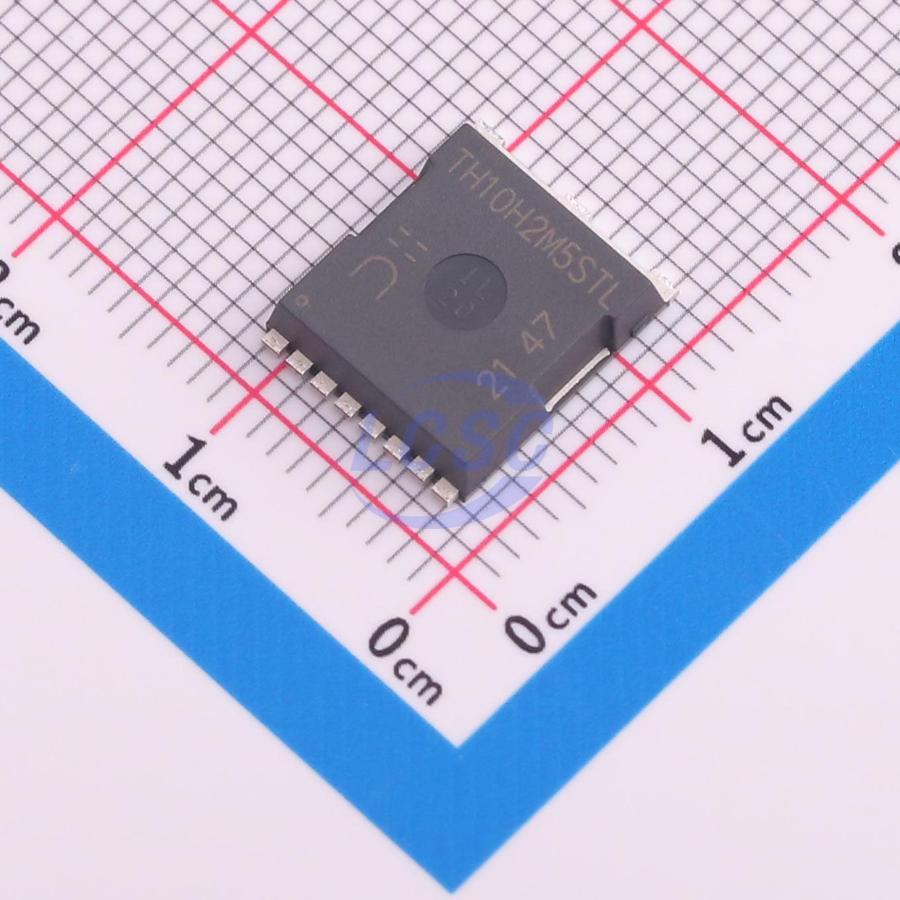

DMTH10H2M5STLW-13
N-Channel 100V 215A 230.8W Surface Mount PowerDI1012-8
PowerDI1012-8ROHS3 CompliantActive
MOSFET N-CH 100V 215A PowerDI1012-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH10H2M5STLW-13
- Store part #
- C6430964
- Package / case
- PowerDI1012-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C6430964
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹489.66 | ₹489.66 |
| 10+ | ₹479.10 | ₹4,791.00 |
| 30+ | ₹471.99 | ₹14,159.70 |
| 100+ | ₹464.89 | ₹46,489.00 |
1 × ₹489.66
₹489.66
excl. GST
₹577.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
DMTH10H2M5STLW-13
₹489.66 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 2.43nF
- Current - Continuous Drain(Id)
- 215A
- Ciss-Input Capacitance
- 8.45nF
- Pd - Power Dissipation
- 230.8W
- Reverse Transfer Capacitance (Crss)
- 17.7pF
- RDS(on)
- 2.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 124.4nC
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.207 g
Overview
This next-generation N-channel enhancement-mode MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance. The device is ideal for power management and load switching applications.
Applications
- Motor control
- DC-DC converter
- Power management
Key features
- Rated temperature up to +175°C, suitable for high ambient temperature environments
- 100% unclamped inductive switching (UIS) tested during production for enhanced reliability and durability in end applications
- High conversion efficiency
- Low on-state resistance RDS(ON) to minimize conduction losses
- Solderable flanks for optical inspection
- Lead-free plating, RoHS compliant
- Halogen- and antimony-free, environmentally friendly device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH10H1M7STLWQ-13#C3279386DIODES · PowerDI1012-8 | DIODES | PowerDI1012-8 | 18 | ₹1,320.79 · 18 in stock | View |
 | DMTH10H1M7STLW-13#C5245443DIODES · PowerDI1012-8 | DIODES | PowerDI1012-8 | 158 | ₹323.21 · 158 in stock | View |
 | DMTH10H1M7STLWQ-13#C5248935DIODES · PowerDI-1012-8 | DIODES | PowerDI-1012-8 | On request | ₹327.55 · 0 in stock | View |
