HXY MOSFETDatasheet (PDF)

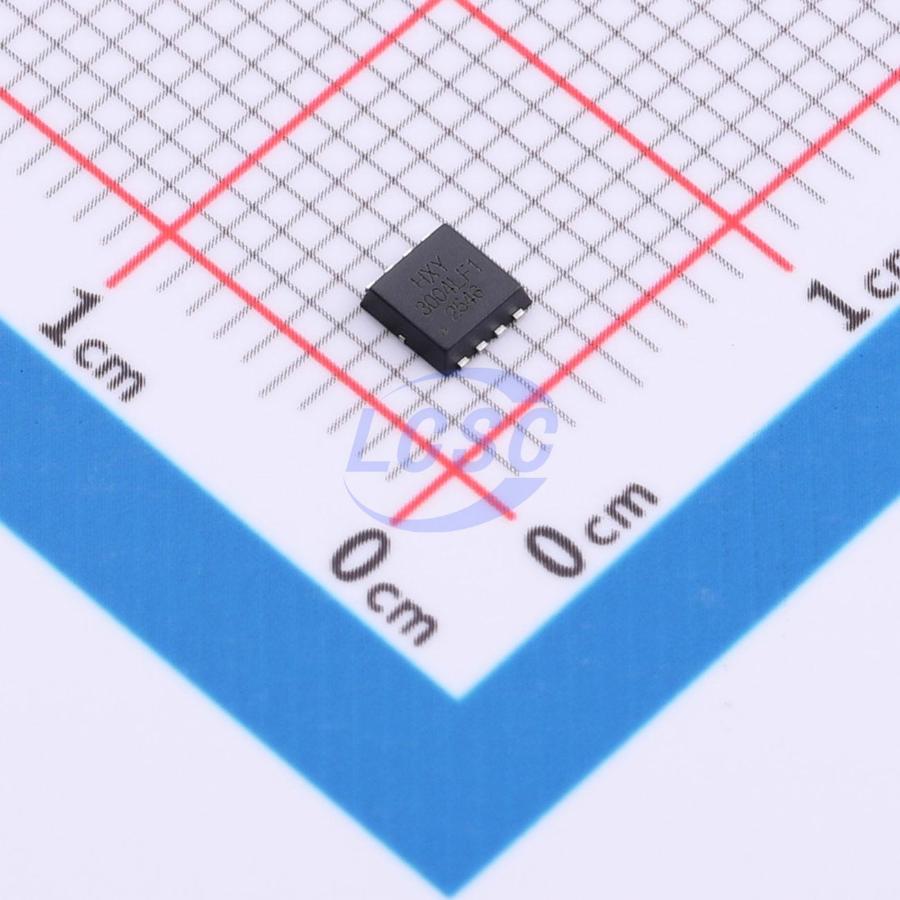

DMTH3004LFG-13-HXY
62.5W 30V 60A 4mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH3004LFG-13-HXY
- Store part #
- C53263170
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C53263170
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.33 | ₹206.65 |
| 50+ | ₹33.10 | ₹1,655.00 |
| 150+ | ₹29.58 | ₹4,437.00 |
| 500+ | ₹25.18 | ₹12,590.00 |
| 2,500+ | ₹23.22 | ₹58,050.00 |
| 5,000+ | ₹22.04 | ₹1,10,200.00 |
5 × ₹41.33
₹206.65
excl. GST
₹243.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMTH3004LFG-13-HXY
₹206.65 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 400pF
- Ciss-Input Capacitance
- 3.075nF
- Pd - Power Dissipation
- 62.5W
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 315pF
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.6nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.073 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD17577Q3A-HXY#C22367294HXY MOSFET · DFN-8(3x3) | HXY MOSFET | DFN-8(3x3) | 94 | ₹52.05 · 94 in stock | View |
 | SISA14DN-T1-GE3-HXY#C53262980HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 47 | ₹60.36 · 47 in stock | View |
 | PXN4R7-30QLJ-HXY#C53262986HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 98 | ₹77.32 · 98 in stock | View |
 | AON7422G#C53262996HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 90 | ₹39.68 · 90 in stock | View |
 | FDMC7678-L701-HXY#C53263011HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 98 | ₹80.76 · 98 in stock | View |
