HXY MOSFETDatasheet (PDF)

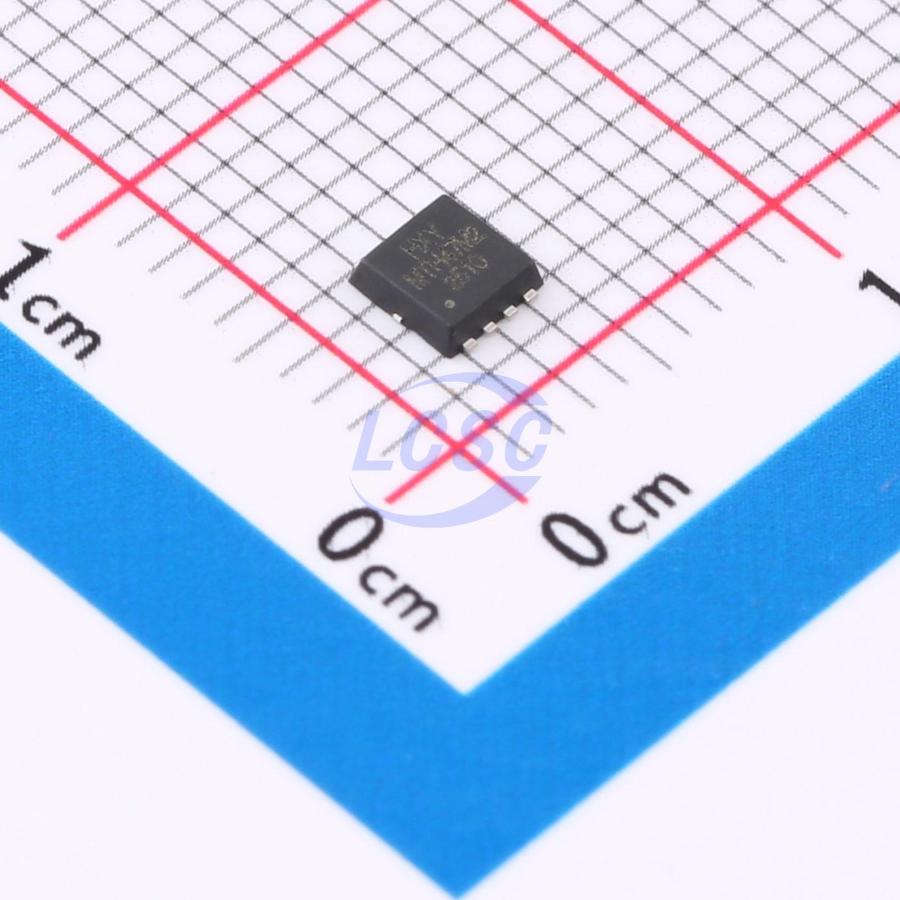

DMTH47M2LFVW-7-HXY
40V 40A 39W Surface Mount DFN3x3-8L
DFN3x3-8LROHS CompliantActive
MOSFET 40V 40A DFN3x3-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH47M2LFVW-7-HXY
- Store part #
- C48972165
- Package / case
- DFN3x3-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C48972165
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.49 | ₹232.45 |
| 50+ | ₹37.24 | ₹1,862.00 |
| 150+ | ₹33.27 | ₹4,990.50 |
| 500+ | ₹28.33 | ₹14,165.00 |
| 2,500+ | ₹26.12 | ₹65,300.00 |
| 5,000+ | ₹24.79 | ₹1,23,950.00 |
5 × ₹46.49
₹232.45
excl. GST
₹274.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMTH47M2LFVW-7-HXY
₹232.45 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 193pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 690pF
- Pd - Power Dissipation
- 39W
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 6.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.072 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTTFS5C471NL-HXY#C22366981HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 78 | ₹76.27 · 78 in stock | View |
 | NVTFS5C471NL-HXY#C22366984HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 159 | ₹74.59 · 159 in stock | View |
 | NVTFS5C466NL-HXY#C22366986HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 59 | ₹64.84 · 59 in stock | View |
 | NVTFS5C478NL-HXY#C22367311HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 68 | ₹66.56 · 68 in stock | View |
 | DMTH48M3SFVWQ-7-HXY#C48972164HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 290 | ₹51.17 · 290 in stock | View |
