HXY MOSFETDatasheet (PDF)

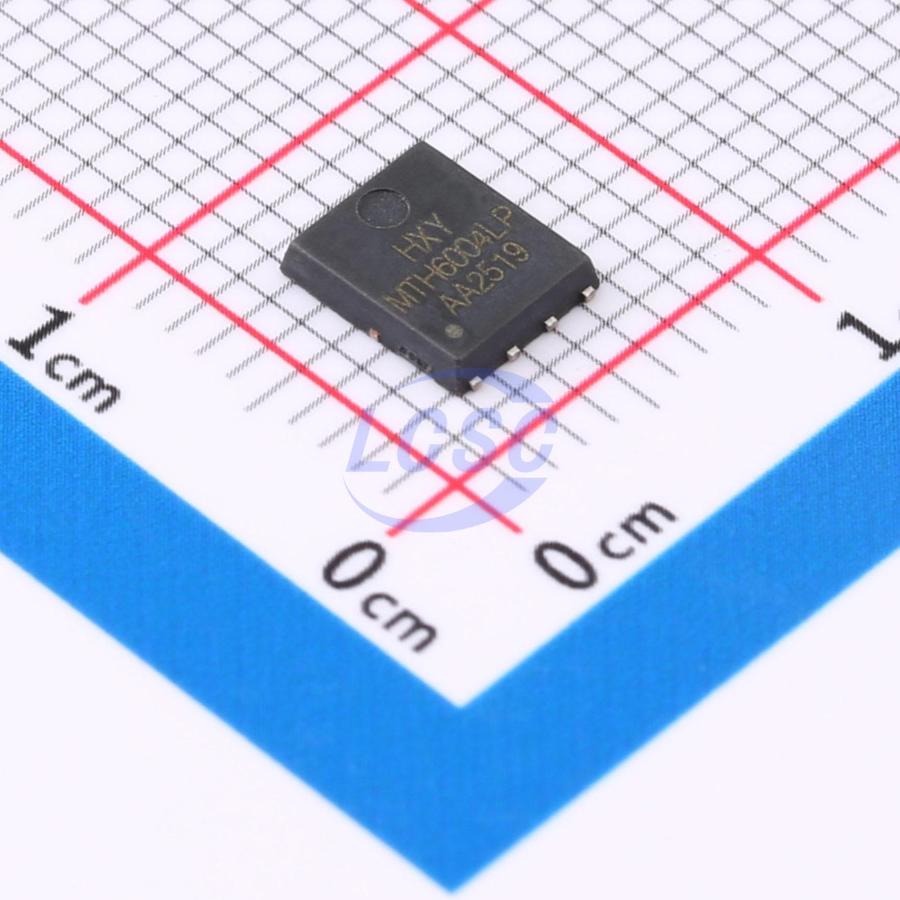

DMTH6004LPS-13-HXY
N-Channel 80V 125A 113W Surface Mount DFN5x6-8L
DFN5x6-8LROHS CompliantActive
MOSFET N-CH 80V 125A DFN5x6-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH6004LPS-13-HXY
- Store part #
- C48996344
- Package / case
- DFN5x6-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
88 in stock
#C48996344
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.78 | ₹185.78 |
| 10+ | ₹156.35 | ₹1,563.50 |
| 30+ | ₹140.25 | ₹4,207.50 |
| 100+ | ₹121.99 | ₹12,199.00 |
| 500+ | ₹113.83 | ₹56,915.00 |
| 1,000+ | ₹110.18 | ₹1,10,180.00 |
1 × ₹185.78
₹185.78
excl. GST
₹219.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMTH6004LPS-13-HXY
₹185.78 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 2.188nF
- Current - Continuous Drain(Id)
- 125A
- Ciss-Input Capacitance
- 4.61nF
- Pd - Power Dissipation
- 113W
- Reverse Transfer Capacitance (Crss)
- 66pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 74.37nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.145 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC0702LS-HXY#C20606289HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 5,207 | ₹94.93 · 5,207 in stock | View |
 | BSC028N06NS-HXY#C20606291HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 23 | ₹110.83 · 23 in stock | View |
 | BSC039N06NS-HXY#C20606292HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 51 | ₹132.51 · 51 in stock | View |
 | STL140N6F7-HXY#C48996338HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 316 | ₹123.29 · 316 in stock | View |
 | DMTH6004SPSQ-13-HXY#C48996339HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 69 | ₹128.23 · 69 in stock | View |
