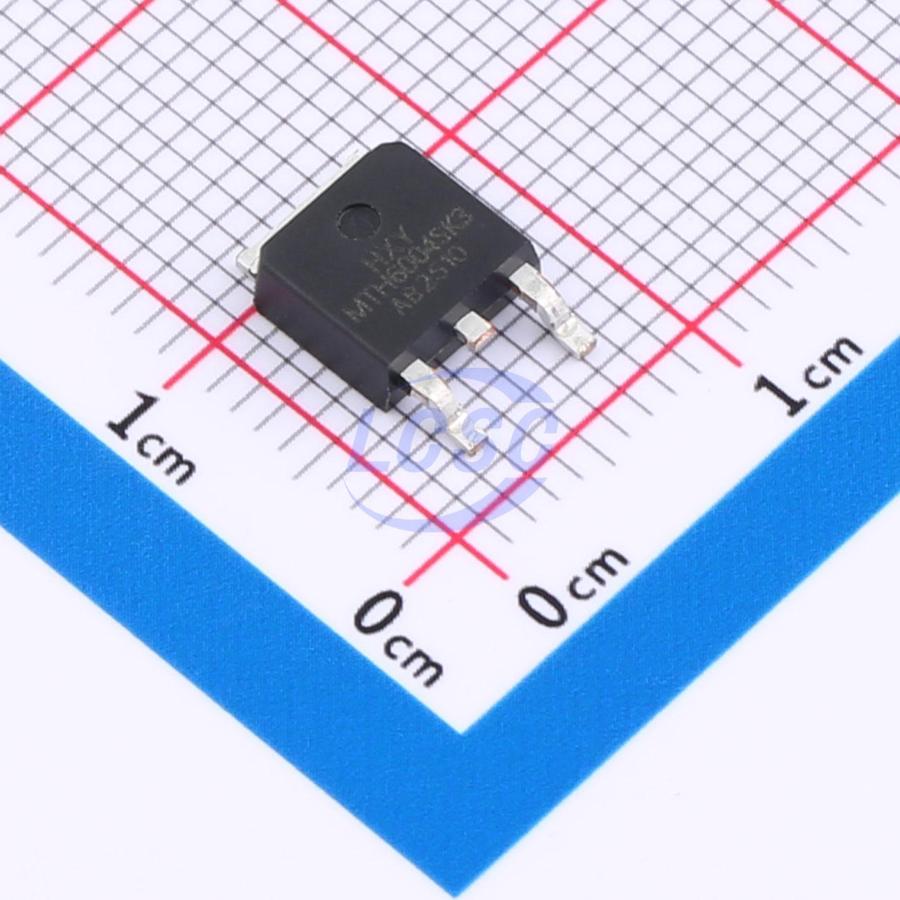

HXY MOSFETDatasheet (PDF)
DMTH6004SK3Q-13-HXY
N-Channel 60V 130A 140W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 60V 130A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH6004SK3Q-13-HXY
- Store part #
- C48972053
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
68 in stock
#C48972053
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.00 | ₹113.00 |
| 10+ | ₹91.05 | ₹910.50 |
| 30+ | ₹79.98 | ₹2,399.40 |
| 100+ | ₹69.11 | ₹6,911.00 |
| 500+ | ₹62.59 | ₹31,295.00 |
| 1,000+ | ₹59.32 | ₹59,320.00 |
1 × ₹113.00
₹113.00
excl. GST
₹133.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH6004SK3Q-13-HXY
₹113.00 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.666nF
- Current - Continuous Drain(Id)
- 130A
- Ciss-Input Capacitance
- 5.377nF
- Pd - Power Dissipation
- 140W
- Reverse Transfer Capacitance (Crss)
- 77.7pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH6004SK3-13-HXY#C48972054HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 190 | ₹88.91 · 190 in stock | View |
 | SQD50034E_GE3-HXY#C48972055HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 52 | ₹105.62 · 52 in stock | View |
 | IPD034N06N3GATMA1-HXY#C54582426HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 34 | ₹90.89 · 34 in stock | View |
 | IPD100N06S403ATMA2-HXY#C54582431HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 39 | ₹195.66 · 39 in stock | View |
 | IPD033N06NATMA1-HXY#C54582488HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 45 | ₹231.74 · 45 in stock | View |
