HXY MOSFETDatasheet (PDF)

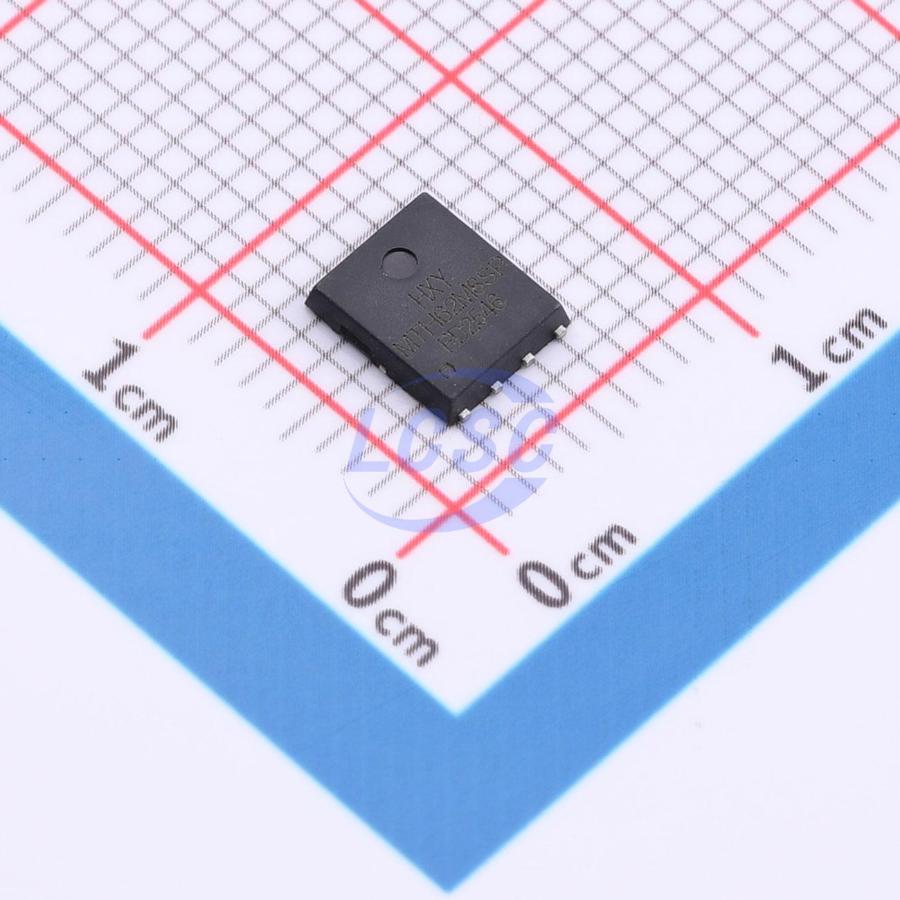

DMTH62M8SPS-13-HXY
113W 60V 125A 2.4mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMTH62M8SPS-13-HXY
- Store part #
- C53262864
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98 in stock
#C53262864
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.42 | ₹154.42 |
| 10+ | ₹130.16 | ₹1,301.60 |
| 30+ | ₹116.62 | ₹3,498.60 |
| 100+ | ₹101.59 | ₹10,159.00 |
| 500+ | ₹94.71 | ₹47,355.00 |
| 1,000+ | ₹91.71 | ₹91,710.00 |
1 × ₹154.42
₹154.42
excl. GST
₹182.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMTH62M8SPS-13-HXY
₹154.42 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.188nF
- Ciss-Input Capacitance
- 4.61nF
- Pd - Power Dissipation
- 113W
- Drain to Source Voltage
- 60V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 125A
- Reverse Transfer Capacitance (Crss)
- 66pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 74.37nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
