DIODESDatasheet (PDF)

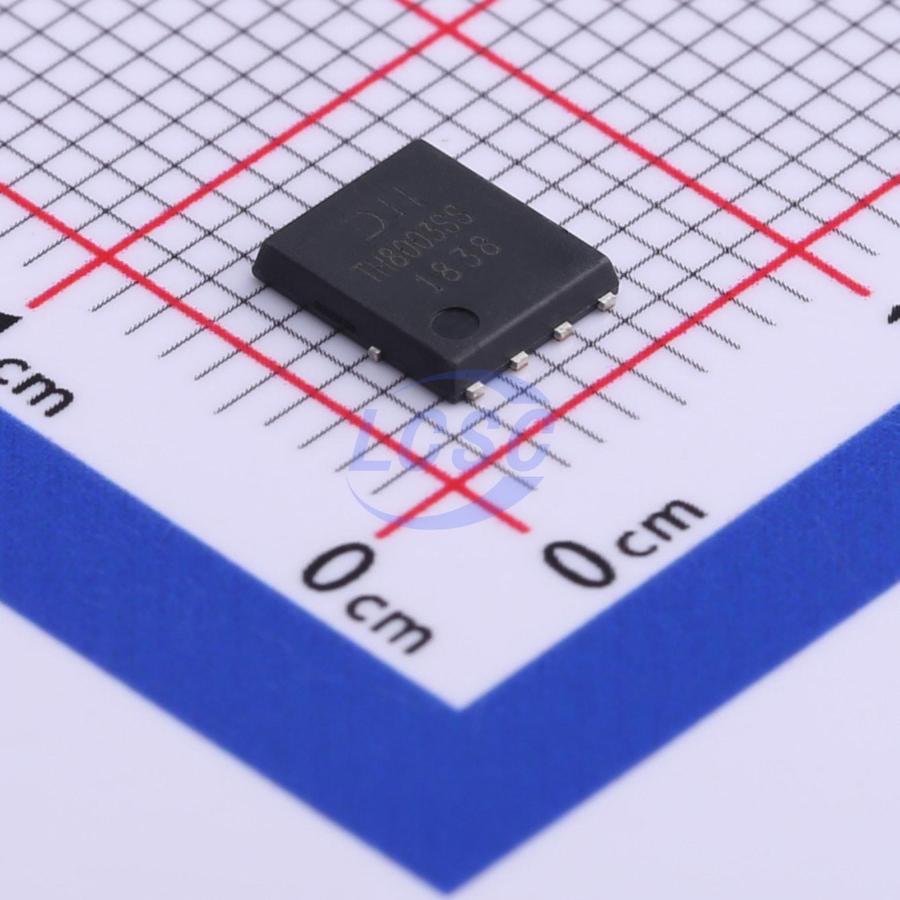

DMTH8003SPS-13
N-Channel 80V 100A 2.9W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 80V 100A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH8003SPS-13
- Store part #
- C434455
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
113 in stock
#C434455
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.06 | ₹207.06 |
| 10+ | ₹177.07 | ₹1,770.70 |
| 30+ | ₹160.56 | ₹4,816.80 |
| 100+ | ₹142.09 | ₹14,209.00 |
| 500+ | ₹133.83 | ₹66,915.00 |
| 1,000+ | ₹130.14 | ₹1,30,140.00 |
1 × ₹207.06
₹207.06
excl. GST
₹244.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH8003SPS-13
₹207.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 8.952nF
- Pd - Power Dissipation
- 2.9W
- RDS(on)
- 3.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 124.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.208 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Switch-Mode Synchronous Rectification DC-DC Converter
Key features
- Rated temperature up to +175℃ — suitable for high ambient temperature environments
- 100% unclamped inductive switching test during production — ensuring greater reliability and durability in end applications
- Thermally efficient package — lower operating temperature in applications
- High conversion efficiency
- Low RDS(ON) — minimized conduction losses
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA8074A#C5128205HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 1,690 | ₹146.51 · 1,690 in stock | View |
 | CMSA040N10#C19724750Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 121 | ₹127.80 · 121 in stock | View |
 | BSC019N08NS5ATMA1#C3279322Infineon · TSON-8-EP(5x6) | Infineon | TSON-8-EP(5x6) | 10 | ₹525.13 · 10 in stock | View |
 | NVMFWS004N10MCT1G#C5208179onsemi · DFNW-5(5x6)(SO-8-FL) | onsemi | DFNW-5(5x6)(SO-8-FL) | 10 | ₹576.09 · 10 in stock | View |
 | DMTH84M1SPSQ-13#C5711791DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 8 | ₹271.96 · 8 in stock | View |
