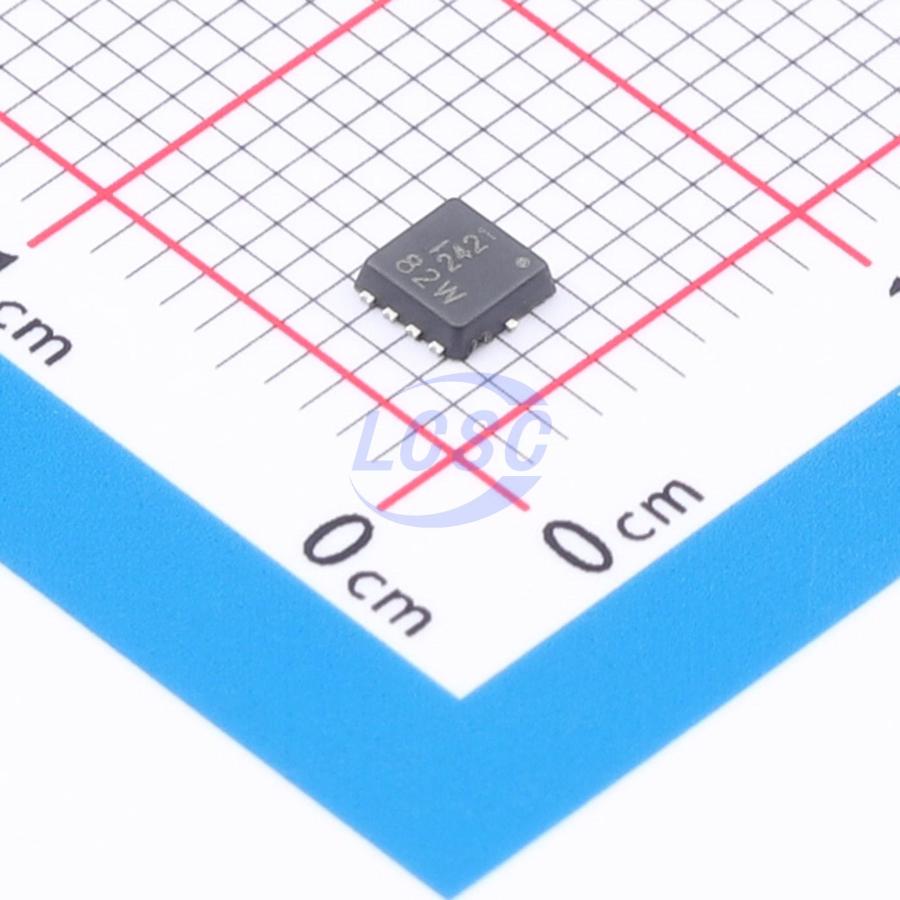

DMTH8028LFVWQ-7
80V 27A 3.5W 25mΩ@10V 1 N-channel PowerDI3333-8 Single FETs, MOSFETs RoHS
PowerDI3333-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH8028LFVWQ-7
- Store part #
- C6540325
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C6540325
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹319.62 | ₹319.62 |
| 10+ | ₹283.08 | ₹2,830.80 |
| 30+ | ₹260.08 | ₹7,802.40 |
| 100+ | ₹236.66 | ₹23,666.00 |
| 500+ | ₹225.90 | ₹1,12,950.00 |
| 1,000+ | ₹221.39 | ₹2,21,390.00 |
1 × ₹319.62
₹319.62
excl. GST
₹377.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMTH8028LFVWQ-7
₹319.62 for 1 + GST
Specifications
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 27A
- Ciss-Input Capacitance
- 631pF
- Pd - Power Dissipation
- 3.5W
- Reverse Transfer Capacitance (Crss)
- 19.5pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.168 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with AEC-Q101 and supports PPAP, making it ideal for the following applications: - Backlighting - Power management - DC-DC converters
Applications
- Backlighting
- Power Management Functions
- DC-DC Converter
Key features
- 100% unclamped inductive switching (UIS) tested during production for enhanced reliability and durability in end applications
- Compact, thermally efficient package enabling higher-density end products
- Solderable side flanks for optical inspection
- Fully lead-free, fully RoHS compliant
- Halogen- and antimony-free "green" device
- DMTH8028LFVWQ is suited for automotive applications requiring specific change control; the device is AEC-Q101 qualified, PPAP capable, and manufactured in an IATF 16949 certified facility.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIS890DN-T1-GE3#C59572VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 95 | ₹308.76 · 95 in stock | View |
 | SISS32LDN-T1-GE3#C3279461VISHAY · PowerPAK1212-8SH | VISHAY | PowerPAK1212-8SH | 45 | ₹295.51 · 45 in stock | View |
 | DMTH10H032LFVW-13#C19949999DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 10 | ₹206.77 · 10 in stock | View |
 | DMTH10H032LFVW-7#C19950000DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 25 | ₹204.42 · 25 in stock | View |
 | DMTH10H032LFVWQ-13#C19950001DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 99 | ₹214.95 · 99 in stock | View |
