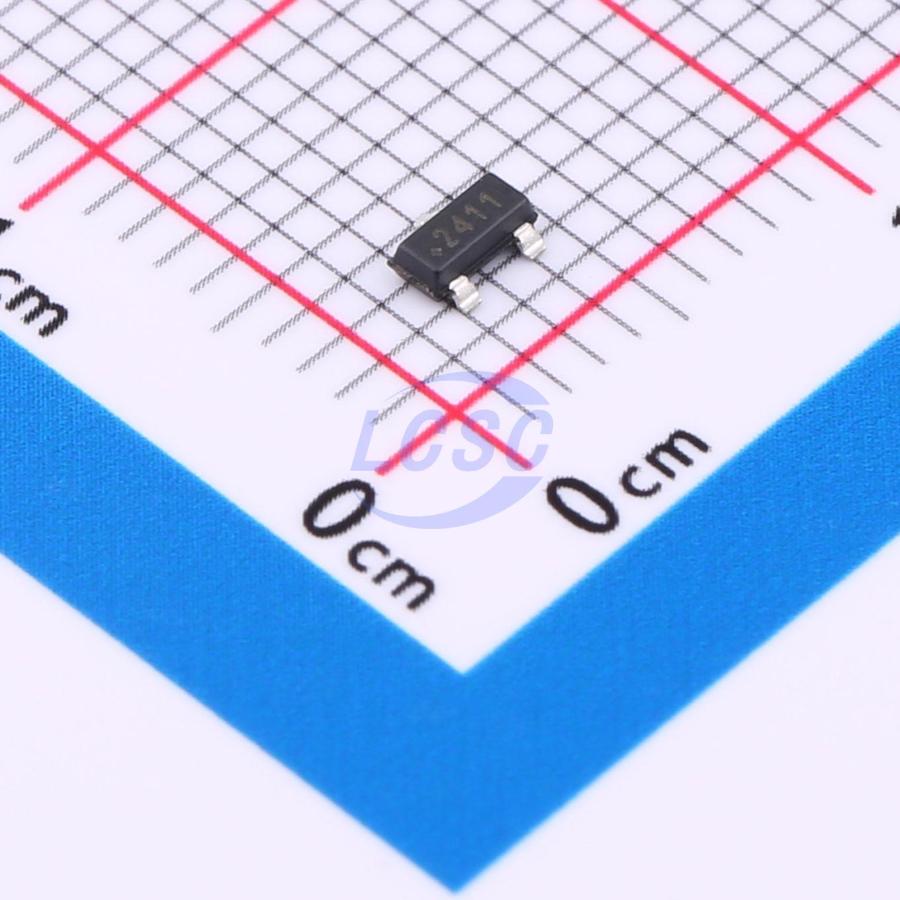

DS2411R+T&R
1-Wire Unique ID SOT-23 Specialized ICs RoHS
Silicon Serial Number with Vcc Input
- Manufacturer
- MAXIM
- Manufacturer part #
- DS2411R+T&R
- Store part #
- C15619
- Package / case
- SOT-23
- Category
- Specialized ICs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,736 in stock
#C15619
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.75 | ₹261.75 |
| 10+ | ₹224.90 | ₹2,249.00 |
| 30+ | ₹201.77 | ₹6,053.10 |
| 100+ | ₹178.11 | ₹17,811.00 |
| 500+ | ₹151.20 | ₹75,600.00 |
| 1,000+ | ₹146.67 | ₹1,46,670.00 |
1 × ₹261.75
₹261.75
excl. GST
₹308.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS2411R+T&R
₹261.75 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- 1-Wire
- Voltage - Supply
- 1.5V~5.25V
- Standby Current (Max)
- 1uA
- Function
- Unique ID
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
The DS2411 silicon serial number is a low-cost, electronic registration number with external power supply. It provides an absolutely unique identity that can be determined with a minimal electronic interface (typically, a single port pin of a microcontroller). The DS2411’s registration number is a factory-lasered, 64-bit ROM that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit family code (01h). Data is transferred serially through the Maxim 1-Wire protocol. The external power supply is required, extending the operating voltage range of the device below typical 1-Wire devices.
Key features
- Unique, Factory-Lasered and Tested 64-Bit Registration Number (8-Bit Family Code Plus 48-Bit Serial Number Plus 8-Bit CRC Tester); Guaranteed No Two Parts Alike
- Standby Current <1μA
- Built-In Multidrop Controller Enables Multiple DS2411s to Reside on a Common 1-Wire Network
- Multidrop Compatible with Other 1-Wire Products
- 8-Bit Family Code Identifies Device as DS2411 to the 1-Wire Master
- Low-Cost TSOC, SOT23-3, and Flip-Chip Surface-Mount Packages
- Directly Connects to a Single-Port Pin of a Microprocessor and Communicates at up to 15.4kbps
- Overdrive Mode Boosts Communication Speed to 125kbps
- Operating Range: 1.5V to 5.25V, -40℃ to +85℃
