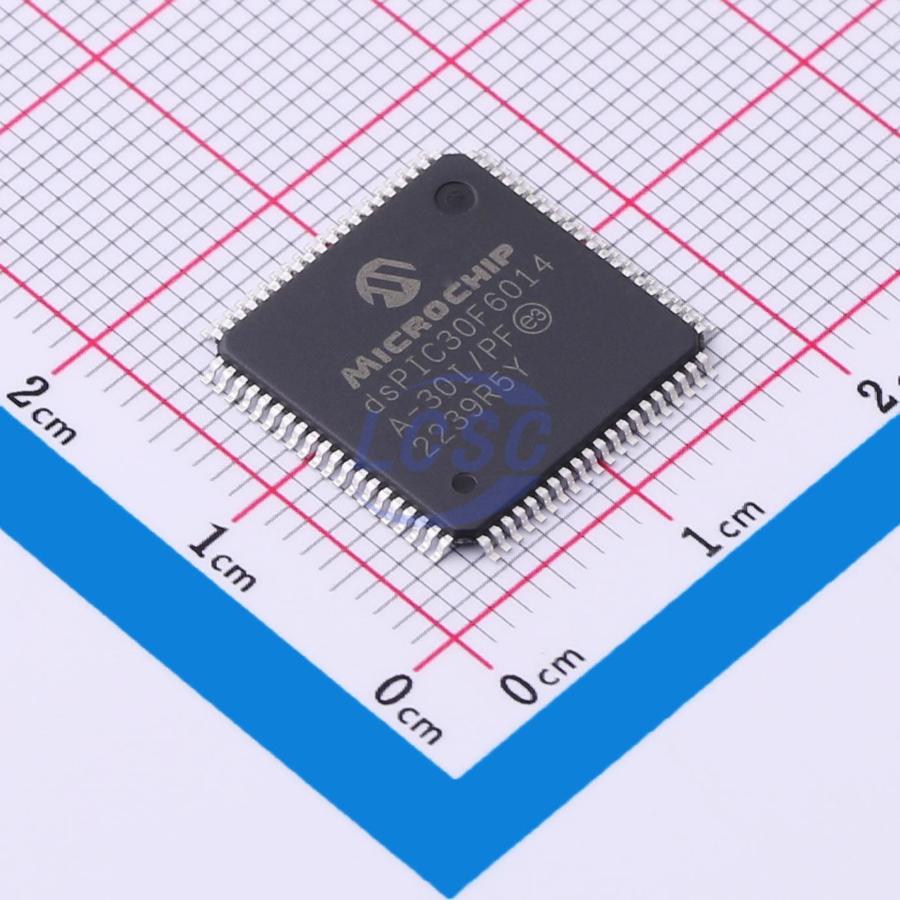

DSPIC30F6014A-30I/PF

TQFP-80(14x14) Microcontrollers RoHS

TQFP-80(14x14)ROHS3 CompliantActive

16-bit Digital Signal Controllers

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C556896

Stock & price checked 3 days ago

Quantity (min 1)

1 × ₹2,477.75

₹2,477.75

excl. GST

₹2,923.75 incl. 18% GST

DSPIC30F6014A-30I/PF

₹2,477.75 for 1 + GST

Specifications

Modified Harvard architecture
C compiler optimized instruction set architecture
Flexible addressing modes
83 base instructions
24-bit wide instructions, 16-bit wide data path
Up to 144 Kbytes on-chip Flash program space
Up to 48K instruction words
Up to 8 Kbytes of on-chip data RAM
Up to 4 Kbytes of nonvolatile data EEPROM
16x16-bit working register array
Up to 30 MIPS operation: DC to 40 MHz external clock input; 4 MHz - 10 MHz oscillator input with PLL active (4x, 8x, 16x)
Up to 41 interrupt sources: Eight user-selectable priority levels; Five external interrupt sources; Four processor traps
Dual data fetch
Modulo and Bit-Reversed modes
Two 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single-cycle hardware fractional/integer multiplier
All DSP instructions are single cycle: Multiply-Accumulate (MAC) operation
Single-cycle ±16 shift
High-current sink/source I/O pins: 25 mA/25 mA
Five 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules
16-bit Capture input functi
