MICROCHIP

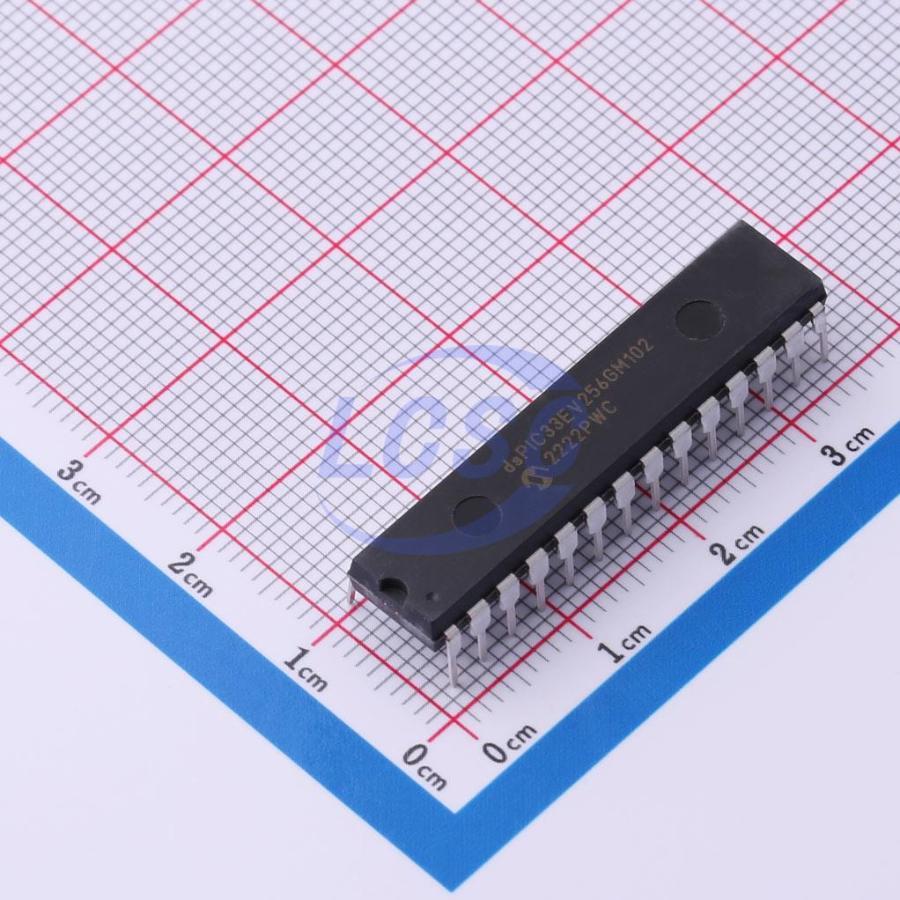

dsPIC33EV256GM102-I/SP

SPDIP-28-300mil Microcontrollers RoHS

SPDIP-28-300milROHS3 CompliantActive

16-Bit Digital Signal Controllers with PWM, SENT, Op Amps and Advanced Analog Features

Manufacturer: MICROCHIP
Manufacturer part #: dsPIC33EV256GM102-I/SP
Store part #: C647294
Package / case: SPDIP-28-300mil
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C647294

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹864.95	₹864.95
10+	₹845.58	₹8,455.80
30+	₹792.40	₹23,772.00
100+	₹779.47	₹77,947.00

Quantity (min 1)

1 × ₹864.95

₹864.95

excl. GST

₹1,020.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 15 per tube

dsPIC33EV256GM102-I/SP

₹864.95 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tube-packed
Standard pack: 15 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 4.4 g

Overview

Applications

DC/DC, AC/DC, inverters, Power Factor Correction (PFC) and lighting
Brushless Direct Current (BLDC), Permanent Magnet Synchronous Motor (PMSM), AC Induction Motor (ACIM), Switched Reluctance Motor (SRM)
Automotive Applications

Key features

Code-Efficient (C and Assembly) Architecture
16-Bit Wide Data Path
Two 40-Bit Wide Accumulators
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle, Mixed-Sign MUL plus Hardware Divide
32-Bit Multiply Support
Intermediate Security for Memory:
Provides a Boot Flash Segment in addition to the existing General Flash Segment
Error Code Correction (ECC) for Flash
Added Two Alternate Register Sets for Fast Context Switching
Up to Six Pulse-Width Modulation (PWM) Outputs (three generators)
Primary Master Time Base Inputs allow Time Base Synchronization from Internal/External Sources
Dead Time for Rising and Falling Edges
7.14 ns PWM Resolution
PWM Support for:
DC/DC, AC/DC, inverters, Power Factor Correction (PFC) and lighting
Brushless Direct Current (BLDC), Permanent Magnet Synchronous Motor (PMSM), AC Induction Motor (ACIM), Switched Reluctance Motor (SRM)
Programmable Fault inputs
Flexible trigger configurations for Analog-to-Digital conversion
Supports PWM lock, PWM output chopping and dynamic phase shifting
Internal, 15% Low-Power RC (LPRC) - 32 kHz
Internal, 1% Fast RC (FRC) - 7.37 MHz
Internal, 10% Backup FRC (BFRC) - 7.37 MHz
Programmable PLLs and Oscillator Clock Sources
Fail-Safe Clock Monitor (FSCM)
Additional FSCM Source (BFRC), Intended to Provide a Clock Fail Switch Source for the System Clock
Independent Watchdog Timer (WDT)
System Windowed Watchdog Timer (DMT)
Fast Wake-up and Start-up
ADC module:
Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
Up to 36 analog inputs
Flexible and Independent ADC Trigger Sources
Up to Four Op Amp/Comparators with Direct Connection to the ADC module:
Additional dedicated comparator and 7-bit Digital-to-Analog Converter (DAC)
Two comparator voltage reference outputs
Programmable references with 128 voltage points
Programmable blanking and filtering
Charge Time Measurement Unit (CTMU):
Supports mTouch capacitive touch sensing
Provides high-resolution time measurement (1 ns)
On-chip temperature measurement
Temperature sensor diode
Nine sources of edge input triggers (CTED1, CTED2, OCPWM, TMR1, SYSCLK, OSCLK, FRC, BFRC and LPRC)
Low-Power Management modes (Sleep, Idle and Doze)
Power Consumption Minimized Executing NOP String
Integrated Power-on Reset (POR) and Brown-out Reset (BOR)
0.5 mA/MHz Dynamic Current (typical)
50 μA at +25°C IPD Current (typical)
Nine General Purpose Timers:
Five 16-bit and up to two 32-bit timers/counters; Timer3 can provide ADC trigger
Four Output Compare modules Configurable as Timers/Counters
Four Input Capture modules
Two Enhanced Addressable Universal Asynchronous Receiver/Transmitter (UART) modules (6.25 Mbps):
With support for LIN/J2602 bus and IrDA
High and low speed (SCI)
Two SPI modules (15 MHz):
25 MHz data rate without using PPS
One I²C module (up to 1 Mbaud) with SMBus Support
Two SENT J2716 (Single-Edge Nibble Transmission- Transmit/Receive) module for Automotive Applications
One CAN module:
32 buffers, 16 filters and 3 masks
Direct Memory Access (DMA):
Four-Channel DMA with User-Selectable Priority Arbitration
UART, Serial Peripheral Interface (SPI), ADC, Input Capture, Output Compare and Controller Area Network (CAN)
Input/Output:
GPIO Registers to Support Selectable Slew Rate I/Os
Peripheral Pin Select (PPS) to allow Function Remap
Sink/Source: 8 mA or 12 mA, Pin-Specific for Standard VOH/VOL
Selectable Open-Drain, Pull-ups and Pull-Downs
Change Notice Interrupts on All I/O Pins
AEC-Q100 REVG (Grade 1: -40°C to +125°C Compliant)
AEC-Q100 REVG (Grade 0: -40°C to +150°C Compliant)
Class B Safety Library, IEC 60730
Class B Fault Handling Support:
Backup FRC
Windowed WDT uses LPRC
Windowed Deadman Timer (DMT) uses System Clock (System Windowed Watchdog Timer)
H/W Clock Monitor Circuit
Oscillator Frequency Monitoring through CTMU (OSCI, SYSCLK, FRC, BFRC, LPRC)
Dedicated PWM Fault Pin
Lockable Clock Configuration
Debugger Development Support:
In-Circuit and In-Application Programming
Three Complex and Five Simple Breakpoints
Trace and Run-Time Watch
