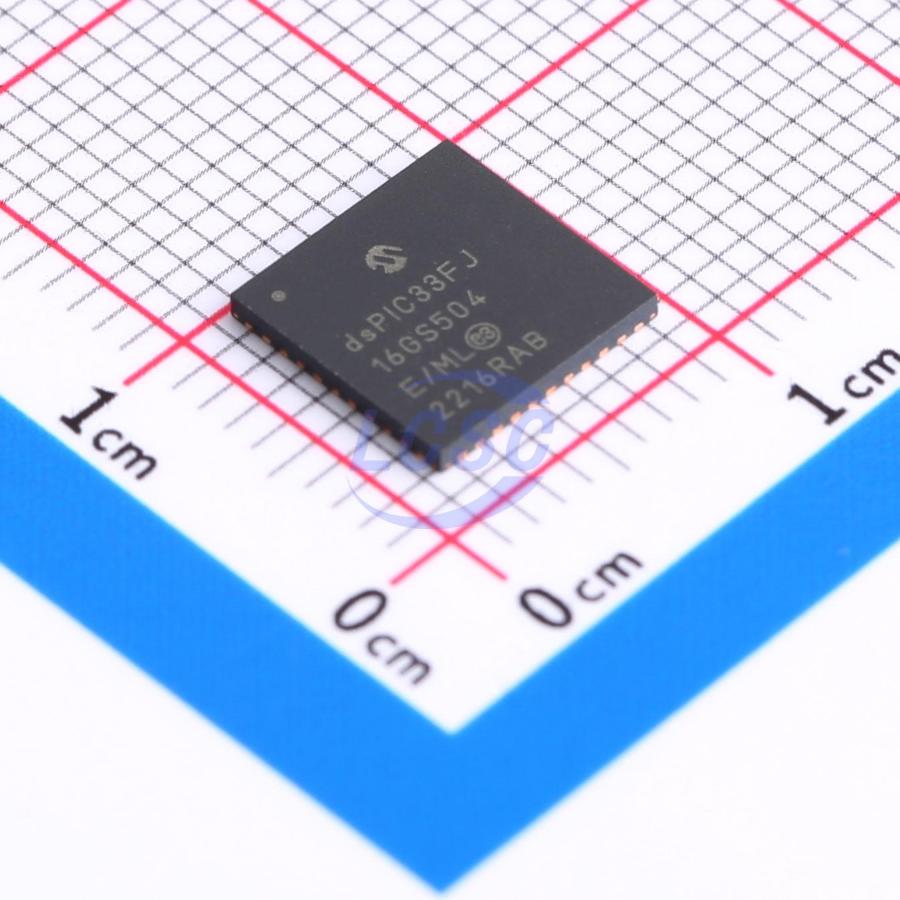

dsPIC33FJ16GS504-E/ML

Key features

• 3.0V to 3.6V, - 40°C to +150°C, DC to 20 MIPS
• 3.0V to 3.6V, - 40°C to +125°C, DC to 40 MIPS
• 3.0V to 3.6V, - 40°C to +85°C, DC to 50 MIPS
• Code-Efficient (C and Assembly) Architecture
• Two 40-Bit Wide Accumulators
• Single-Cycle (MAC/MPY) with Dual Data Fetch
• Single-Cycle Mixed-Sign MUL plus Hardware Divide
• 32-Bit Multiply Support
• ± 2.0% Internal Oscillator
• Programmable PLLs and Oscillator Clock Sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer (WDT)
• Fast Wake-up and Start-up
• Low-Power Management modes (Sleep, Idle, Doze)
• Integrated Power-on Reset and Brown-out Reset
• Up to Four PWM Pairs with Independent Timing
• Dead Time for Rising and Falling Edges
• 1.04 ns PWM Resolution
• PWM Support for: DC/DC, AC/DC, Inverters, PFC and Lighting
• Programmable Fault Inputs
• Flexible Trigger Configurations for ADC Conversions
• ADC module: 10-bit resolution with up to 2 Successive Approximation Register (SAR) converters (4 Msps) and up to six Sample-and-Hold (S&H) circuits
• Up to 12 input channels grouped into six conversion pairs, plus two voltage reference monitoring inputs
• Dedicated result buffer for each analog channel
• Flexible and Independent ADC Trigger Sources
• Up to Four High-Speed Comparators with Direct Connection to the PWM module: Programmable references with 1024 voltage points
• Three General Purpose Timers: Three 16-bit and one 32-bit timer/counter
• Two Output Compare (OC) modules
• Two Input Capture (IC) modules
• Peripheral Pin Select (PPS) to allow Function Remap
• UART module (12.5 Mbps): With support for LIN/J2602 protocols and IrDA
• 4-Wire SPI module
• I²C module (up to 1 Mbaud) with SMBus Support
• PPS to allow Function Remap
• Sink/Source 18 mA on 8 Pins, 10 mA on 10 Pins and 6 mA on 17 Pins
• 5V Tolerant Pins
• Selectable Open-Drain and Pull-ups
• External Interrupts on up to 30 I/O Pins
• AEC-Q100 REVG (Grade 1, - 40°C to +125°C)
• AEC-Q100 REVG (Grade 0, - 40°C to +150°C)
• Class B Safety Library, IEC 60730, VDE Certified
• 6x6x0.5 mm UQFN Package Designed and Optimized to ease IPC9592A and Level Temperature Cycle Qualification
• In-Circuit and In-Application Programming
• Two Breakpoints
• IEEE 1149.2-Compatible (JTAG) Boundary Scan
• Trace and Run-Time Watch
