MICROCHIP

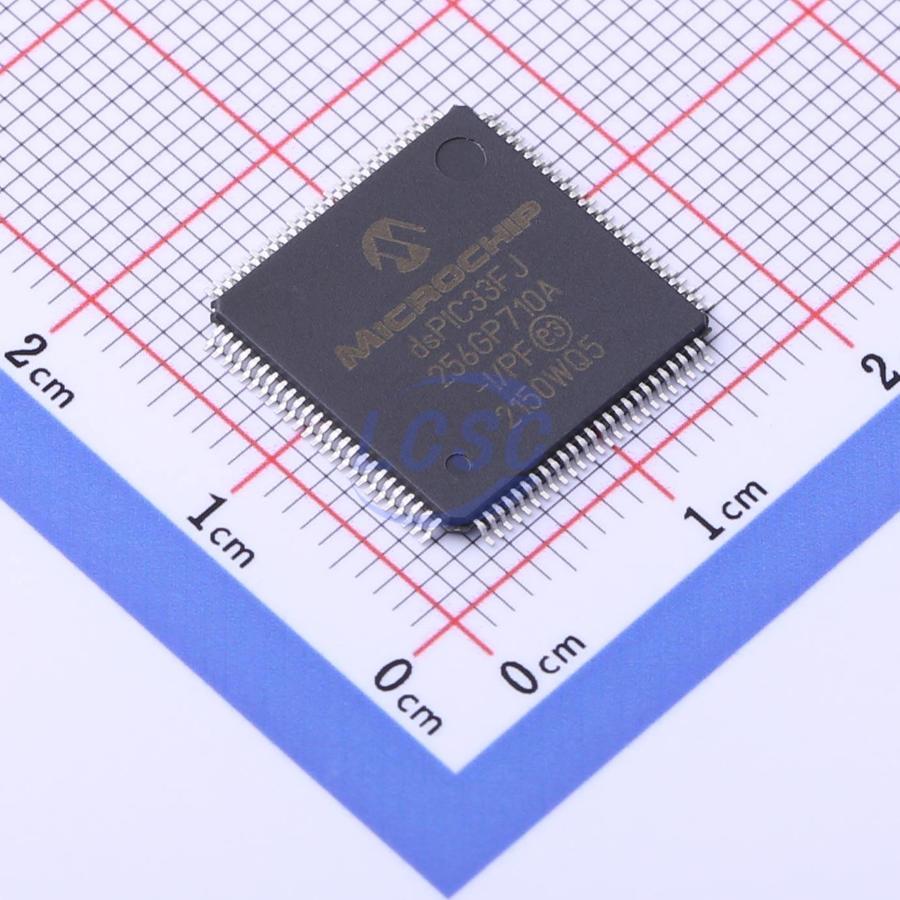

DSPIC33FJ256GP710A-I/PF

TQFP-100(14x14) Microcontrollers RoHS

TQFP-100(14x14)ROHS3 CompliantActive

16-bit Digital Signal Controllers (up to 256 KB Flash and 30 KB SRAM) with Advanced Analog

Manufacturer: MICROCHIP
Manufacturer part #: DSPIC33FJ256GP710A-I/PF
Store part #: C1337562
Package / case: TQFP-100(14x14)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

749 in stock

#C1337562

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,606.92	₹1,606.92
10+	₹1,531.52	₹15,315.20
30+	₹1,389.84	₹41,695.20
90+	₹1,275.76	₹1,14,818.40

Quantity (min 1)

1 × ₹1,606.92

₹1,606.92

excl. GST

₹1,896.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 90 per tray

DSPIC33FJ256GP710A-I/PF

₹1,606.92 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991A2
Packaging: Tray
Standard pack: 90 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1.395 g

Overview

Applications

16-bit MCU embedded applications
speech and audio processing applications

Key features

Code-efficient (C and Assembly) architecture
Two 40-bit wide accumulators
Single-cycle (MAC/MPY) with dual data fetch Single-cycle mixed-sign MUL plus hardware divide
±2% internal oscillator
Programmable PLLs and oscillator clock sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer (WDT)
Fast wake-up and start-up
Low-power management modes (Sleep, Idle, Doze)
Integrated Power-on Reset and Brown-out Reset
2.1 mA/MHz dynamic current (typical)
50 μA IPD current (typical)
Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices
Flexible and independent ADC trigger sources
Up to nine 16-bit timers/counters. Can pair up to make four 32-bit timers. Eight Output Compare modules configurable as timers/counters
Eight Input Capture modules
Two UART modules (10 Mbps) - With support for LIN 2.0 protocols and IrDA
Two 4-wire SPI modules (15 Mbps)
Up to two I²C modules (up to 1 Mbaud) with SMBus support
Up to two Enhanced CAN (ECAN) modules (1 Mbaud) with 2.0B support
Data Converter Interface (DCI) module with I²S codec support
Sink/Source up to 10 mA (pin specific) for standard VOH/VOL, up to 16 mA (pin specific) for non-standard VOH1
5V-tolerant pins
Selectable open drain, pull-ups, and pull-downs
Up to 5 mA overvoltage clamp current
External interrupts on all I/O pins
AEC-Q100 REVG (Grade 1 -40°C to +125°C)
AEC-Q100 REVG (Grade 0 -40°C to +150°C)
Class B Safety Library, IEC 60730
In-circuit and in-application programming
Two program and two complex data breakpoints
IEEE 1149.2-compatible (JTAG) boundary scan
Trace and run-time watch
