DIODESDatasheet (PDF)

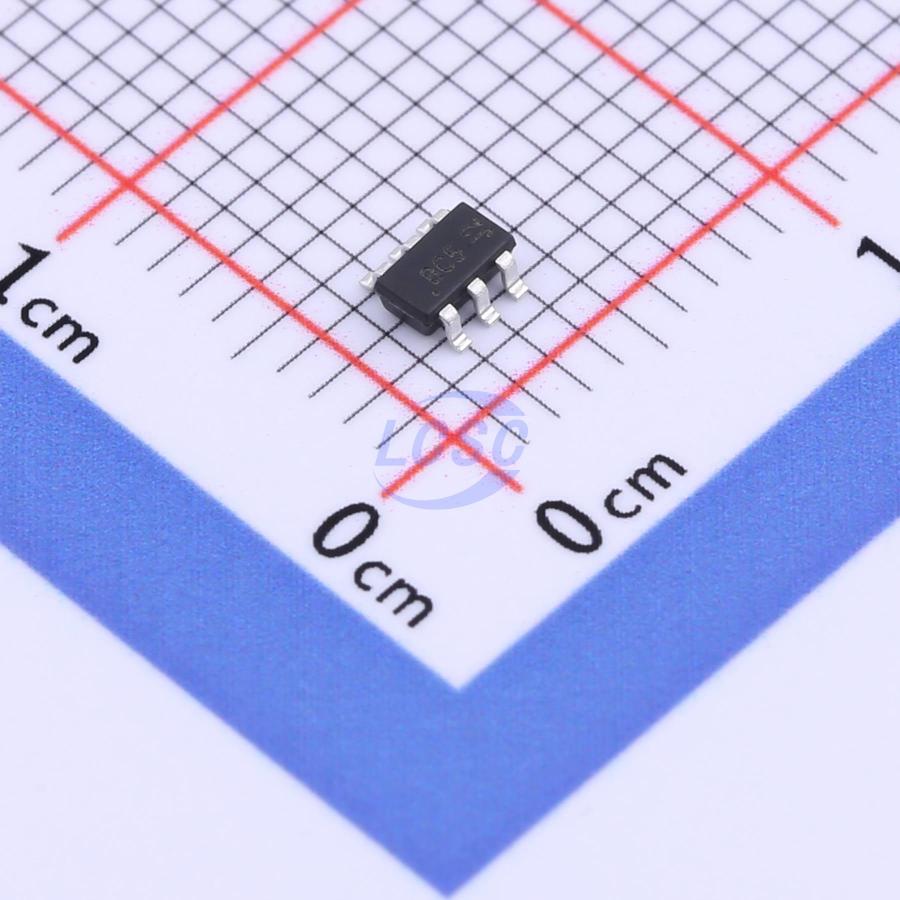

DT2042-04SO-7
10.5VC Clamp ESD DIODE SOT-26
SOT-26ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DT2042-04SO-7
- Store part #
- C526600
- Package / case
- SOT-26
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C526600
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.32 | ₹121.60 |
| 50+ | ₹23.81 | ₹1,190.50 |
| 150+ | ₹23.48 | ₹3,522.00 |
| 500+ | ₹23.14 | ₹11,570.00 |
5 × ₹24.32
₹121.60
excl. GST
₹143.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DT2042-04SO-7
₹121.60 for 5 + GST
Specifications
- Clamping Voltage
- 10.5V
- Operating Temperature
- -55℃~+85℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 105W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
