DIODES

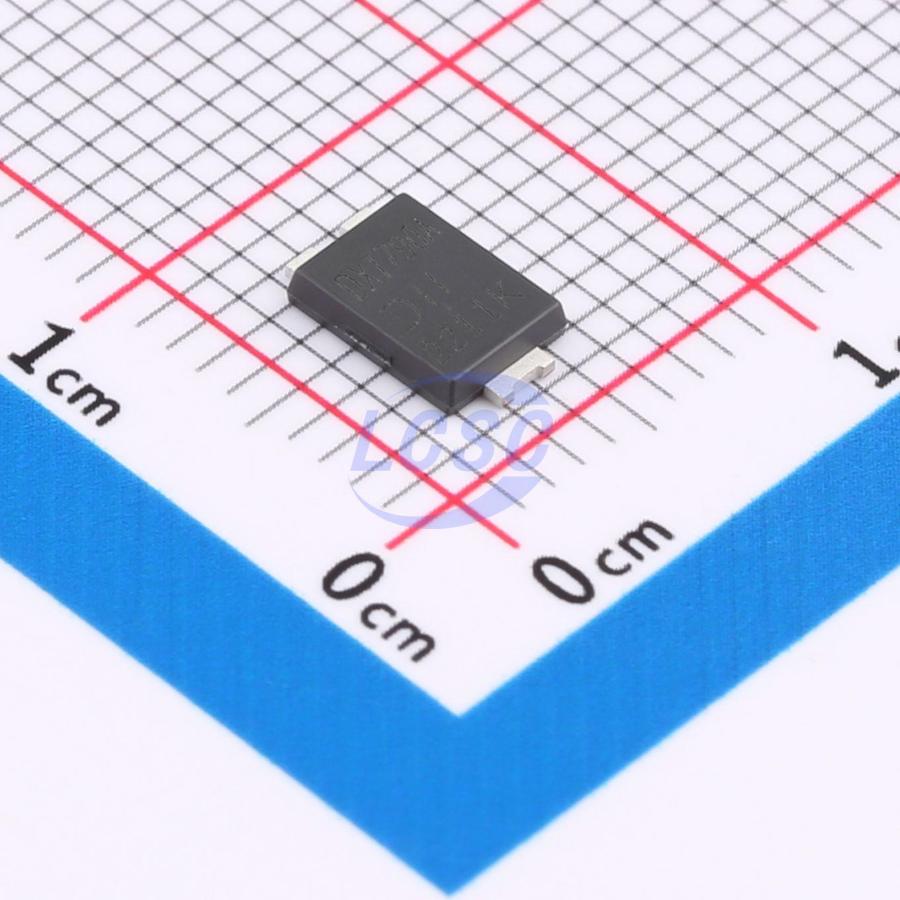

DXT790AP5-13

Bipolar (BJT) Transistor PNP 40V 3A 100MHz 3.2W PowerDI-5

PowerDI-5ROHS3 CompliantActive

TRANS PNP 40V 3A PowerDI-5

Manufacturer: DIODES
Manufacturer part #: DXT790AP5-13
Store part #: C672304
Package / case: PowerDI-5
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

500 in stock

#C672304

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹96.27	₹96.27
10+	₹78.02	₹780.20
30+	₹69.11	₹2,073.30
100+	₹59.98	₹5,998.00
500+	₹54.55	₹27,275.00
1,000+	₹51.94	₹51,940.00

Quantity (min 1)

1 × ₹96.27

₹96.27

excl. GST

₹113.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

DXT790AP5-13

₹96.27 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 20nA
Transition frequency(fT): 100MHz
Collector - Emitter Voltage VCEO: 40V
Emitter-Base Voltage VEBO: 6V
DC Current Gain: 80
Current - Collector(Ic): 3A
Pd - Power Dissipation: 3.2W
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 450mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.19 g

Overview

Key features

BVCEO >-40V
IC =-3A high Continuous Collector Current
ICM =-6 A Peak Pulse Current
43% smaller than SOT223; 60% smaller than TO252
Maximum Height Just 1.1mm
Rated up to 3.2W
Low Saturation, High Gain Transistor
Totally Lead-Free & Fully RoHS compliant
Halogen and Antimony Free. "Green" Device
Qualified to AEC-Q101 Standards for High Reliability
