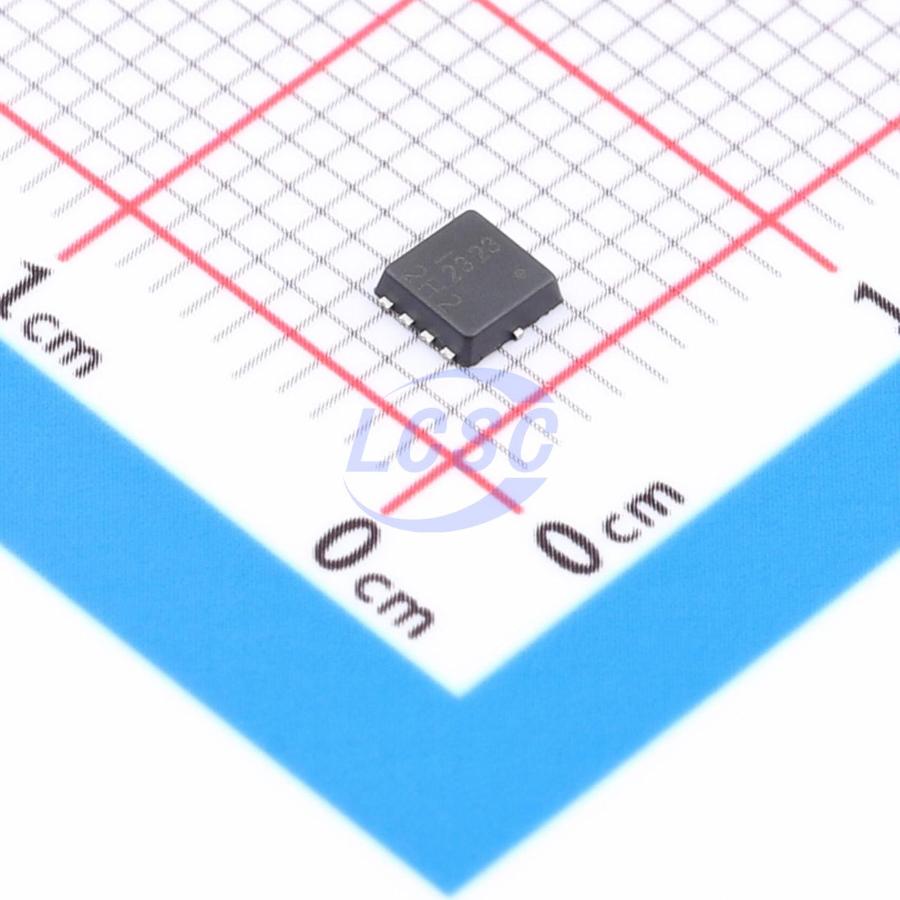

DXTN07025BFG-7
25V 198 3A 1 NPN NPN PowerDI3333-8 Single Bipolar Transistors RoHS
PowerDI3333-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DXTN07025BFG-7
- Store part #
- C6941166
- Package / case
- PowerDI3333-8
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
165 in stock
#C6941166
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.52 | ₹145.52 |
| 10+ | ₹120.59 | ₹1,205.90 |
| 30+ | ₹107.90 | ₹3,237.00 |
| 100+ | ₹95.44 | ₹9,544.00 |
| 500+ | ₹88.13 | ₹44,065.00 |
| 1,000+ | ₹84.26 | ₹84,260.00 |
1 × ₹145.52
₹145.52
excl. GST
₹171.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DXTN07025BFG-7
₹145.52 for 1 + GST
Specifications
- Current - Collector Cutoff
- 20nA
- Operating Temperature
- -55℃~+175℃
- Transition frequency(fT)
- 240MHz
- Collector - Emitter Voltage VCEO
- 25V
- Emitter-Base Voltage VEBO
- 8.4V
- DC Current Gain
- 198
- Pd - Power Dissipation
- 900mW
- Current - Collector(Ic)
- 3A
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 400mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.116 g
Overview
Applications
- Load Switch
- Linear Regulator
Key features
- BVCEO > 25 V
- Small Form Factor Thermally Efficient Package. Enables Higher Density End Products
- IC = 3 A High Continuous Current
- ICM = 8 A Peak Pulse Current
- Low Saturation Voltage VCE(SAT) < 200 mV @ 1 A
- Complementary PNP Type: DXTP07025BFG
- Rated to +175°C- Ideal For High Temperature Environment
- Wettable Flank For Improved Optical Inspection
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
