Everanalog IC designDatasheet (PDF)

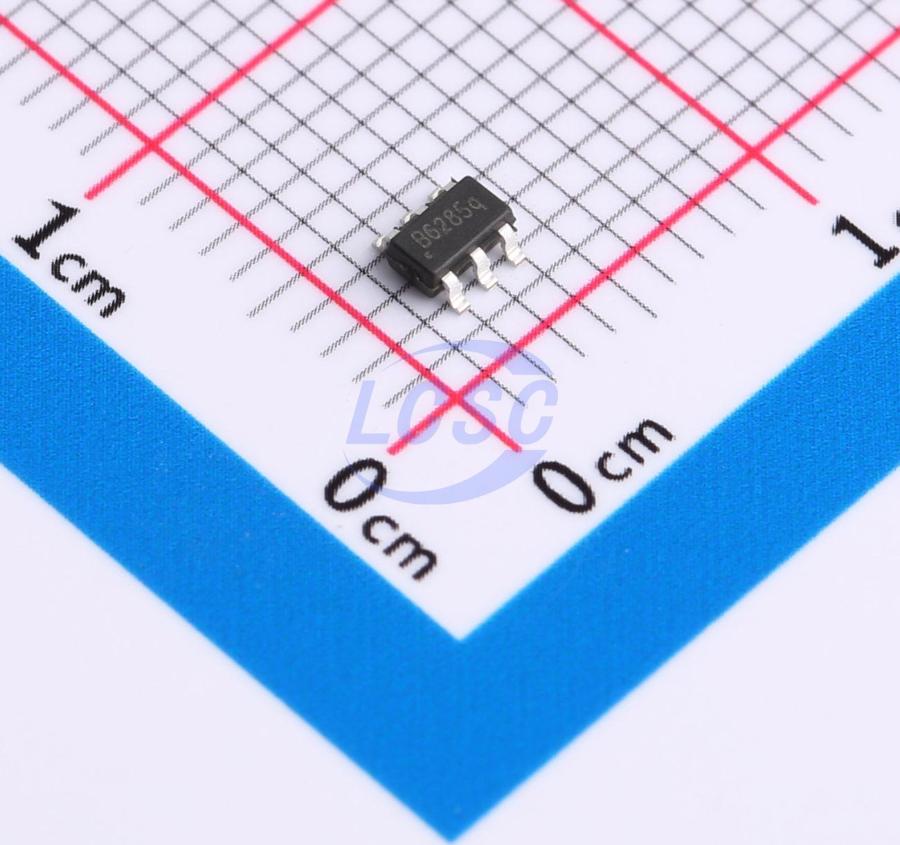

EA2208T6R
1.2MHz Boost Adjustable 3A 600mV~28V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
3A, 1.2MHz High Efficiency Step-Up Converter
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA2208T6R
- Store part #
- C2961138
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,130 in stock
#C2961138
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.58 | ₹77.90 |
| 50+ | ₹12.65 | ₹632.50 |
| 150+ | ₹11.02 | ₹1,653.00 |
| 500+ | ₹10.04 | ₹5,020.00 |
| 6,000+ | ₹8.75 | ₹52,500.00 |
| 9,000+ | ₹8.61 | ₹77,490.00 |
5 × ₹15.58
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA2208T6R
₹77.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2V~24V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 600mV~28V
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The EA2208 is a constant frequency, current mode step- up converter intended for small, low power applications. The EA2208 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft- start results in small inrush current and extends battery life. The EA2208 features automatic shifting to pulse frequency modulation mode at light loads. The EA2208 includes under- voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The EA2208 is available in a small 6 pin SOT- 23 package.
Applications
- Battery-Powered Equipment
- Set-Top-Box
- LCD TVs and Flat TVs
- DSL and Cable Modems
Key features
- Built-in Low RDS(ON) Power-MOSFETS
- 2V to 24V Input Voltage Range
- Fixed 1.2MHz Switching Frequency
- Internal 3.5A Switch Current Limit
- Adjustable Output Voltage
- Internal Compensation
- Up to 28V Output Voltage
- Automatic Pulse Frequency Modulation Mode at Light Loads
- Up to 96% Efficiency
- Available in SOT23-6 Package
