Everanalog IC design

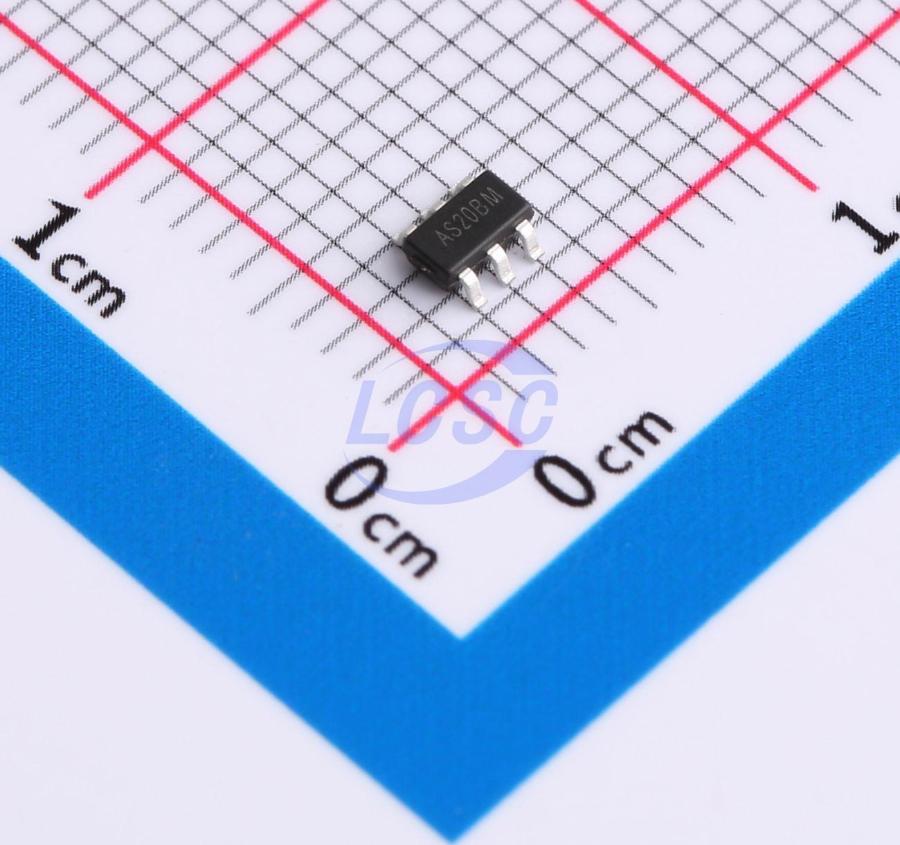

EA8105T6R

1.5MHz Step-down type Adjustable 600mV~5.5V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS CompliantActive

2A, 1.5MHz High Efficiency Buck Converter

Manufacturer: Everanalog IC design
Manufacturer part #: EA8105T6R
Store part #: C691400
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,360 in stock

#C691400

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.85	₹88.50
100+	₹6.88	₹688.00
300+	₹5.89	₹1,767.00
3,000+	₹5.27	₹15,810.00
6,000+	₹4.67	₹28,020.00
9,000+	₹4.38	₹39,420.00

Quantity (min 10, multiples of 10)

10 × ₹8.85

₹88.50

excl. GST

₹104.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EA8105T6R

₹88.50 for 10 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Function: Step-down type
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 2A
Quiescent Current: 40uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.024 g

Overview

The EA8105 is a high switching frequency, high efficiency synchronous buck regulator, designed to operate from 2.7V to 5.5V input voltage range. Built-in low RDS(ON) high/low side Power-MOSFETS not only reduce external components and has up to 95% efficiency, ideal for 2A output current applications. The EA8105 features 100% duty cycle low dropout operation, extending battery life in portable systems. Besides, this device is designed to take into account the light load mode operation and can provide high efficiency over a wide range of the load current. The internal compensation design not only allows users to more simplified application, and can reduce the cost of external components. The EA8105 is available in the SOT-23-6 package and easy to use.
