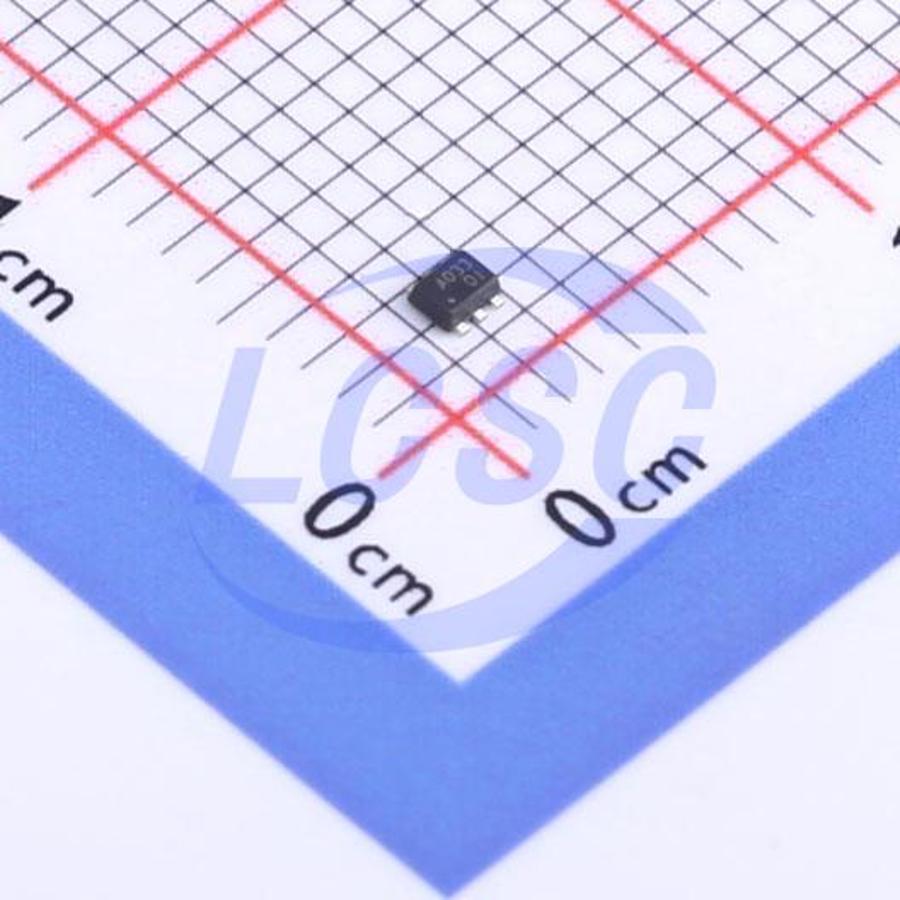

Everanalog IC design

EA8273T7R

600kHz Step-down type Adjustable 600mV~9V 3A SOT-563 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-563ROHS CompliantActive

16V, 3A, 600KHz Synchronous Buck Converter

Manufacturer: Everanalog IC design
Manufacturer part #: EA8273T7R
Store part #: C5241145
Package / case: SOT-563
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,285 in stock

#C5241145

Stock & price checked 44 h ago

Quantity	Unit price	Pack price
5+	₹17.62	₹88.10
50+	₹14.02	₹701.00
150+	₹12.24	₹1,836.00
500+	₹10.89	₹5,445.00
3,000+	₹9.35	₹28,050.00
6,000+	₹8.81	₹52,860.00

Quantity (min 5, multiples of 5)

5 × ₹17.62

₹88.10

excl. GST

₹103.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EA8273T7R

₹88.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 600kHz
Number of Outputs: 1
Function: Step-down type
Features: Overcurrent Protection;Hiccup current limiting
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~16V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~9V
Output Current: 3A
Quiescent Current: 350uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.008 g

Overview

The EA8273 is a 3A buck regulator, designed to operate from 4.5V to 16V input voltage range. Built-in low RDS(ON) high/low side Power-MOSFETS not only reduce external components and has highly efficiency, ideal for 3A output current applications. The EA8273 applies Constant On-Time control architecture and can provide fast transient response. The EA8273 has complete protection functions, including short circuit protection, OCP, OTP and UVLO protection. The EA8273 is available in the SOT-563 package and easy to use.
