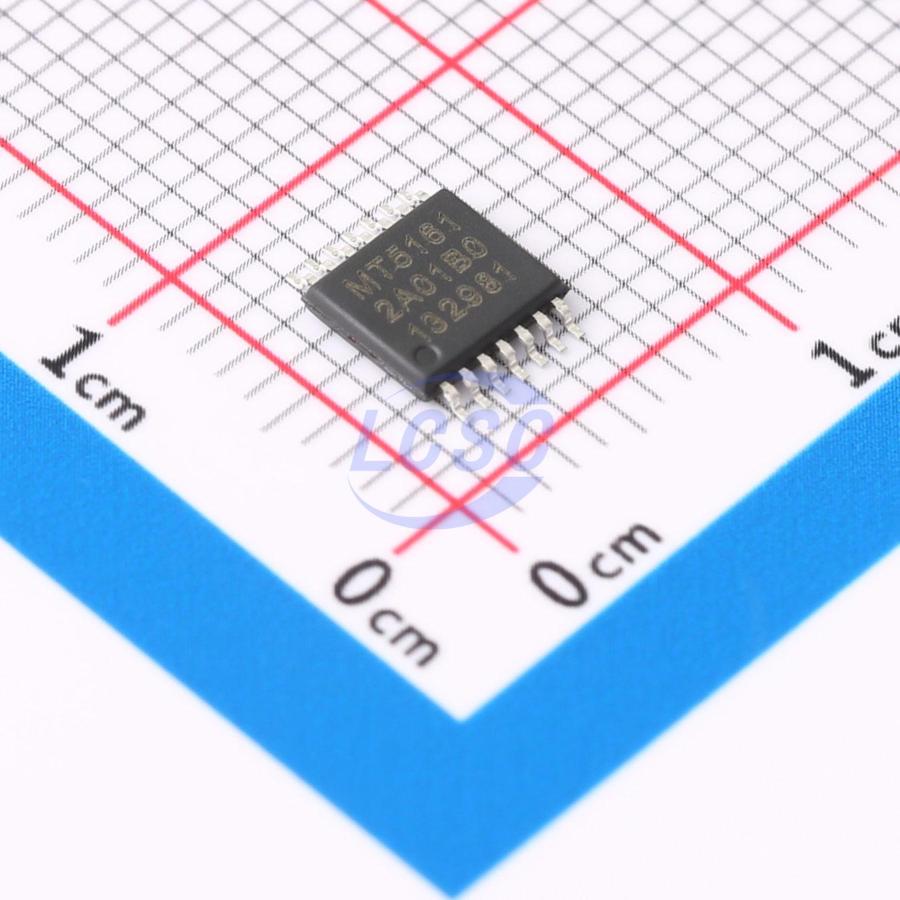

EA8961SCR
Step-down type Adjustable 1A TSSOP-14L-EP Voltage Regulators - DC DC Switching Regulators RoHS
TSSOP-14L-EPROHS CompliantActive
100V 1A COT Mode Buck Converter
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA8961SCR
- Store part #
- C7432758
- Package / case
- TSSOP-14L-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,324 in stock
#C7432758
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.51 | ₹67.51 |
| 10+ | ₹53.03 | ₹530.30 |
| 30+ | ₹46.85 | ₹1,405.50 |
| 100+ | ₹39.19 | ₹3,919.00 |
| 500+ | ₹35.56 | ₹17,780.00 |
| 1,000+ | ₹33.66 | ₹33,660.00 |
1 × ₹67.51
₹67.51
excl. GST
₹79.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA8961SCR
₹67.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 300kHz;1MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Adjustable soft-start;Light load efficient mode;Built-in LDO regulator;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5V~100V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 1.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.103 g
Overview
The EA8961 is a 100V, 1A, COT mode buck converter. Built-in high/low side Power-MOSFETs has high efficiency at light load and heavy load. COT mode operation provides very fast transient response. The EA8961 output voltage accuracy is ±2% over the full temperature range. The EA8961 has complete protection functions, including peak current limit, OTP and UVLO protection. The EA8961 operation mode can be set by using FPWM pin. The device can works in CCM mode over full output loading current range or works in DCM mode at light loading current. The EA8961 can be designed as a buck-boost architecture to generate a negative voltage output. At this time, the reference voltage of the device is not GND but the negative voltage output, so the input range is VIN+|VOUT|.
Applications
- IGBT Gate Driver Power Supply
- Industrial Programmable Logic Controller
- Telecom DC/DC Power Supply
- Power Line Communication
Key features
- 5V to 100V Input Voltage Range
- Built-in High/Low Side Power MOSFETs
- 1A Continuous Load Current
- ±2% Output Voltage Accuracy
- COT Mode Operation & Fast Transient Response
- Programmable Light Load operation (CCM or DCM)
- Nearly Constant Switching Frequency (Maximum 1MHz)
- Programmable Soft-Start Function
- Peak Current Limit
- Input UVLO Protection
- Auto Recovery OTP Protection
