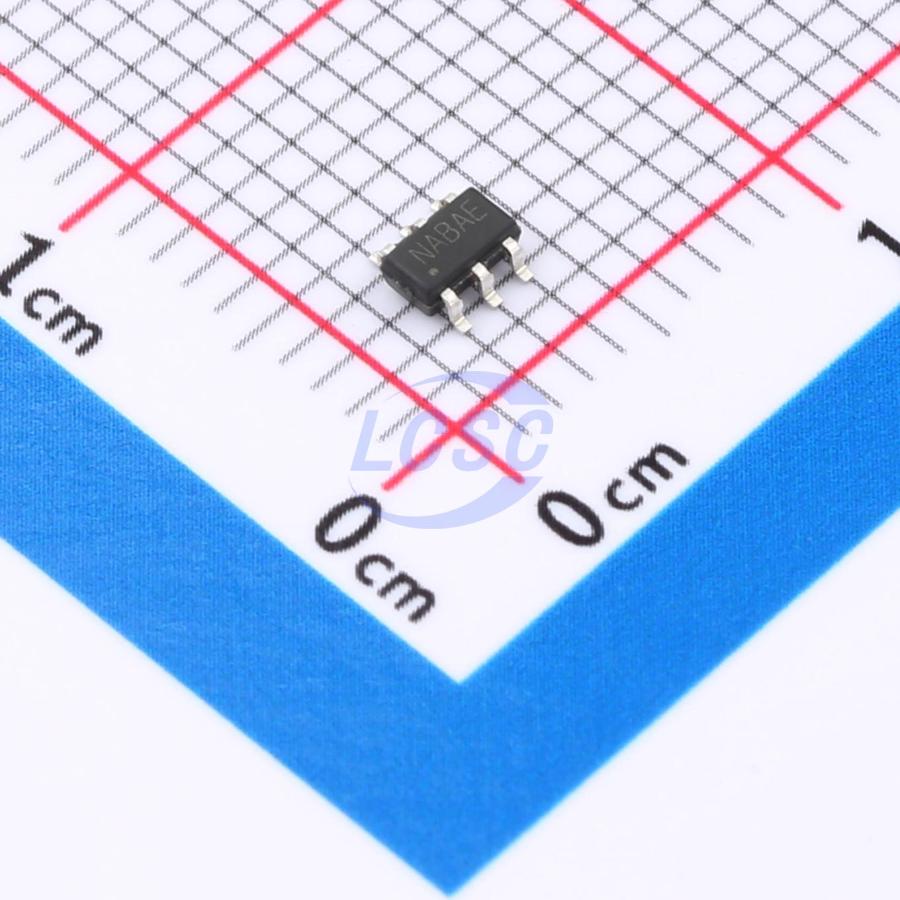

Everanalog IC designDatasheet (PDF)
EA9204
Buck Switching Regulator IC Adjustable 1 Output 1.5A SOT-23-6
SOT-23-6ROHS CompliantActive
30V 1.5A 1.4MHz Synchronous BUCK
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA9204
- Store part #
- C47866879
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,960 in stock
#C47866879
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.95 | ₹64.75 |
| 50+ | ₹10.15 | ₹507.50 |
| 150+ | ₹8.75 | ₹1,312.50 |
| 500+ | ₹7.70 | ₹3,850.00 |
| 3,000+ | ₹6.85 | ₹20,550.00 |
| 6,000+ | ₹6.43 | ₹38,580.00 |
5 × ₹12.95
₹64.75
excl. GST
₹76.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA9204
₹64.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 1MHz~2MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 13mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.104 g
Overview
EA9204 is a low-EMI, asynchronous, integrated power MOSFET, switching-mode buck converter. It delivers a compact solution with 1.5A continuous output current over a wide input voltage range, featuring excellent load and line regulation. The device achieves low EMI through well-controlled switching edges. Fault protection includes programmable output overvoltage protection, constant on-time mode, and thermal shutdown. The EA9204 requires minimal standard external components and is available in a SOT23-6 package.
Applications
- Automotive infotainment systems
- Wireless and DSL modems
- Computer entertainment systems
- Power supply for DVR/DVB/industrial PCs
Key features
- Wide input voltage range: 4.0V to 33V
- 1.5A continuous output current
- 1.5MHz switching frequency
- Short-circuit protection with hiccup mode
- Internal overcurrent limiting
- Overvoltage protection
- Continuous conduction mode for low noise
- Integrated internal soft-start
- 180/130mΩ low on-resistance internal MOSFETs
- Adjustable output voltage from 0.8V
- Low EMI characteristics
- 98.5% duty cycle
- Integrated internal compensation
- Thermal shutdown
- Available in SOT23-6 package
- Constant on-time mode
