KEMET

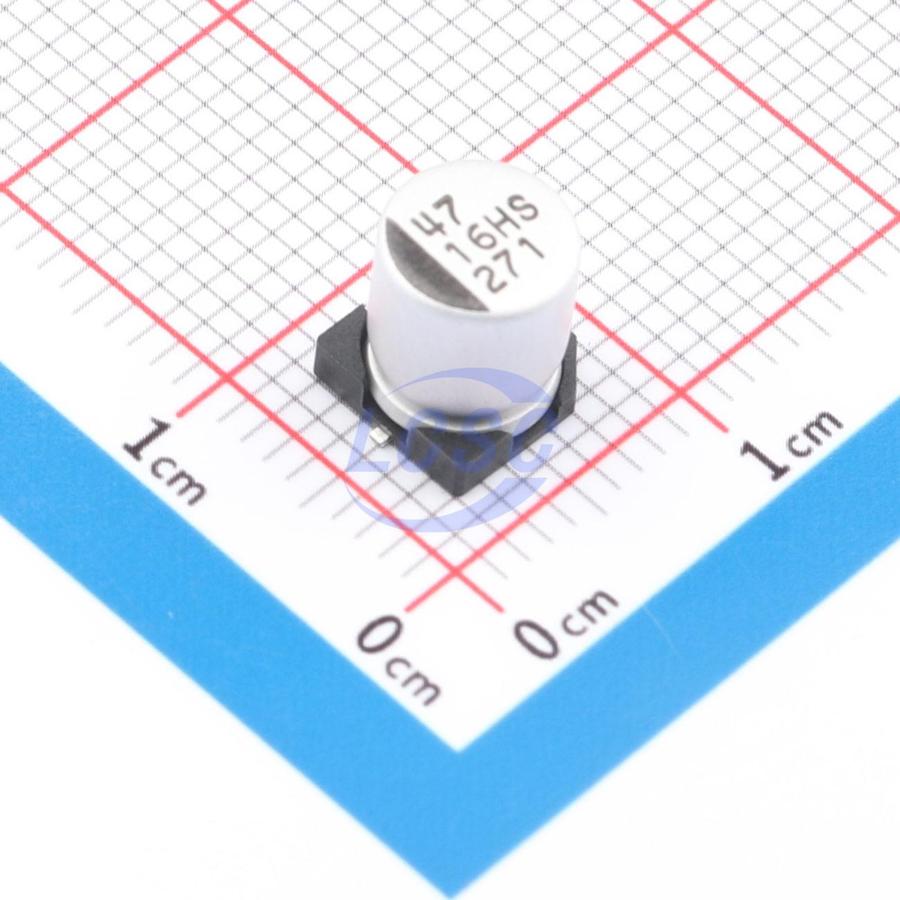

EDT476M016S9HAA

±20% 16V 47uF SMD,D6.3xL8mm Aluminum Electrolytic Capacitors RoHS

SMD,D6.3xL8mmROHS3 CompliantActive

Manufacturer: KEMET
Manufacturer part #: EDT476M016S9HAA
Store part #: C3829753
Package / case: SMD,D6.3xL8mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

30 in stock

#C3829753

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹51.00	₹51.00
10+	₹49.94	₹499.40
30+	₹49.08	₹1,472.40
100+	₹48.45	₹4,845.00

Quantity (min 1)

1 × ₹51.00

₹51.00

excl. GST

₹60.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

EDT476M016S9HAA

₹51.00 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 16V
Capacitance: 47uF
Lifetime: 1000hrs@125℃
Ripple Current: 70mA@120Hz
Polarity type: Polarized
Operating Temperature: -40℃~+125℃
Height - Seated (Max): 8mm
Diameter: 6.3mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.489 g

Overview

KEMET EDT aluminum electrolytic SMT capacitors are designed for applications requiring high operating temperatures up to 125°C and low-profile vertical chip configurations.

Applications

Typical applications include automated assembly and reflow soldering.

Key features

Surface-mount pin terminals
Low-profile vertical chip
Operating temperature range: -10°C ~ +125°C
Operational life: 1000–2000 hours at 125°C
