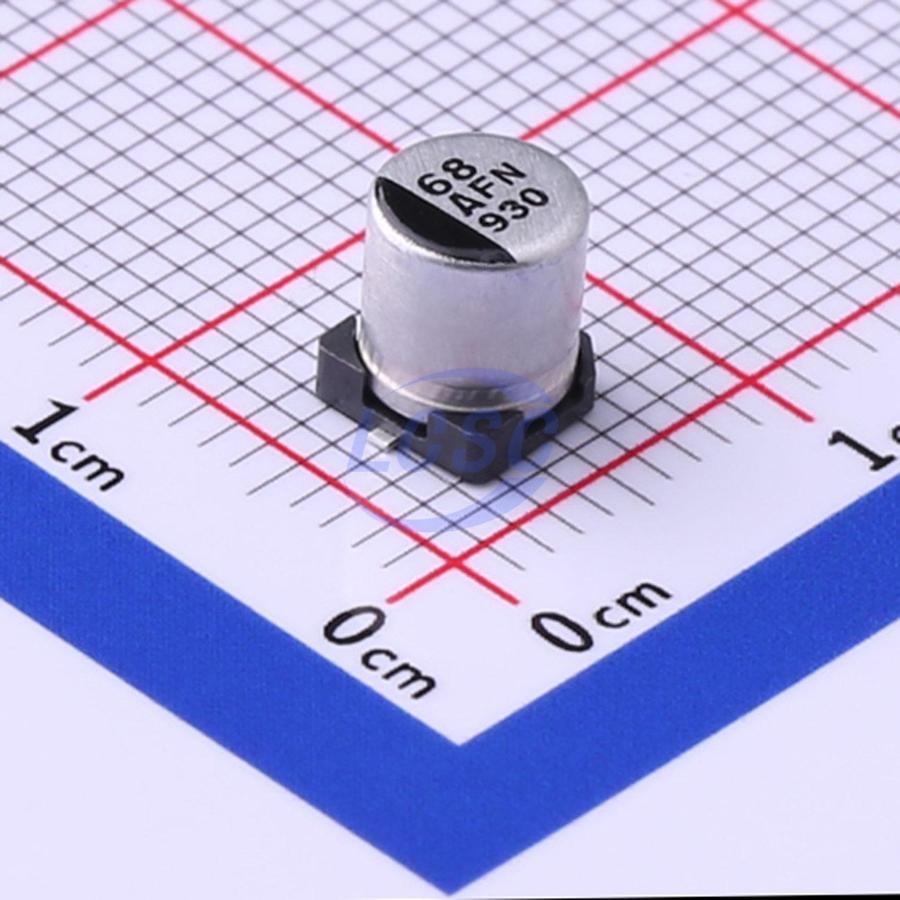

PANASONIC

EEEFN1A680R

68uF ±20% 10V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D5xL5.8mmROHS3 CompliantActive

CAP ALUM 68uF ±20% 10V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1A680R
Store part #: C494791
Package / case: SMD,D5xL5.8mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

255 in stock

#C494791

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹31.10	₹155.50
50+	₹24.55	₹1,227.50
150+	₹21.75	₹3,262.50
1,000+	₹18.24	₹18,240.00
2,000+	₹16.68	₹33,360.00
5,000+	₹15.74	₹78,700.00

Quantity (min 5, multiples of 5)

5 × ₹31.10

₹155.50

excl. GST

₹183.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

EEEFN1A680R

₹155.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 10V
Lifetime: 2000hrs@105℃
Capacitance: 68uF
Ripple Current: 160mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 700mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.33 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
EEEFT1A680AR#C413516PANASONIC · SMD,D4xL5.8mm	PANASONIC	SMD,D4xL5.8mm	On request	₹20.07 · 0 in stock	View
UUD1A680MCL1GS#C2163269Nichicon · SMD,D6.3xL5.8mm	Nichicon	SMD,D6.3xL5.8mm	On request	₹9.70 · 0 in stock	View
UCD1A680MCL1GS#C2165242Nichicon · SMD,D6.3xL5.8mm	Nichicon	SMD,D6.3xL5.8mm	On request	₹13.42 · 0 in stock	View
UCM1A680MCL1GS#C2163418Nichicon · SMD,D4xL5.8mm	Nichicon	SMD,D4xL5.8mm	On request	₹8.84 · 0 in stock	View
UWD1A680MCL1GS#C6008050Nichicon · SMD,D6.3xL5.8mm	Nichicon	SMD,D6.3xL5.8mm	On request	₹29.99 · 0 in stock	View
